14L Bottle Water Bottling Machine 900bph

14L Bottle Water Bottling Machine

Product introduction:

14L bottle water bottling machine--- The pure water bottling machine was used for filling drinking water, mineral water, pure water etc into 14L big bottle and seal it. The 14L bottle rinser filler capper monoblock for pure water was combined with bottle washing,pure water filling and 14L bottle capping machine into one body.

1. In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer, washing solution can be used circularly.
2. This line equips with water spraying device to sterilize capes of bottles in order to ensure those caps are aseptic and healthy, also this line can automatically carry out barrel feeding, washing, sterilizing, filling, capping, counting and products discharging.
3. It is a new kind of barreled water auto-producting line, which integrates mechanism, electricity and pneumatics technologies together.

Features of 14L bottle water bottling machine:

1. Installed manual regulating valve on external washing part

2. Installed pressure gage, sampling pipe for lye and antiseptic liquid on the washing pipe. To make sure the concentration of lye and antiseptic liquid.

3. There is liquid level display and float ball on every water tank, to protect water pump.

4. Back-flow inlet and add liquid tank is at the outside of washing machine and installed double filter. It can contain water-in tank to wash.

5. Automatic bottle feed count, less than 8 pcs bottle, not feed. If out of bottle is not good, it will alarm.

Technical parameter:

Model: QGF900

Filling head:6

Barrel size: 270×490mm

Bottle volume: 14L,19L , 25L

Capacity: 800-900B/h

Gas pressure: 0.6Mpa

Gas consumption: 1.5m3/min

Product details pictures:

Automatic 14L bottle feeding plant

14L bottle washing machine

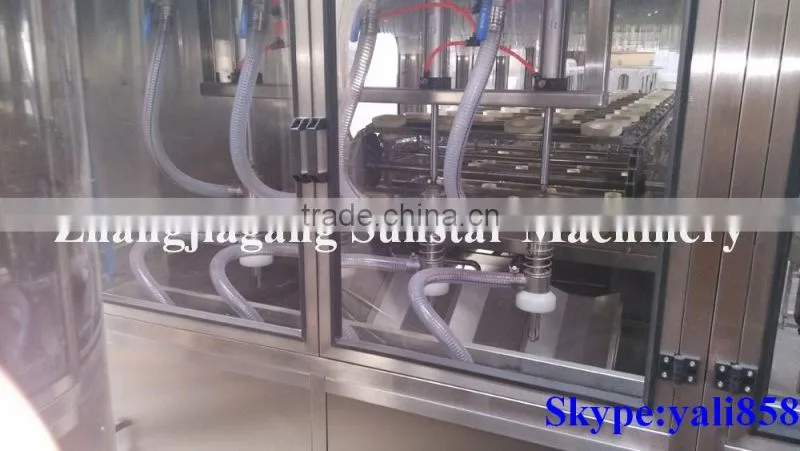

14L bottle water bottling machine

14L bottle capping machine

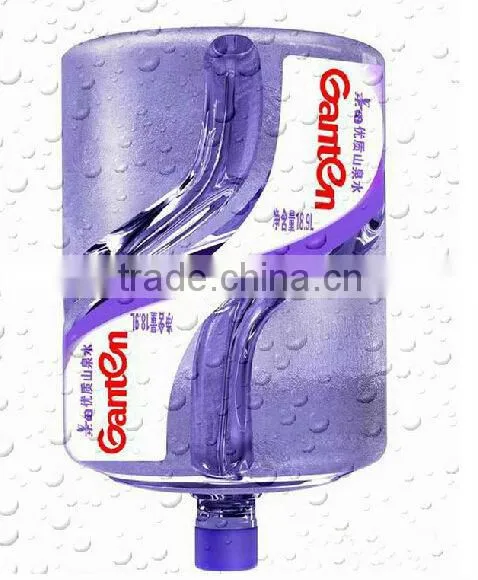

Bottled 14L water (end product)

 Product name:

14L bottle water bottling machine, water bottling machine, 14L bottle bottling machine, 14L  bottle washing machine, 14L bottle capping machine, bottling machine

The component of 14L bottle water bottling machine :

...
