HY850 Bobcat mini digger for sale
1482mm height
Engine : 60HP diesel engine
Pump : Imported American Sauer pump
with closed cab , warning light
low height body-- Bobcat mini digger
The height of HY850 Bobcat mini digger is only 1482mm . This just right height allow the machine go into all kinds of low-height areas to work. HY850 Bobcat mini digger is a professional machine in low height working environment.
Easy maintenance --HY850 Bobcat mini digger
The machine’s cab can be opened forward and makes machine’s parts each reach, save time and improve efficiency.
Main specification of HY850 Bobcat mini digger
Model: Bobcat mini digger for sale |
HY850 |
|||
Diesel Engine |
Model |
498BPG Engine |
||
Rated power(kw) |
45KW(61.2HP) |
|||
Rotating speed(rpm) |
2500 |
|||
Noise |
In drivers cab(dB) |
≤92 |
||
Out of drivers cab(dB) |
≤106 |
|||
Hydraulic System |
Hydraulic pressure(Mpa) |
14.2 |
||
Cycle time(s) |
Raise |
5.56 |
||
Dump |
2.16 |
|||
Lower |
5.03 |
|||
Capability Parameter |
Operating load(kg) |
850 |
||
Bucket capacity(m3) |
0.39 |
|||
Tipping load(kg) |
1550 |
|||
Bucket breakout force (KN) |
1760 |
|||
Max. lifting power(KN) |
1934 |
|||
Speed (km/h) |
0-14.3 |
|||
Operating weight (kg) |
2840 |
|||
Tire |
10.0-16.5 |
|||
Model |
HY850 |
|||
Max. height (A) |
3660mm |
|||
Height of bucket connecting pin (B) |
2840mm |
|||
Dump height (C)) |
2220mm |
|||
Height to top of cab (H) |
1482mm |
|||
Overall length with bucket (L) |
3300mm |
|||
Dump distance (D) |
300mm |
|||
Overall length without bucket (J) |
2600mm |
|||
Axle distance (G) |
1044mm |
|||
Bucket width (K) |
1720mm |
|||
Wheel distance |
1385mm |
|||
Overall width to outside of tyre (W) |
1678mm |
|||
Ground clearance (F) |
120mm |
|||
Max. dump angle |
35° |
|||
Max. attachment rollback when bucket on ground |
29° |
|||
Departure angle |
16° |
|||

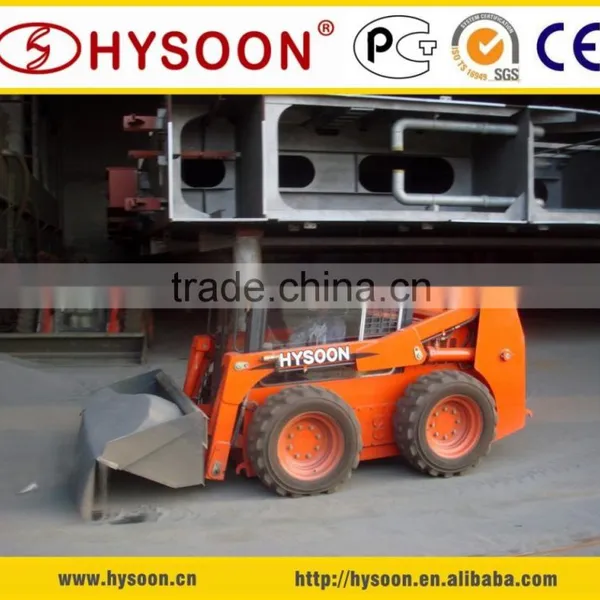

Pictures of HY850 Bobcat mini digger
We also produce the following products , please click the following pictures for more products information :
