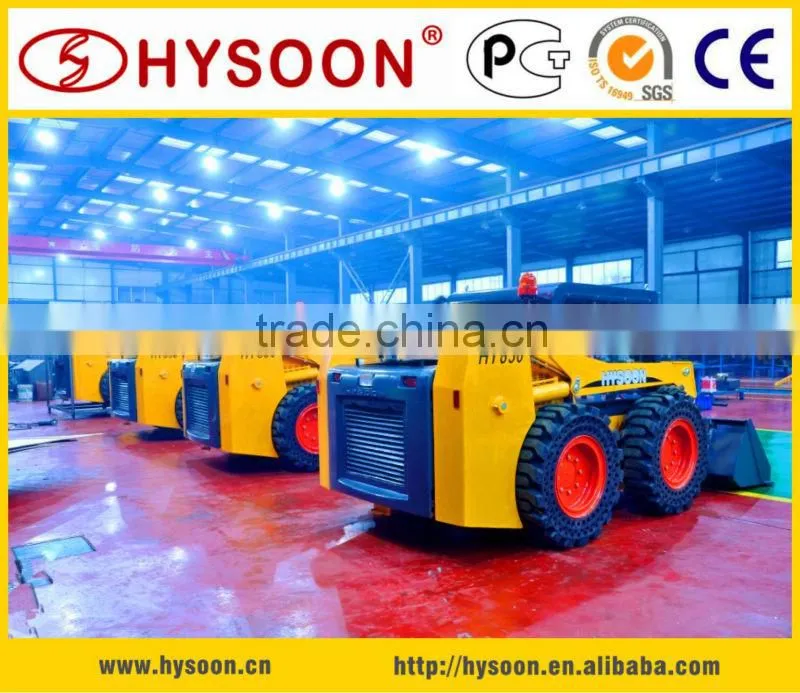

HY850 mini front end loader for sale
1482mm height of HY850
Engine : 60HP diesel engine
Pump : Imported American Sauer pump
with closed cab , warning light

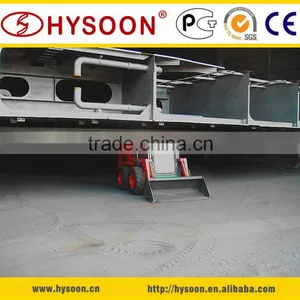

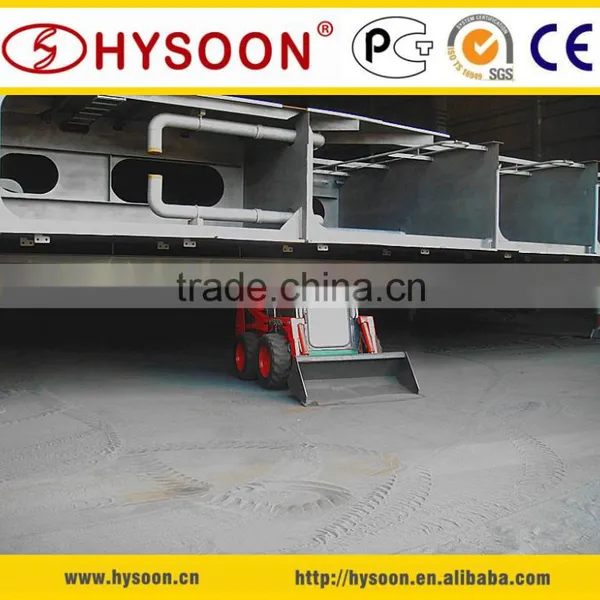

low –height body machine for HY850 mini front end loader
The height of HY850 mini front end loader is only 1482mm . This just right height allow the machine go into all kinds of low-height areas to work. HY850 mini front end loader is a professional loader in low height working environment.
Easy maintenance for HY850 mini front end loader
The machine’s cab can be opened forward and makes machine’s parts each reach, save time and improve efficiency.
Model: HY850 mini front end loader for sale |
HY850 |
|||
Diesel Engine |
Model |
498BPG Engine |
||
Rated power(kw) |
45KW(61.2HP) |
|||
Rotating speed(rpm) |
2500 |
|||
Noise |
In drivers cab(dB) |
≤92 |
||
Out of drivers cab(dB) |
≤106 |
|||
Hydraulic System |
Hydraulic pressure(Mpa) |
14.2 |
||
Cycle time(s) |
Raise |
5.56 |
||
Dump |
2.16 |
|||
Lower |
5.03 |
|||
Capability Parameter |
Operating load(kg) |
850 |
||
Bucket capacity(m3) |
0.39 |
|||
Tipping load(kg) |
1550 |
|||
Bucket breakout force (KN) |
1760 |
|||
Max. lifting power(KN) |
1934 |
|||
Speed (km/h) |
0-14.3 |
|||
Operating weight (kg) |
2840 |
|||
Tire |
10.0-16.5 |
|||

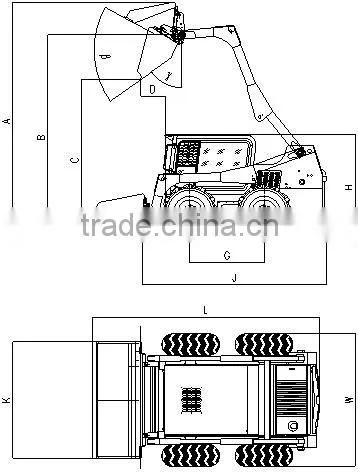

Model |
HY850 |
|||
Max. height (A) |
3660mm |
|||
Height of bucket connecting pin (B) |
2840mm |
|||
Dump height (C)) |
2220mm |
|||
Height to top of cab (H) |
1482mm |
|||
Overall length with bucket (L) |
3300mm |
|||
Dump distance (D) |
300mm |
|||
Overall length without bucket (J) |
2600mm |
|||
Axle distance (G) |
1044mm |
|||
Bucket width (K) |
1720mm |
|||
Wheel distance |
1385mm |
|||
Overall width to outside of tyre (W) |
1678mm |
|||
Ground clearance (F) |
120mm |
|||
Max. dump angle |
35° |
|||
Max. attachment rollback when bucket on ground |
29° |
|||
Departure angle |
16° |
|||
