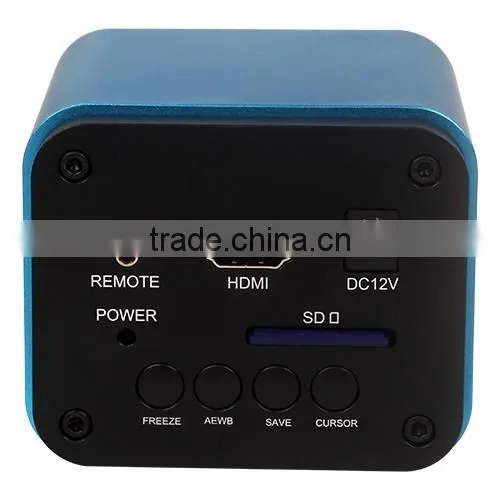

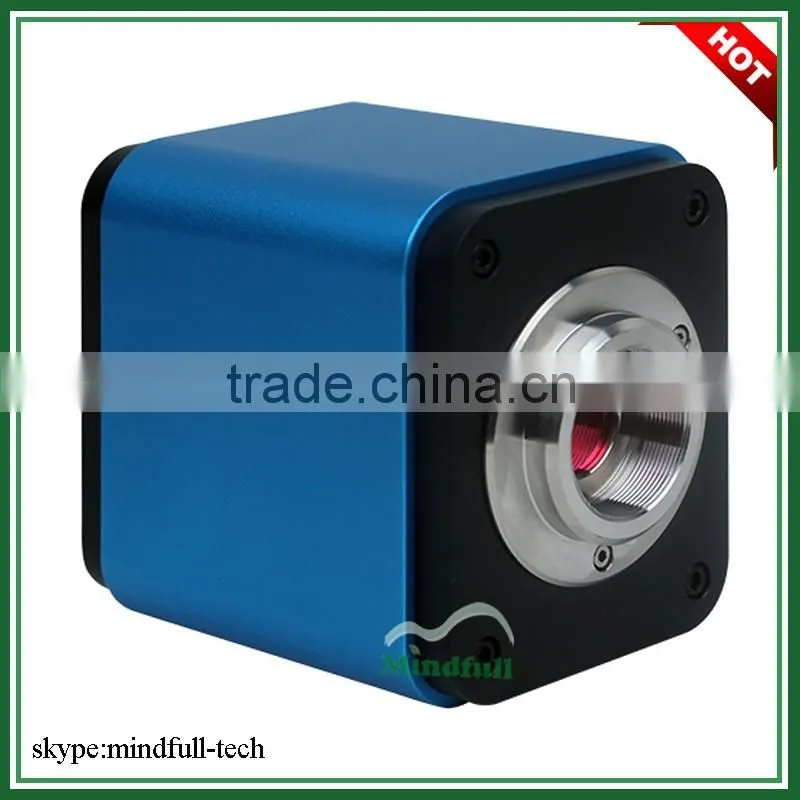

HDMI COMS Microscope Camera
Model:MF720PHA
1.Through the standard HDMI interface to stream the video to displayer or HDTV. Easy connecting to other equipment on the production line with the C-mount optical interface.
2.High-resolution and high frame rate, perfect color reproduction, highly integrated and compact, low failure rate and stable performance.
3.1280 × 720 (720P) resolution to match the current high-definition displayer on the market.
4.Supporting various OSD cursors which can be toggled On/Off (functions shift as users press the button). The OSDs including: scale, double horizontal line, double vertical line, double cross line, Tri-cross line.
5.Embedded XCamView based on the Qt platform. The camera characteristic can be controlled by the mouse. The other basic processing and choosing can also be realized by the XCamView.
6.For the above characteristic and technical features, which utmost meet various applications and widely apply to industrial inspection, education and research, materials analysis, precision measurement, medical analyses etc.
Main Parameter
| Sensor & Size(mm) | MT9P031(C), 1/2.5" (5.70x4.28) |
| Pixel(μm) | 2.2*2.2 |
| G Responsivity/Dynamic range/SNRmax | 1.4 V/lux-sec/70.1dB/38.1dB |
| FPS/Resolution | 30@1080x720 |
| Binning | 1*1 |
| Exposure | 0.21ms~33ms |
| Spectral Range | 380-650nm (with IR-filter) |
| White Balance | Auto / Manual |
| Color Rendering Technique | Ultra Fine Color Engine |
We have many other types, if you want to learn more about this product, please contact with me to get the latest catalog!! We can meet your needs!
My Information:
Skype:mindfull-tech
Whatsapp:+8613625710421
1.Mindfull is a professional of microscope camera exporter, which is producing and exporting camera over 15 years
2.We have the certification of ISO 9001:2008 quality management system, also the certification of ISO14001:2004 environment management systerm. We can assure you of good quality and best price.We can offer Test Report you need!
3. Strong production capacity: All the items are produced by its own production line
4.OEM /ODM is available: accepted,we can produce any your design.
5.Good Service: we treat client’s as friend.
6.Quick lead time: we are dedicated to providing the quickest times and work very hard to ensure that all of your deadlines are met.
Company Information
Container Loading
FAQ for Reference:
1.Q. Can we print our own logo?
A. Yes,we offer OEM service.
2.Q. Do you provide sample?
A. Yes,we provide sample and the sample cost will be reback to you when confirm the order
3.Q. What is the payment ?
A. Usually 30% T/T Deposit and the balance before the shippment
4.Q.How can i contact you?
A.You can enter you detail questions or inquiries at below table,then just click "send".
If you have any urgent questions,you can click the TM direct contact me.
5.Q. How is your quality control?
(1) confirm everything with our client before moving to sourcing and production;
(2) check all the materials to ensure they are correct;
(3) employ experienced workers and give them proper training;
(4) inspection throughout the whole production process;
(5) final inspection before loading.
6.Q.Can you design for us?
Yes. We have a professional team having rich experience in trophy design and manufacturing. Just tell us your ideas and we will help to carry out your ideas into perfect trophy.
7:Q.When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
Please Contact With Me ASAP To Get Best Price,send me email at the bottom of this page, I will reply you today!!!
