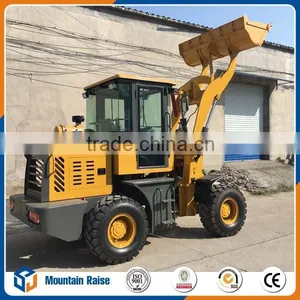

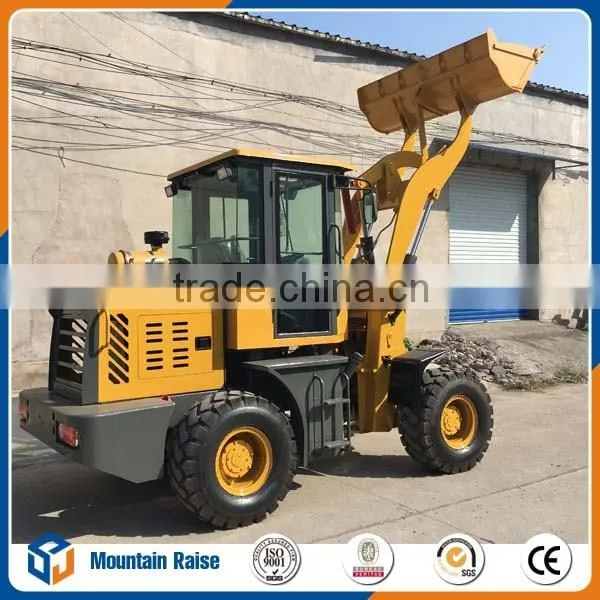

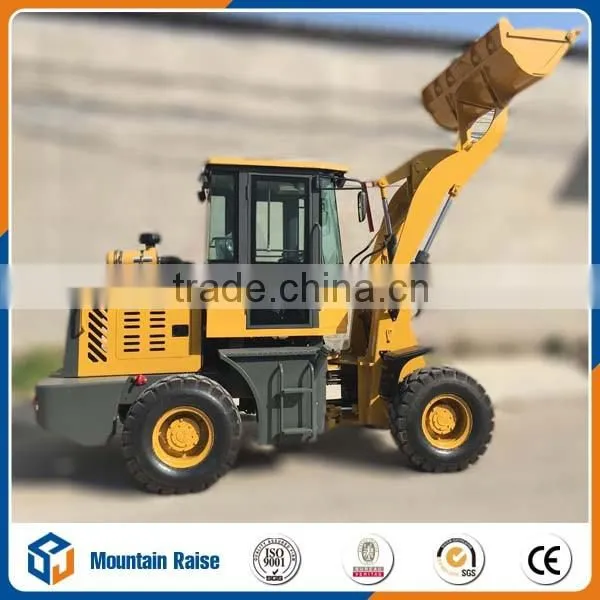

rc hydraulic articulated mini wheel loader zl-926 with price list

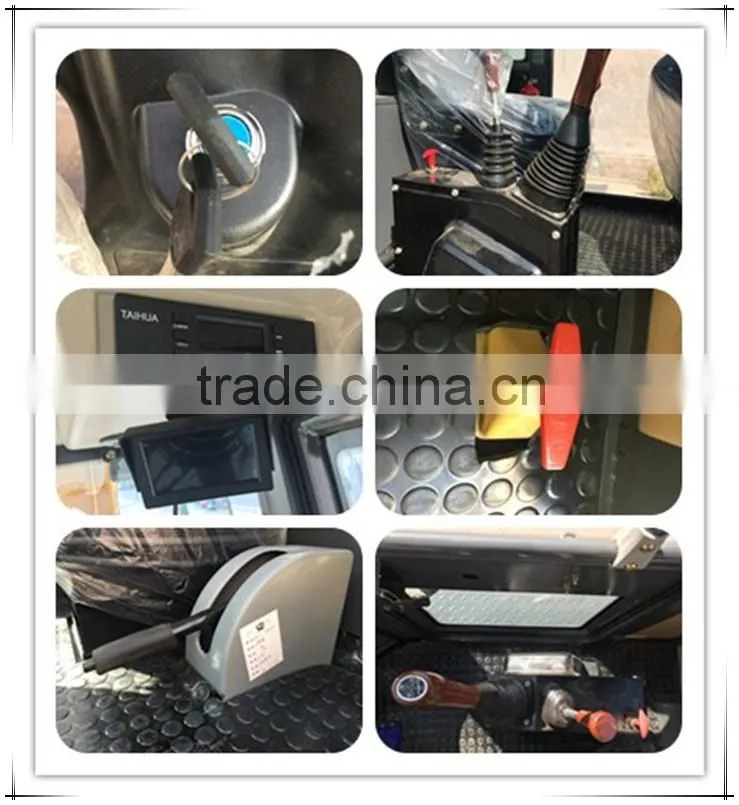

>>>>>>>>>>>>>>>> Cabin Details>>>>>>>>>>>>>
Luxury Cabin, with skylight and rear view camara, open your view.
Hydraulic Joystick control, Easy operating.
Upgrade the sound insulation, reduce the noise in the Cabin
Big exported seat provide more comfortable for the driver
Electrophoretic paint , no rust in whole life

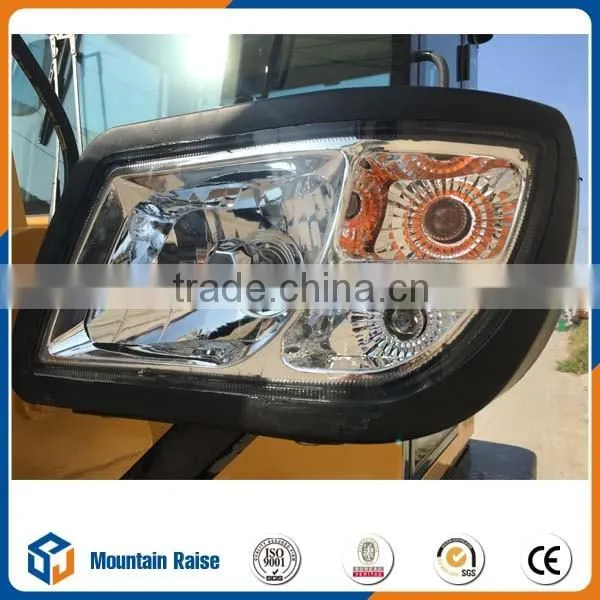

>>>>>>>>>>>>>>>LED LAMP>>>>>>>>>>>>>
LED Lamp for standard configuration

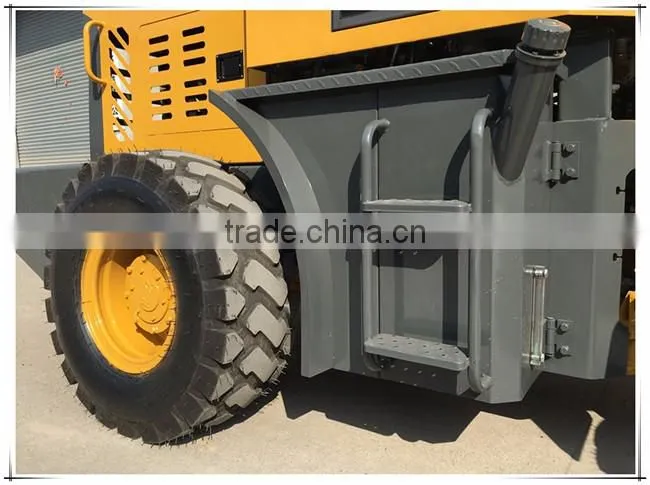

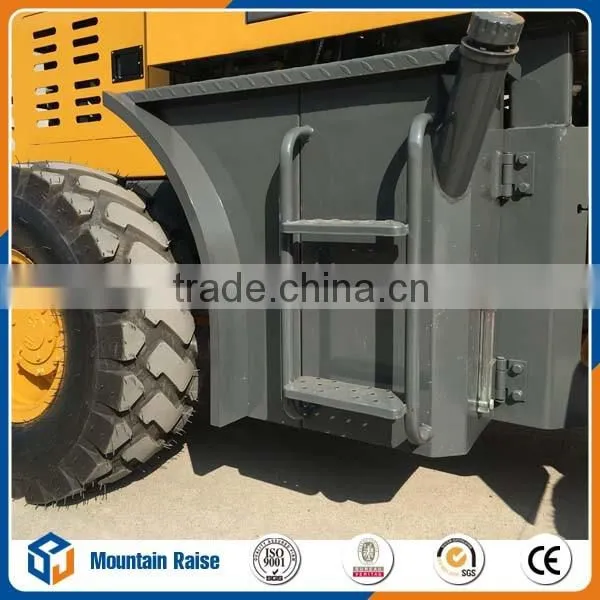

<<<<<<<<<<<<<<<< Oil Tank <<<<<<<<<<<<<<<<
Split type structure for the tank
Oil cool fast
Easy fill the fuel

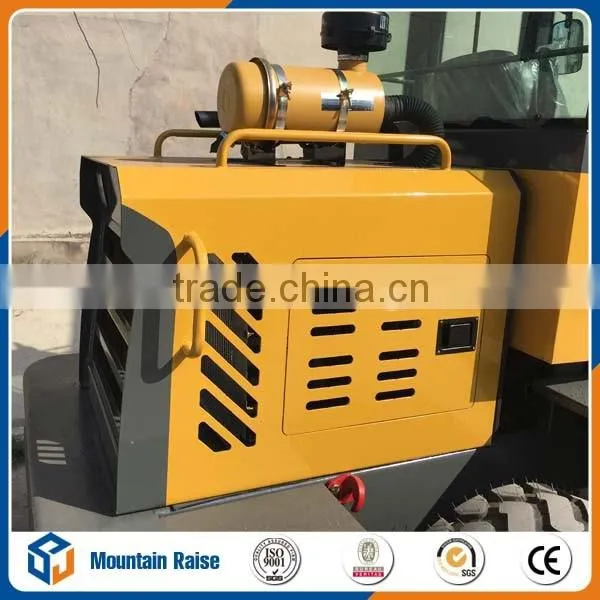

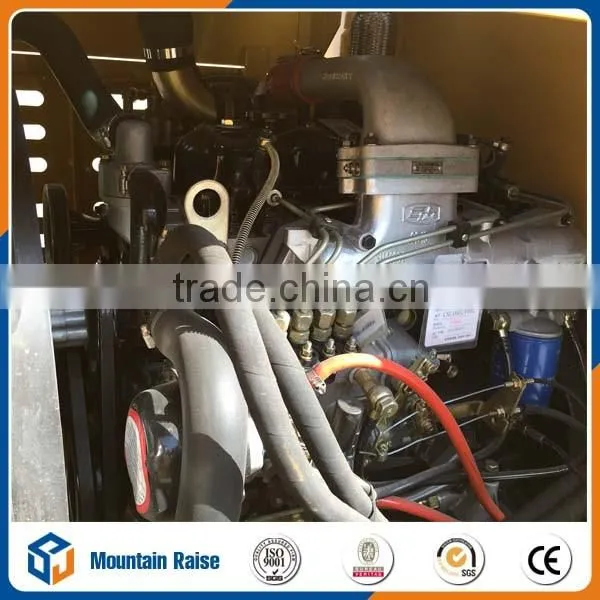

<<<<<<<<<<< 55KW Engine, more powered >>>>>>>>>>>
55kw enige
More powered more than gengeral 1.5 ton loader
| Parameters | Rated Load Capacity | 1500kg |
| Operating Weight | 4500kg | |
| Bucket Capacity | 0.6m3 | |
| Lifting Height | 4210mm | |
| Dumping Height | 3300mm | |
| Dimension L*W*H(mm) | 5545x1880x2740mm | |
| Engine | Model | YUNNEI27GBZ |
| Rated Power | 55kw | |
| Max. Torque | 256Nm | |
| Operating Specifications | Max.Drawbar Pull | 47kN |
| Max. Breakout Force | 48kN | |
| Hydraulic System Pressure | 16 MPa | |
| Hydraulic Cycle Times | 7.6 s | |
| Steering system | Steering Angle Left/Right | 36º±1º |
| Minimum Turing Radius (Over Rear Tire) | 3850 mm | |
| Minimum Turing Radius (Over Bucket ) | 4100mm | |
| Transmission | Type | Countershaft power shift |
| Speed Gears | F2/R2 | |
| Axle | Brand | Bei Lian |
| Front Axle | Fixed with calipers | |
| Rear Axle | Fixed with Osc.frame and calipers | |
| Brake System | Service Brake | Single circuit,oil brake |
| Parking Brake | Drum-type shoe brake,spring applied &air released | |
| Tires | Size | 23.5-16 |
| Type | As for your request |
Multifunction:wheel loader can with different attachments for various working needs.
1> Auto robot welding
2> Advance machining center
3> two advanced production line
4> E-coating for Cabin and engine hood
5> Complete 4 hours test for machine before shippment
6> more than 1000 workers, 100 technical engineer and process engineer
3units in 1*40HQ container, triangle wood10mm wire fixed.
Within 7 days to belivery after upon receive of the deposit.
--- commnon easy-damaged parts to be delivered with the machine togother as the below
--- Warranty 1 year (12 months), free spare parts for your machine during warranty.
---we have parts warehouse to ensure enough spare parts for you in the machine
whole life.
