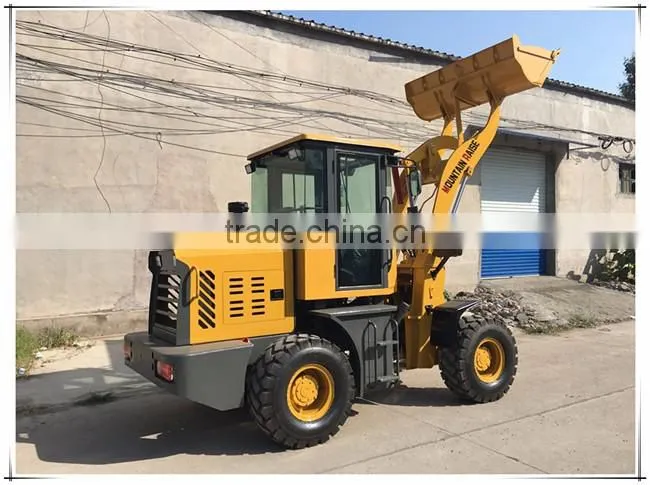

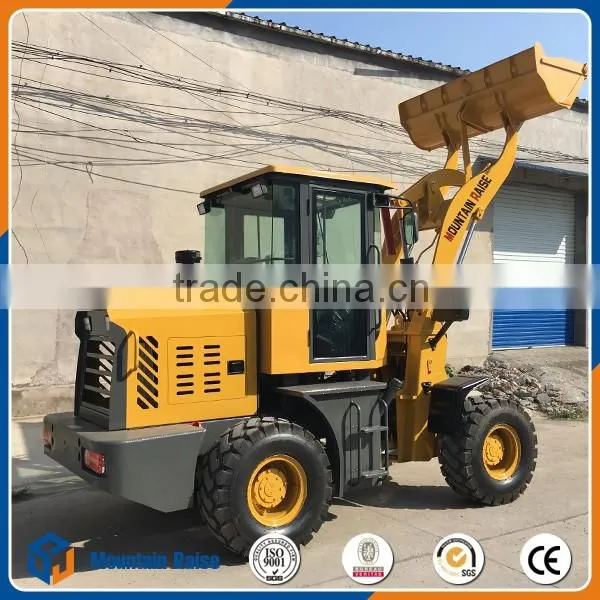

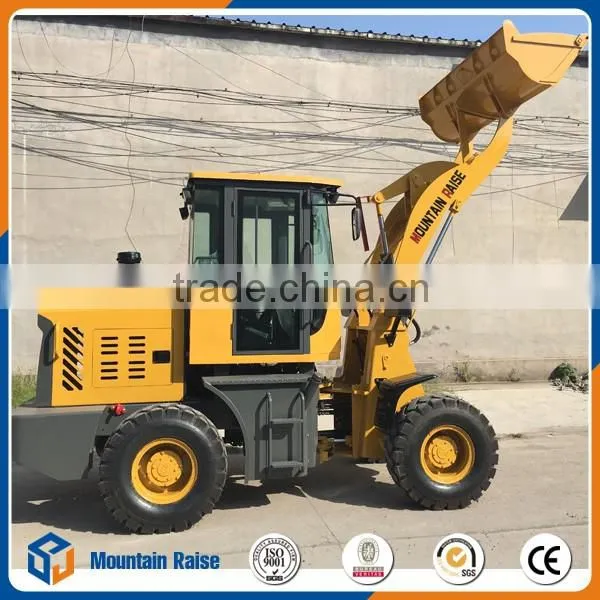

Chinese Agricultural Machinery 1.5ton Mini Loader 926s Wheel Loader.
1. Standard Equipments | ||
1). |
YUNNEI 55kw engine, 4 cylinder |
|
2). |
4 Wheel loader |
|
3). |
23.5-16 standard tires |
|
4). |
0.6m3 Bucket capacity |
|
5). |
CE, TUV, ISO Certification |
|
6). |
China Factory Direct Sale to Customers |
|
7). |
More Than 20 Kinds Of Durable ,Safe and Effective Attachments Suitable For Loaders. |
|
2. Advantages of our wheel loaders | ||
FRAME |
Adopt widen and heighten frame,it can protect the transmission shaft and improve the stability of the whole body. |
|
Engine hood |
Our wheel loaders use total iron rear hood and adopting electrophoresis to deal with the iron before coating with lacquer |
|
Cabin |
Of course the cabin has a dormer and rear view camera to broaden user's view. |
|
Tyres |
16 P.R high-pressure tyres can stand great pressure and extend the service life. |
|
Drive system |
CTV of our loader makes drive easily. |
|
Transmission |
With full hydraulic system making easy operating |
|
Picture Show

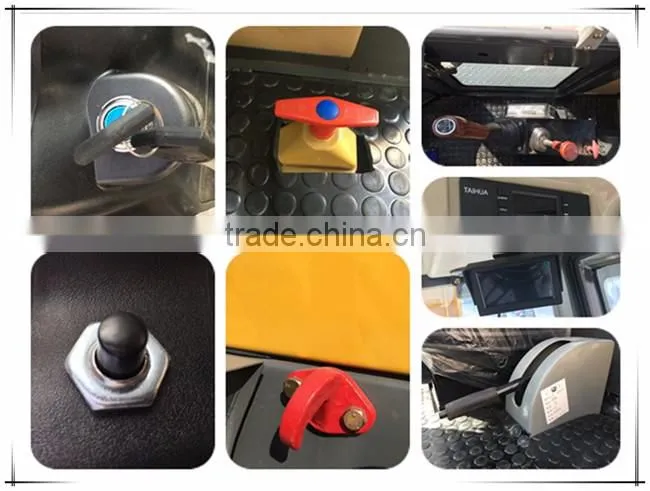

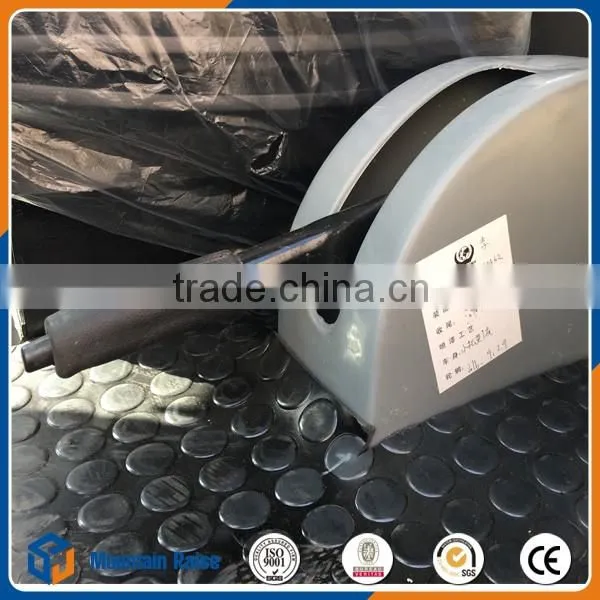

Cabin details
New Design and Comfortable Roomy Space Nice view for driver,complete equipments to meet drivers requirements!

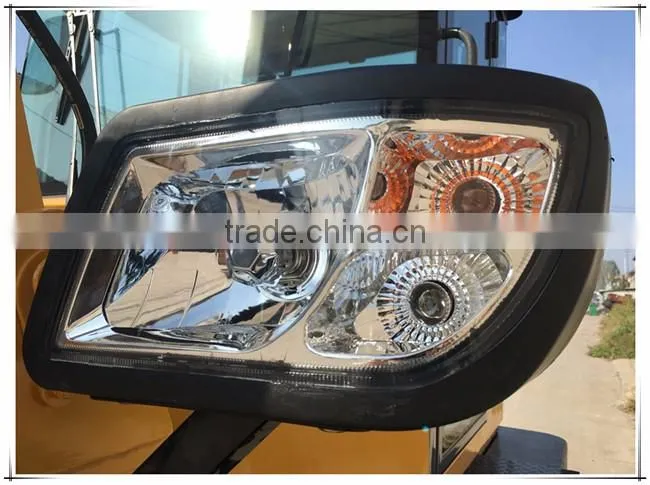

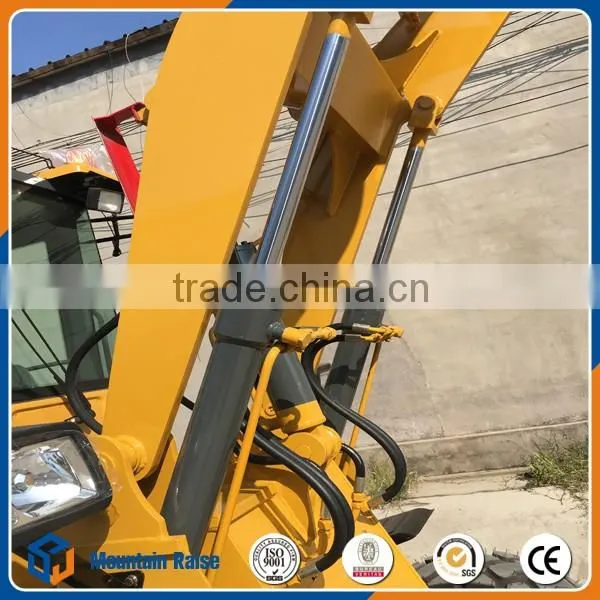

The Lamp

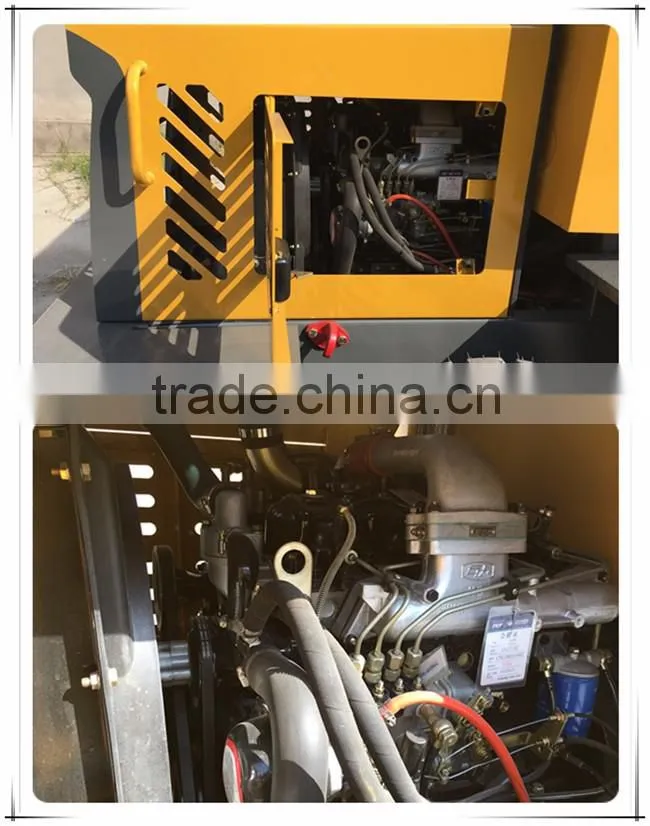

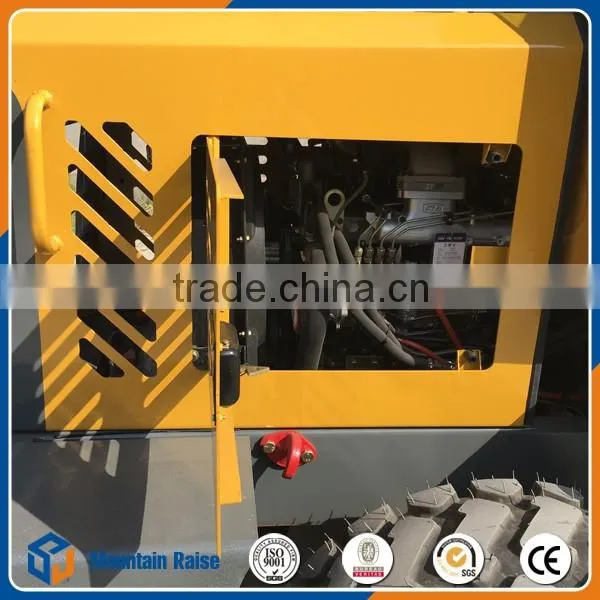

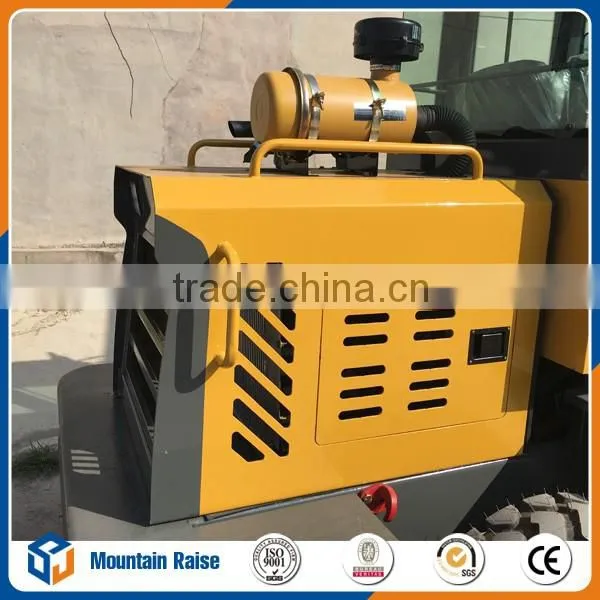

The engine
With High input ,high torque, low fuel consumption and high-power engine
Main Specifications
| Main Parameters | Rated Load Capacity | 1500kg |
| Operating Weight | 4500kg | |
| Bucket Capacity | 0.6m3 | |
| Lifting Height | 4210mm | |
| Dumping Height | 3300mm | |
| Dimension L*W*H(mm) | 5545x1880x2740mm | |
| Engine | Model | YUNNEI27GBZ |
| Rated Power | 55kw | |
| Max. Torque | 256Nm | |
| Operating Specifications | Max.Drawbar Pull | 47kN |
| Max. Breakout Force | 48kN | |
| Hydraulic System Pressure | 16 MPa | |
| Hydraulic Cycle Times | 7.6 s | |
| Steering system | Steering Angle Left/Right | 36º±1º |
| Minimum Turing Radius (Over Rear Tire) | 3850 mm | |
| Minimum Turing Radius (Over Bucket ) | 4100mm | |
| Transmission | Type | Countershaft power shift |
| Speed Gears | F2/R2 | |
| Axle | Brand | Bei Lian |
| Front Axle | Fixed with calipers | |
| Rear Axle | Fixed with Osc.frame and calipers | |
| Brake System | Service Brake | Single circuit,oil brake |
| Parking Brake | Drum-type shoe brake,spring applied &air released | |
| Tires | Size | 23.5-16 |
| Type | As for your request |

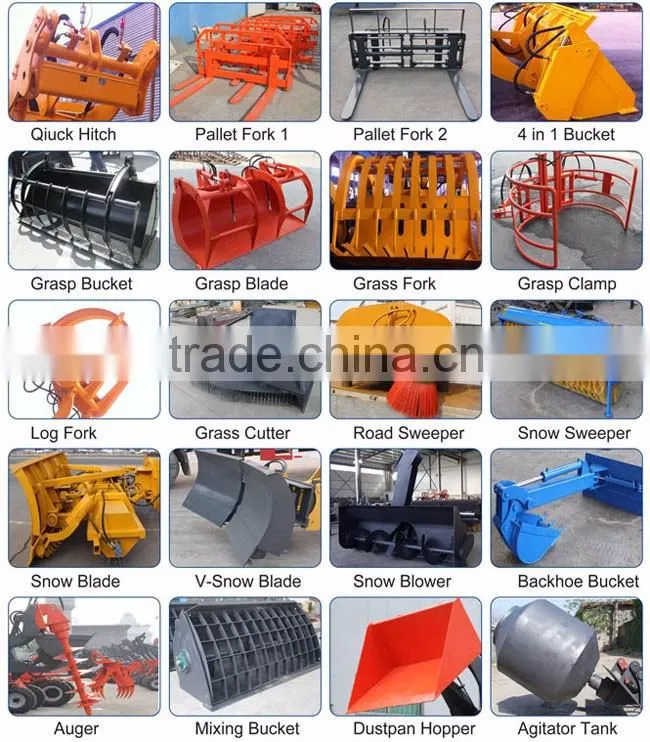

Attachments

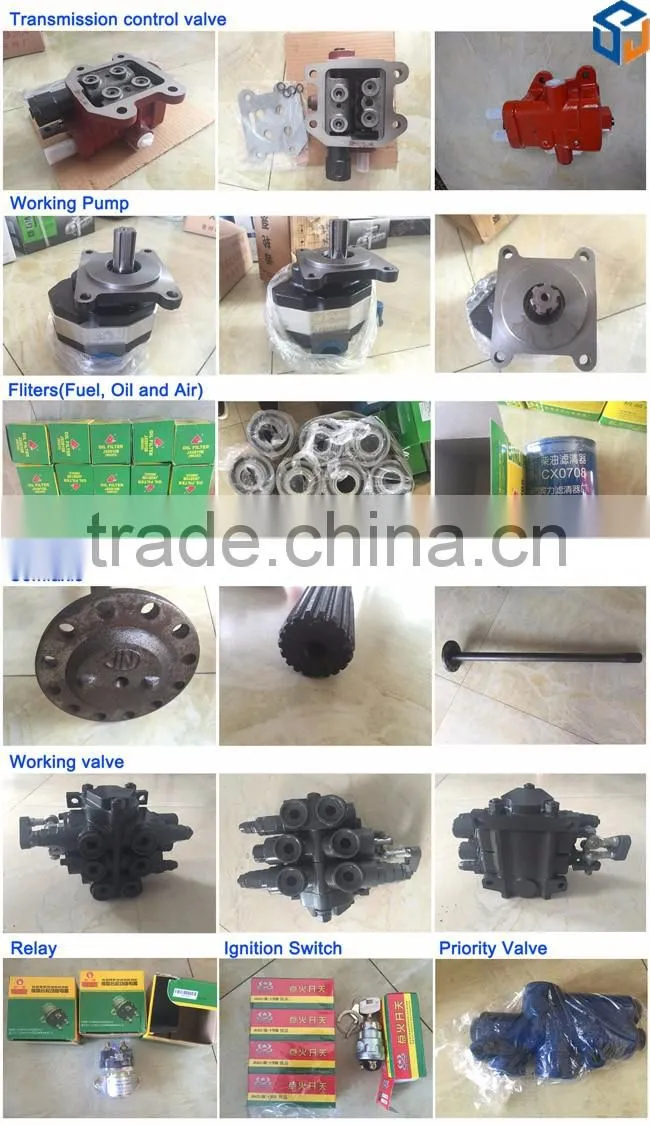

Spare parts
>> Please no hesitate to contact me if you have after-service problems of the spare parts.
>> We guarantee that your request will be handled quickly and appropriately.
>> Please do not worry about you can't buy the same spare parts.
>> We can send you the spare parts by plane if you have a service problem under the warranty.
>> Of course many spare parts will be gifted for you
Delivery Time: 3 working days after the order confirmed.

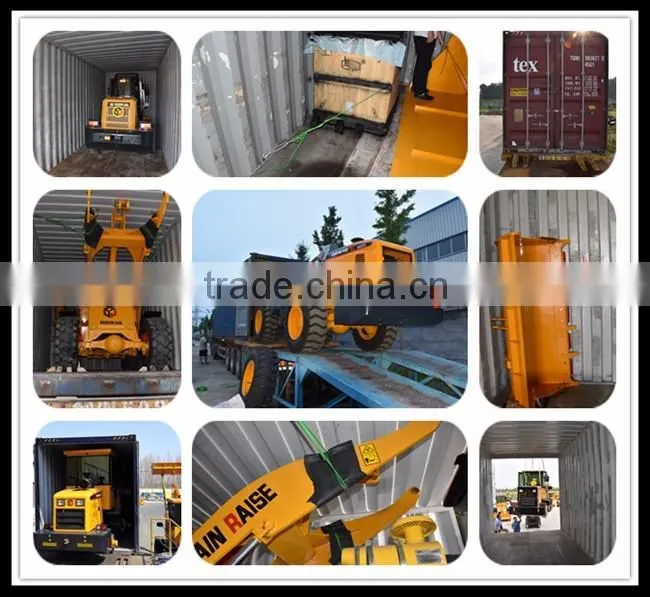

Packaging: Packing in 20'GP, remove the tires
Packing in 40'HC,remove the cabin or tires
Shandong Mountain Raise Heavy Industry Machinery Co., Ltd
> We are the Factory selling ten series wheel loaders, forkilifts, excavator and backhoe loader.
> The company's sales and service network throughout the whole country 26 provinces, municipalities and autonomous regions , and export to of Belguim, Germany,Britain, France, the Netherlands, Finland, Syria, Sweden, Kazakhstan, South Africa, Egypt, Mexico, Australia and other European and International market.
> We try our best to meet customers requirements!
1.Why you choose us?
1)Reliable Quality: Carefully select regular manufacturers for supporting spare parts and adapting the best materials of our products.
2)Competitive Price: Concentration of mechanized production in large quantities
3)Service Team: Working 24 hours one day and professional maintenance team .
Most problems can be solved within 24 hours.
4)Fast Delivery: 10-25 working days in factory after receiving pre-payment.
2.Which payment terms can we accept?
1)T/T: 30% pre-payment, 70% balance shall be paid before delivery.
2)L/C: 100% irrevocable L/C at sight without "soft clauses" can be accepted.
3.What is the warranty of our quotation?
1500 working hours or half a year whichever comes first.
Other questions, please contact our sales managers.
