hydraulic backhoe 0.8 ton mini excavator
1.Main Features
1) Simple structure and compact design ,easy in installation and maintation.
2) Advanced world famous brand components
3) Low oil consumption, to obtain maximum efficiency
4) Wide range use: Auger, grab, hydraulic hammer, narrow bucket
2.Application

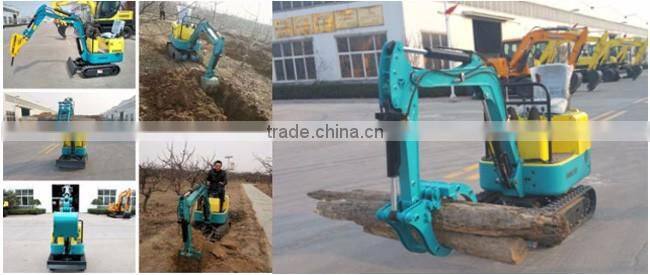

1) 0.8 ton mini excavator with compact design, it is suitable to be used for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse, digging trench
Optional working attachments available

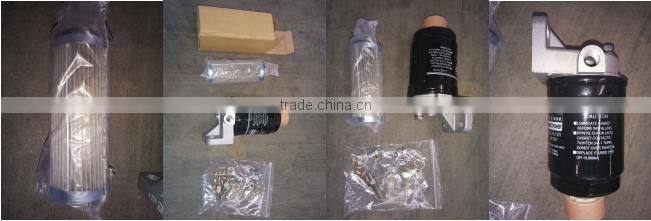

Free Spare parts
Grease fitting: 10 pieces
Ball head: 2 pieces
Hydraulic oil filter: 1 piece
Diesel pipe clamp: 2 pieces
4.Specification
Model |
08 |
Manufacturer |
SHANDONG MOUNTAIN RAISE HEAVY INDUSTRY MACHINERY CO.,LTD |
Brand |
MOUNTAIN RAISE |
Operating Weight |
800kg |
Digging bucket capacity |
0.025cbm/100kg |
Bucket width |
340mm |
Engine |
KOOP |
Rated power |
8.6 kw/3600r/min |
Displacement |
0.211 L |
Bore stroke |
70x55 |
Main pump |
CBK-F6.8 |
Displacement |
6.8ml/r |
Swing motor |
SJ-TECH (MP-1-160) |
Traveling motor |
KERSEN (OMS-2450) |
Travel speed |
1.5km/h |
MAIN DEMENSIONS | |
Overall dimension( LxWxH) |
2770x896x1490 mm |
Wheelbase |
910 mm |
Total length of track |
1230mm |
Platform ground clearance |
380 mm |
Platform back turning radius |
784 mm |
Chassis width |
896 mm |
Track width |
130 mm |
Chassis ground clearance |
132 mm |
Track height |
320 mm |
OPERATING RANGE | |
Max. Digging depth |
1650 mm |
Max. Vertical digging depth |
1375 mm |
Max. Digging height |
2610 mm |
Max. Dumping height |
1850 mm |
Max. Digging radius on ground |
2850 mm |
Min. Rotation radius |
1330 mm |
Max. Upgrade height of bulldozer blade |
345 mm |
Max. Digging depth of bulldozer blade |
255 mm |
5.Packaging &Shipping
1> PACKING: 12 units / 20f container
2> Delivery time: 7 DAYS AFTER RECEIVE FULL PAYMENT
3> Terms of payment: 30% T/T, 70% BALANCE BEFORE SHIPPING

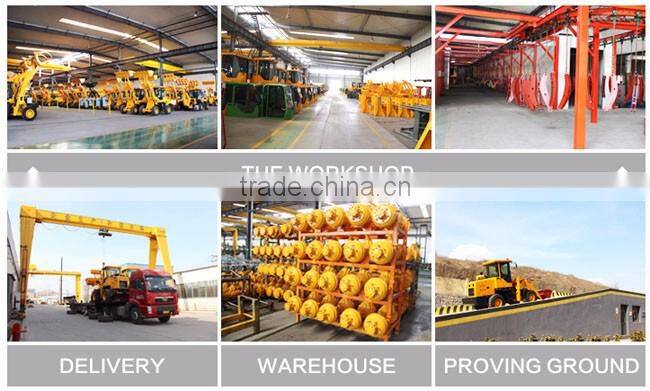

6. Factory Show
Shandong Mountain Raise Heavy Industry Machinery Co.,Ltd is specialized in wheel loaders, excavator, terrain forklift, backhoe loader and agricultural machines as a manufacturer and exporter in China, all of our products are CE and TUV certification. We have many customers in European, American, Southeast Asia countries,Suchas: Finland,Denmark,Poland,Norway,Germany,Sweden,Switzerland,Australia,America etc.
7. World Wide Customer
We have many customers in European, American, Southeast Asia countries,Such as: Finland,Denmark,Poland,Norway,Germany,Sweden,Switzerland,Australia,America etc.
8. WHY CHOOSE US
1. We are leading and professional manufacturer of wheel loader in China.
2. Independent of the design team, Professional production team, 15 Technical patents. Accept your customization.
3. High Quanlity & Reasonable Price. The accurate product positioning. Maybe we are not the lowest price, But we offer products with the highest cost performance.
4. Responsible, To guarantee delivery. Do security by alibaba TRADE ASSURANCEService.
5. 1 Year Warranty. Offer you accessories for free in 1 year warranty period.
6. Provide technical support for WHOLE life.
7.Accept OEM.
WE ARE ON LINE @24*7 HOURS, IF HAVE ANY MORE COMMNETS, PLEASE CONTACT US.
