Specifications

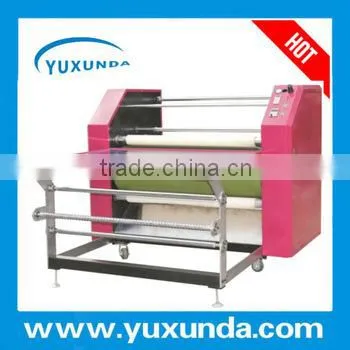

2014 upgraded roller heat press machine roller sunlimation machine roller transfer machine
2014 new roller textile heat press machine roller sunlimation machine roller transfer machine
Descriptions
•Specification
Used for |
T-shirts, Fabric and Flat Objects |
Machine color |
pink ,Customized |
Workable size |
12*37.5/170*37.5cm |
Power |
18kw, 15kw |
Voltage |
220V/380V |
Time Range |
0-999 sec |
Temperature Range |
0 -390 degrees |
Temperature Accuracy |
±0.5% |
Packing Size |
195*96*180/245*96*180cm |
Gross Weight |
34kg,44kg,54kg |
•Features
- Solid steel welded framework
- Digital Temperature & Time Control
- Full Teflon coated upper heat platen
- Slide out press bed
- 12*37.5cm
- 170*37.5cm
Advantages
1. Heat platen is casted by pour the molten aluminum around the heat loop which heat more smoothly and efficiently;
2. Full Teflon coated upper heat platen which to protect the materials of transferring;
3. High quality silicon rubber for long time use and exchangable;
4. Wide opening for easy layout and operation;
5. Full Adjustable Pressure control to catch your different sublimation needs;
6. Digital Time and Temperature controller to guarantee accurate working;
7. Slide out press bed, Convenient to place t-shirt when printing
8.U design: T-shirt can wear on the machine directly;
9. Available in different types power plugs which are suitable for more than two hundreds of different counties.
Operation Notice:
1. If the top heat plate can't open when time is up? Plealse Knob clockwise the "eccentricity pressure adjuster" until it can open.
(When adjust the eccentricity pressure, you can adjust the using pressure together with adjustment)
2. If the machine can't close? Please Knob Conter-clockwise the "eccentricity pressure adjuster" and the "using pressure adjuster " together until it can close.If still can't solve the problem, please check if the electric magnet is magnetic when open and close the heat plate. You can use a iron to check. If it is no magnetic please check the circuit. Or contact us.
3. If the pressure is not enough or too large, please adjust pressure adjuster, (+) to increase the pressure, (-) to reduce the pressure.
Our Packages
All the machines are packed into boxes with full wrapped styrofoam and there are manual instruction offered for each set of machine.
Our Warranty
• 100% independent design, 100% independent research and developing,safe and reliable in high quality
• One day high temperature of the machine steady to test quality by our QC
• One year warranty and technical support at any time
• Customized colors are acceptable for production
