WX118 1w Single-turn 20mm 49mm Long Shaft Wirewound Potentiometer

Name: WX118 1w Single-turn 20mm 49mm Long Shaft Wirewound Potentiometer
Brand: BONENS
SKU: 126970767

US$ 0.9 - 1.2 MOQ: 50 Pieces

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

BONENS

Model Number:

WX118

Tong Yue Xin Commercial And Trading Co., Ltd. (Chengdu)

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzheng Shanghai Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name BONENS

Model Number WX118

Type Rotary Potentiometer

Technology Wirewound

Resistance 100Ω~22KΩ

Resistance Tolerance ±10%

Rated Power 1W(40℃), 1W

Max. Operating Voltage 200V

Operating Temperature -55℃-+125℃

WX118 1w single-turn 20mm 49mm long shaft wirewound potentiometer

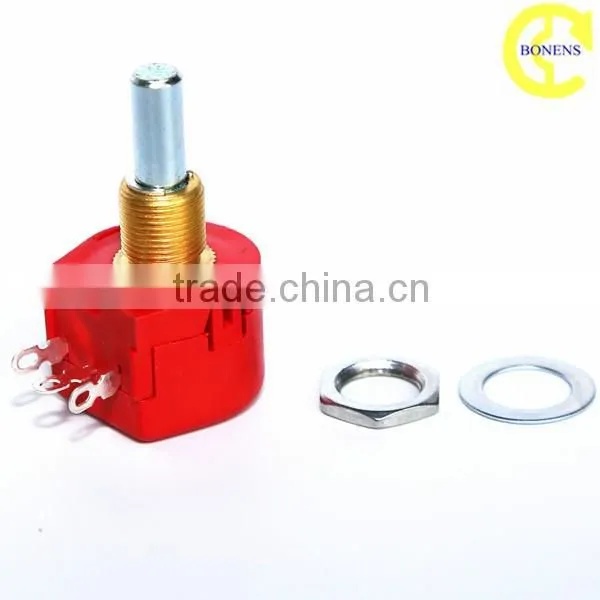

♦ Pictures:

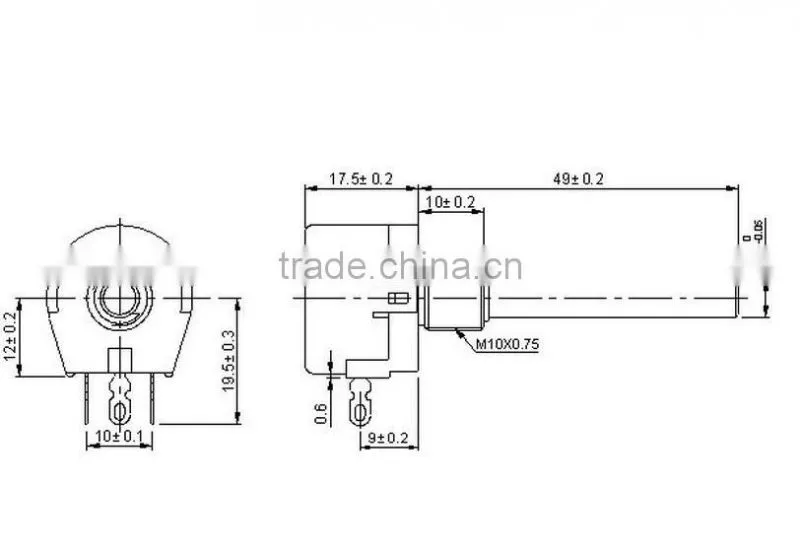

♦ Drawing:
♦ Wx118 data sheet:
Model	WX118
Standard Resist. Range	100Ω~22kΩ
Power Ratings	1W(40°C)
Maximum Working Voltage	200V
Maximum Wiper Current	100mA
Operating Temp. Range	-55°C~+125°C
Resistance Tolerance	±10%
Effective Electrical Travel	mech.285°±5° elektr.265°±5°
End Resistance	2Ωmax
Dielectric Strength (Room Conditions)	1000V AC
Insulation Resistance	1000MΩmin.(at 500V DC)
Shaft Torque	3.5~100mN.m
Rotational Life	5000cycles without discontinuity
Temperature Coefficient	±100ppm/°C

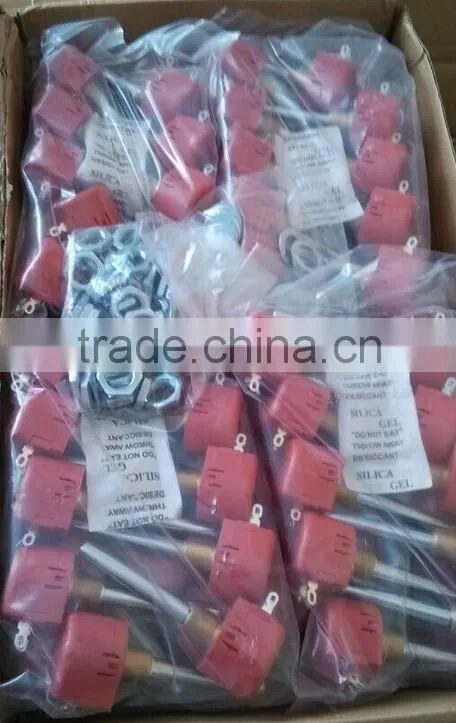

♦ Package:
♦ Other main products:

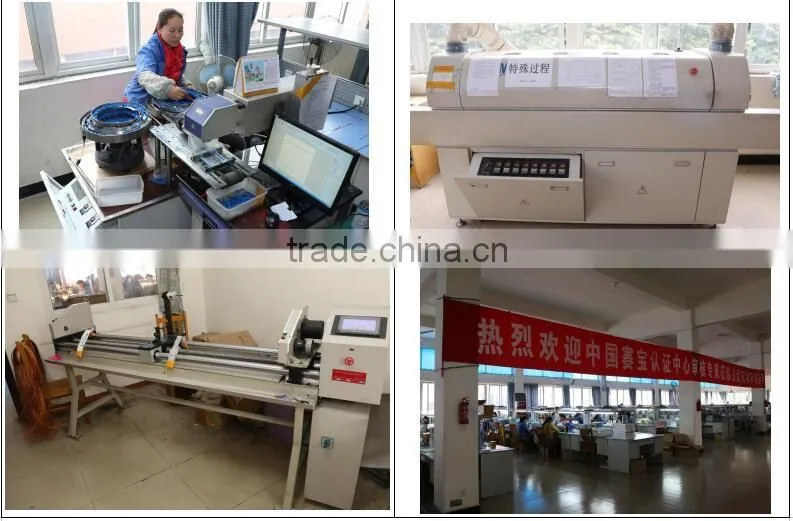

♦ Production line:

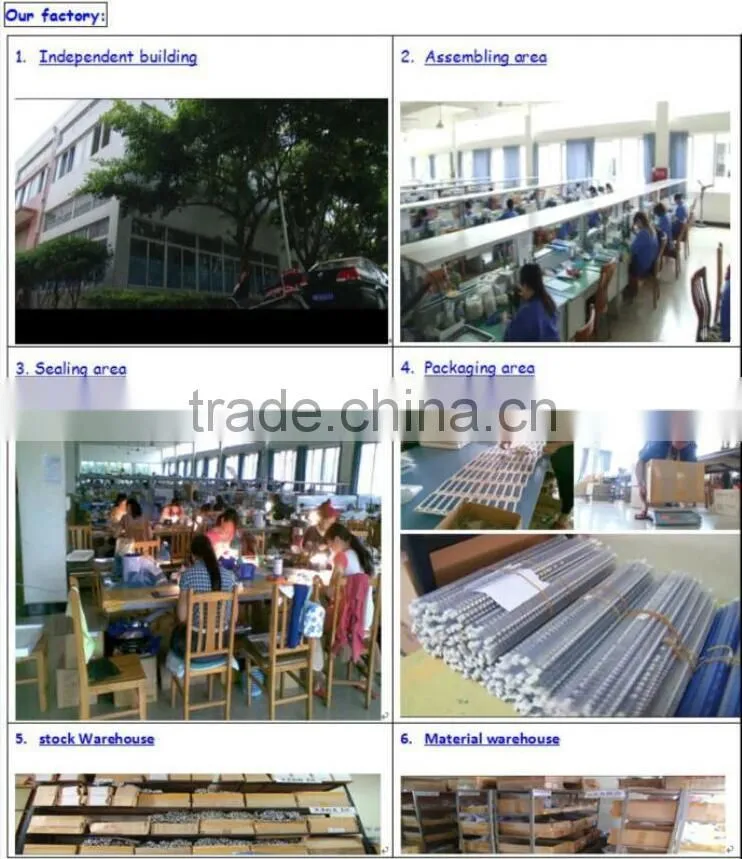

♦ Factory:
♦ Certificates:
♦ For more informations,pls contact: Atten:Gina.zhou Skype:Gina.zhou12 QQ:512351005 WhatsApp:+86-180160662198 11 years experienced factory, 8 years of Alibaba Gold Supplier
Looking forward to your inquiry..........
