3006P 0.5w multi-turns 1.5mm metal knob 200k ohm potentiometer
|
3006P Pictures:
| ||||||
|

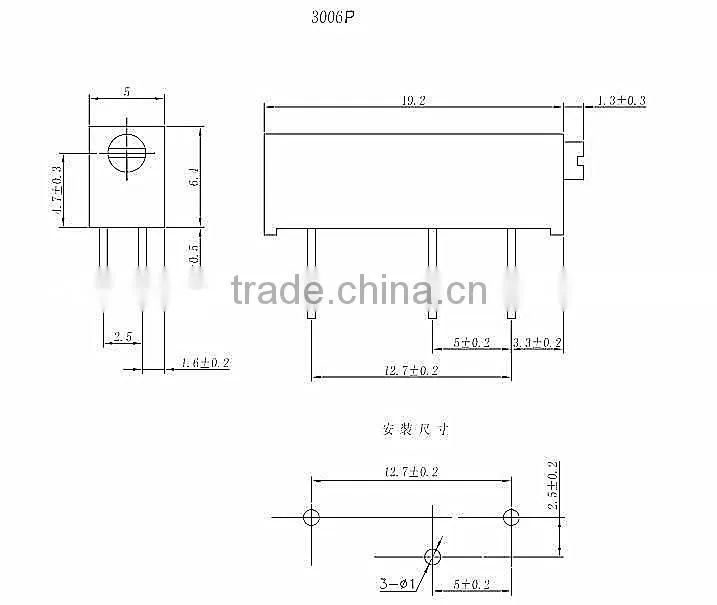

3006P Dimentions:
| ||||||
| 3006P data sheet: | ||||||
| Electrical Characteristics |
Range of nominal resistance | 10Ω~5MΩ | ||||
| Resistance tolerance | ±10% | |||||
| Terminal resistance | ≤±1%R or 2Ω |
|||||
| Contact resistance variation (CRV) | ≤±1%R or 3Ω |
|||||
| Insulation resistance | ≥ 1GΩ (100V AC) |
|||||
| Withstand voltage | 640V (DC or AC peak value) | |||||
| Effective electrical travel | ≥70% of mechanical travel |
|||||
|
Characteristics |
Rated power | 0.5W ( 300V max) | ||||
| Temperature range | -55°C~+125°C | |||||
| TCR | ±250×10-6/°C | |||||
| Collision (390m/S2, 4000 times) | ΔR≤±1%R |
|||||
| Vibration (10-500HZ, 0.75mm, 6h) |
ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS |
|||||
| Temperature variation (-55°C/30min, +125°C/30min, 5 cycles) |
ΔR≤±2%R, ΔUab/Uac≤±2%R |
|||||
| Climate category (IEC68-2-2) |
ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ |
|||||
| Electrical endurance (0.5W, 1000h) |
ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω |
|||||
| Mechanical endurance (200 cycles) |
ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω |
|||||
| Steady damp heat (IEC68-2-3, Ca, 96h) |
ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ |
|||||
| Physical Characteristics |
Total mechanical travel | 22±2 laps | ||||
| Starting torque | ≤35mN.m |
|||||
| Standard package | 25 pcs /tube(3006P) | |||||
| 20 pcs /tube(3006P-T) | ||||||
3006P Packaging:
50PCS/Tub,1000pieces/box,20000Pcs/carton.Special packaging is available.
