WI1609 Trimmer Knob Potentiometer Alternative for Vishay P16

Name: WI1609 Trimmer Knob Potentiometer Alternative for Vishay P16
Brand: BONENS
SKU: 126969099
Availability: InStock

US$ 1.5 - 1.9 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

BONENS

Model Number:

WI1609

Tong Yue Xin Commercial And Trading Co., Ltd. (Chengdu)

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzheng Shanghai Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name BONENS

Model Number WI1609

Type Trimming Potentiometer

Technology Cermet

Resistance 100Ω~2MΩ

Resistance Tolerance ±10%

Rated Power 1W(70℃), 1W

Max. Operating Voltage 500V(DC

Operating Temperature -55℃-+125℃

WI1609 trimmer Knob potentiometer alternative for Vishay P16

Product Description

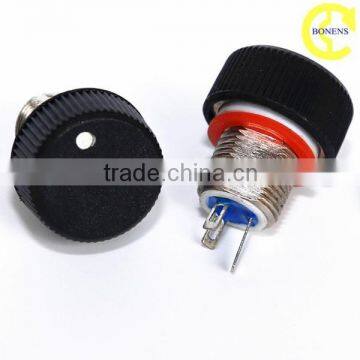

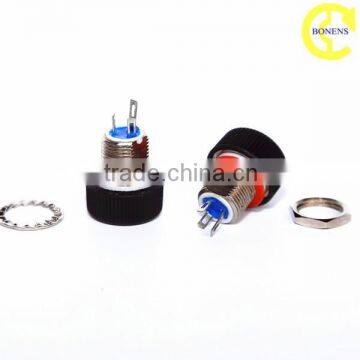

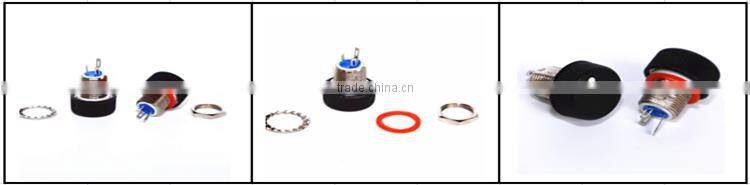

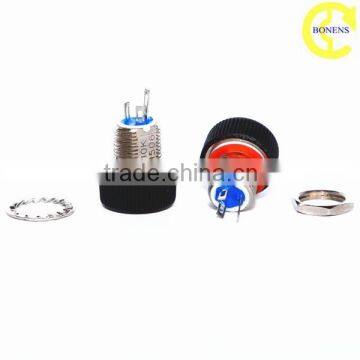

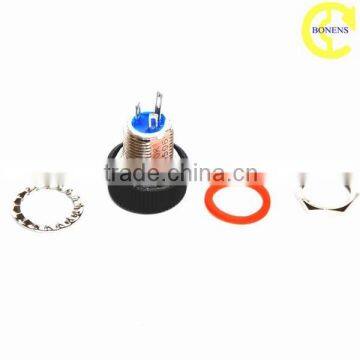

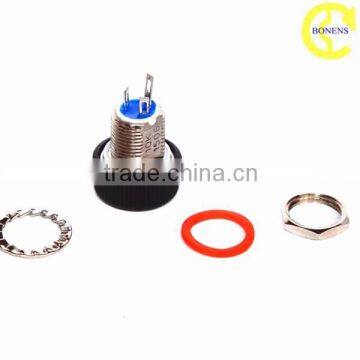

♦WI1609 Picture:

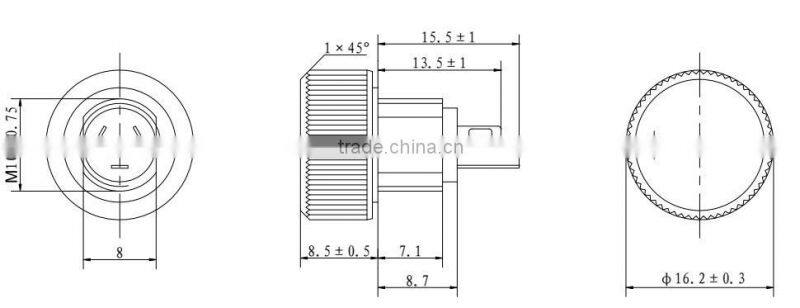

♦WI1609 Shape dimension:
♦WI1609 Specification:
Electrical Characteristics:
Standard Resistance Range			100Ω~2MΩ
Resistance Tolerance			±10% std(tighter tolerance available)
Absolute Minimum Resistance			1% or 10 ohms max.(whichever is greater)
Contact Resistance Variation			3% max
Insulation Resistance			500Vdc,1000 megohms min
Dielectric Strength			101.3 kPa 900 Vac 8.5 kPa 500 Vac
Adjustment Angle			265°nom
Environmental Characteristics:
Power Rating (200 volts max.)			1 watt (70°C) , 0 watt (125°C)
Temperature Range			-55°C to +125°C
Temperature Coefficient			±250×10-6/°C or ±100×10-6/°C
Vibration			98 m/s2, 1%ΔTR
Shock			490 m/s2, 1%ΔTR
Load Life			1,000 hours 1 watt @ 70°C (5%ΔTR)
Rotational Life			10000 cycles:(15%ΔTR; 6% ,CRV)
Physical Characteristics:
Mechanical Angle			305° nom.
Torque			(3.5~50)mN·m
Stop Strength			350 mN·m min.
