ROHS 3329H 10k Ohm Trimpot Variable Resistor

ROHS 3329H 10k Ohm Trimpot Variable Resistor thumbnail-1
ROHS 3329H 10k Ohm Trimpot Variable Resistor thumbnail-2
ROHS 3329H 10k Ohm Trimpot Variable Resistor thumbnail-3
ROHS 3329H 10k Ohm Trimpot Variable Resistor thumbnail-4
ROHS 3329H 10k Ohm Trimpot Variable Resistor thumbnail-5
ROHS 3329H 10k Ohm Trimpot Variable Resistor thumbnail-6
ROHS 3329H 10k Ohm Trimpot Variable Resistor photo-1
ROHS 3329H 10k Ohm Trimpot Variable Resistor photo-2
ROHS 3329H 10k Ohm Trimpot Variable Resistor photo-3
ROHS 3329H 10k Ohm Trimpot Variable Resistor photo-4
ROHS 3329H 10k Ohm Trimpot Variable Resistor photo-5
ROHS 3329H 10k Ohm Trimpot Variable Resistor photo-6
US$ 0.14 - 0.16 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
BONENS
Model Number:
3329H
Contact Supplier Request Quote Chat Now
Tong Yue Xin Commercial And Trading Co., Ltd. (Chengdu)
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzheng
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Sichuan, China
Brand Name BONENS
Model Number 3329H
Type Trimming Potentiometer
Technology Cermet
Resistance 10Ω~5MΩ
Resistance Tolerance ±10%
Rated Power 0.5W
Max. Operating Voltage 250V DC/AC
Operating Temperature -55℃ ~+125℃
Product Description

ROHS 3329H 10k ohm trimpot variable resistor

♦3329H trimpot photoes:

ROHS 3329H 10k ohm trimpot variable resistor

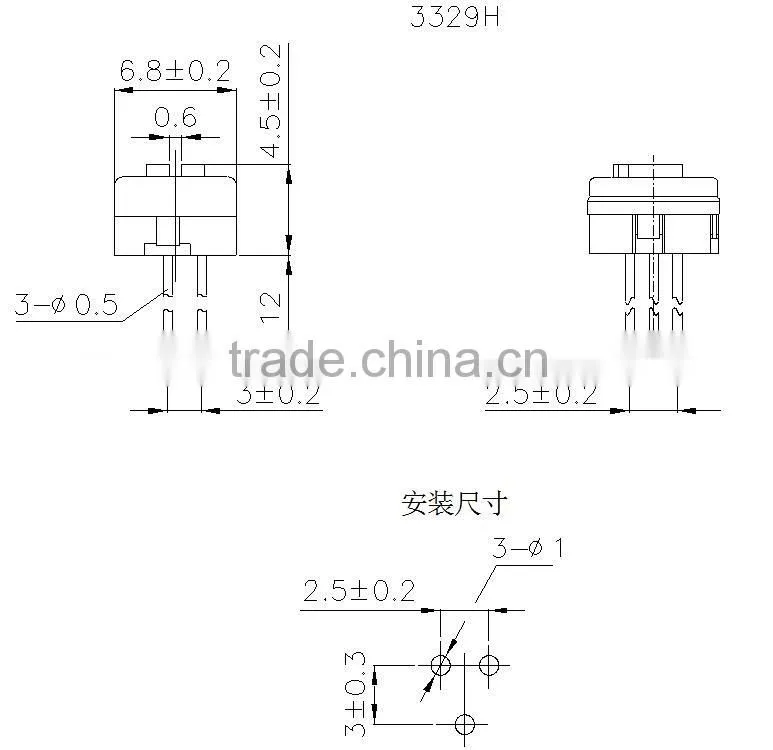

♦3329H trimpot dimentions:

ROHS 3329H 10k ohm trimpot variable resistor

♦3329H trimpot data sheet:

Electrical
 Characteristics 		Range of nominal resistance 10Ω~5MΩ
Resistance tolerance ±10%
Terminal resistance ≤±1%R or 2Ω
Contact resistance variation (CRV) ≤±1%R or 3Ω
Insulation resistance ≥ 1GΩ (100V AC)
Withstand voltage 250V (DC or AC peak value)
Effective electrical travel ≥200°


Environment Characteristics

 Rated power 0.5W ( 300V max)
Temperature range  -55°C~+125°C
TCR ±250×10-6/°C
Collision (390m/S2, 4000 times) ΔR≤±1%R
Vibration (10-500HZ, 0.75mm, 6h)
ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
Temperature variation (-55°C/30min,
 +125°C/30min, 5 cycles) 		ΔR≤±2%R,
 ΔUab/Uac≤±2%R
Climate category (IEC68-2-2)


ΔR≤± (5%R+0.1Ω),

Insulation Resistance≥100MΩ
Electrical endurance (0.5W, 1000h)

ΔR≤± (5%R+0.1Ω),

CRV≤±3%R or 5Ω
Mechanical endurance (200 cycles)

ΔR≤± (10%R+0.5Ω),

CRV≤±3%R or 5Ω
Steady damp heat (IEC68-2-3, Ca, 96h)

ΔR≤± (5%R+0.1Ω),

Insulation Resistance≥100MΩ
Physical
 Characteristics 		Total mechanical travel 280°±10°
Starting torque  ≤20mN.m
Stopper torque ≥50mN.m
Standard package  50 pcs /tube



FAQ
 Q1:  How about your experience?
  A1:  We have our own professional factory and R&D department
Q2:What's your your advantage?
  A2:(1) More than 12 Years Manufactuer Experience in potentiometer&resistor&EMI filter&knobs
       (2) 8 years of Alibaba Gold Supplier.
       (3) Factory Price and OEM Provide.
       (4) Credit guarantee combination: US $28000
       (5) TUV ROHS  ISO9001
       (6)Samples:1~5 pcs free
Q3: How to ensure the quality of the product?
     A3: The safety certification of UL/CE/CQC/ROHS is a guarantee of quality.
           100% QC inspection Before Shippment,Any problems we have after sales to help you to slove.
