45mm WH3012P 30mm Travel Dual Slide Potentiometer for Behringer

45mm WH3012P 30mm travel dual slide potentiometer for behringer .

♦Product Picture details:

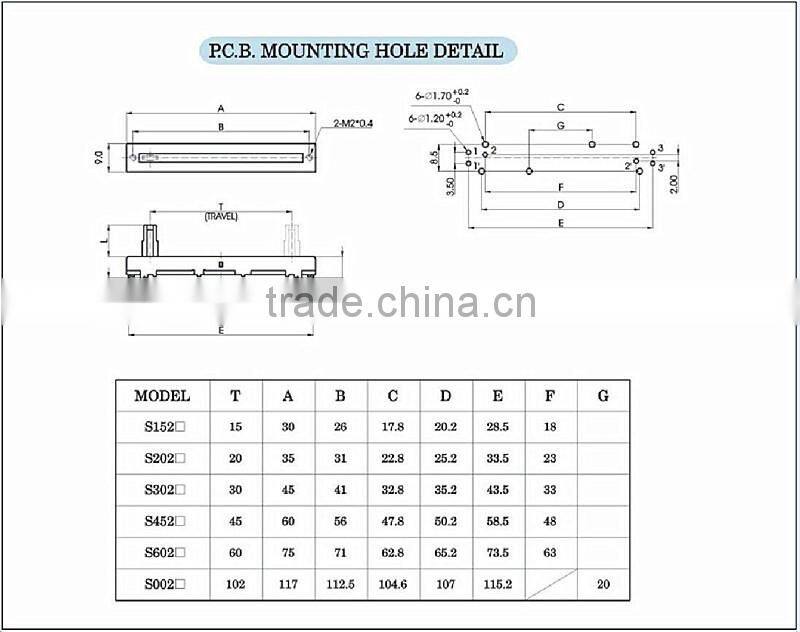

♦Product Dimentions:

♦Product Lever type:

♦Product Data sheet:

Length-------------------- 45mm

Travel----------------------30mm

Specifications Resistance range---------------B1K~B1M

Tolerance of resistance:±10%

Resistance taper:A B C

Power Rating---------------------0.25W

Rated voltage--------------------200V

Insulation resistance-----------10MΩ Min AT 250V DC

Withstanding Voltage------------1 Min,AT 250 V AC

Operating force--------------------10~120gf.cm

Sliding life---------------------------10,000 cycles

Type---------------------------------- double Unit

Material----------------------------- Carbon

Resistance adjustment----------- Straight Slide

Resistance patterns of change-------------- linear

Nominal resistance:----------------------------10K

Power Rating------------------------------------ 0.05 (W)

Resistance tolerance-------------------------- ± 10 (%)

Sliding Noise-------------------------------------≤ 50m (V)

Zero resistance-------------------------------- 50 (Ω)

Contact resistance---------------------------- <20 (Ω)

Insulation resistance--------------------------> 100 MΩ

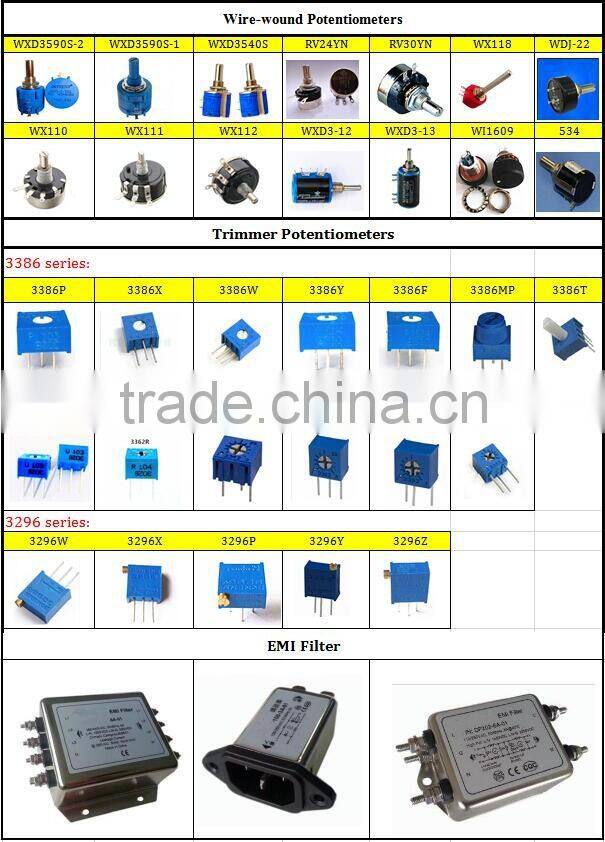

♦Our other products:

♦Delivery & Payment:

1).Send by DHL,FEDEX,UPS,TNT,EMS,Sea transportation.

 2).Paypal,T/T,Western union........

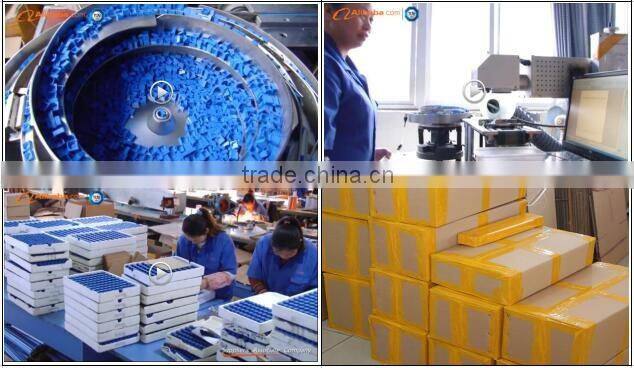

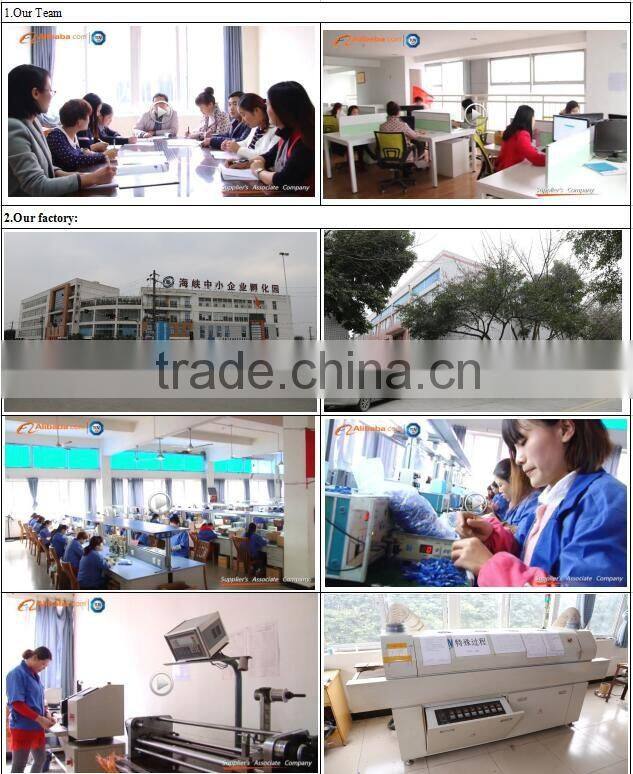

♦Our factory information:

♦Our Some Certification:

♦For more details and any requirements,Please don't hesitate to contact me:

Att:Ms Lucy

Skype:aimee.jiang122

QQ:228156427

Pone/Whattsapp:+86-18030517459

                             Looking forward to your inquiry............................
