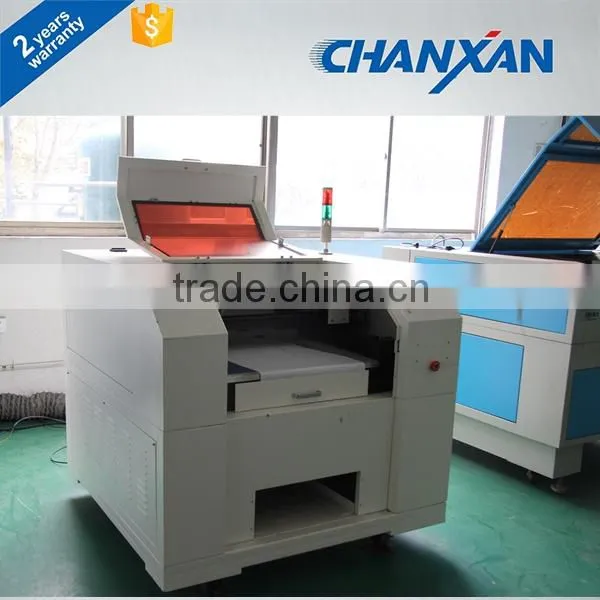

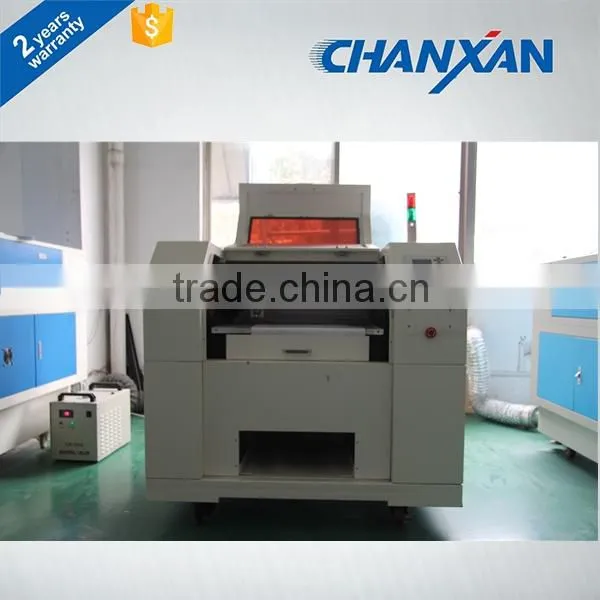

CW-650R cheap laser cutting machine
Equipment Advantage:
1,The machine use the screw transmission ,servo motor, cutting in high precision.
2,Laser cutting is non-touch, it will not damage the materials, cutting one-time forming, speed fast, no need to process the edge again.
3,No need open mold, it is the artifact in the new industry age.
4,This machine can cut half-through on the non-metal materials such as electronic film, foams, combined fabric, etc.
Application Field:
Electronic materials cutting,thin film,combined film,toch screen,combined fabric,wood and bamboo art crafts, aircraft model,fancy toys and other non-metal materials high precision cutting.
Model |
CW-650R |
|
Working area |
600mm*500mm |
|
Laser power |
30W-150W optional |
|
Laser type |
Imported CO2 RF metal tube |
|
Lens |
A full set laser transmission lens imported from USA |
|
Cooling type |
Water/air cooling system |
|
Carving scanning speed |
0-60000mm/min |
|
Cutting speed |
0-40000mm/min |
|
Laser energy control |
0-100% by software settings |
|
Minimum font |
Chinese:2.0mm*2.0mm,English:1.0mm*1.0mm |
|
Maximum scanning accuracy |
4000 DPI(could equip with CCD vision system on demand) |
|
Positioning accuracy |
≤+0.01mm |
|
Control system |
DSP control system |
|
Graphic format supported |
DST/PLT/BMP/DXF/DWG/AL/LAS |
|
Software supported |
TAJIMA/CORELDRAW/PHOTOSHOP/AUTOCAD AND ETC |
|
Color separation |
available |
|
Drive system |
Servo motor system by imported |
|
Accessories |
Exhaust fan and pipe |
|
Power |
AC 110V/220V ±10%,50HZ/60HZ |
|
Working condition |
Temperature:1-45℃,humidity:5-95% |
|
|
Optional Configuration:
|
knife/sawtooth work table, lift platform ,follow-up auto focus system, Professional laser head |
|
Training Service
Our technician is available to your factory and offer training of how to use our machines.
As well, you may send your technician to our company to learn how to operate machines.
Quality Guarantee
We arrange final test before shipment. We run the machine without material for a few days, and then cut materials for test. After making sure machine is the best performance, then ship out the machine.
Operating guide
Explain the use of machines and software. Guide the customer proper use, extend product life and reduce energy consumption.
Machine maintenance&Warranty
Explain the maintenance of machine parts to extend product life and save the energy consumption
The whole set of machine warranty period is 1 year.
