b10k 30mm carbon linear slide potentiometer

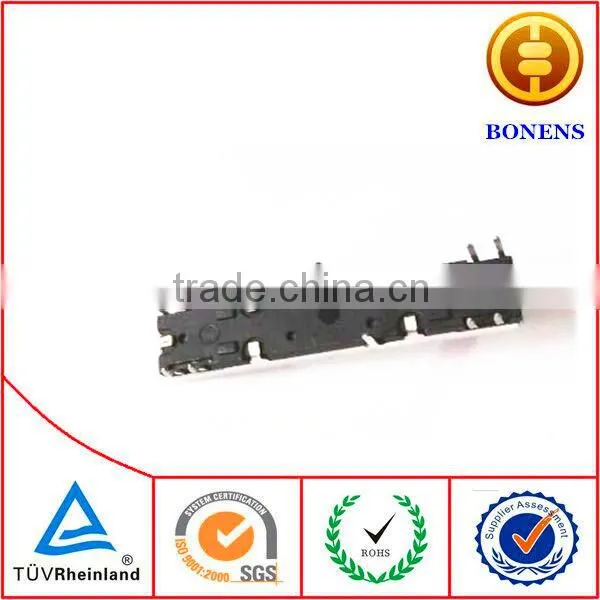

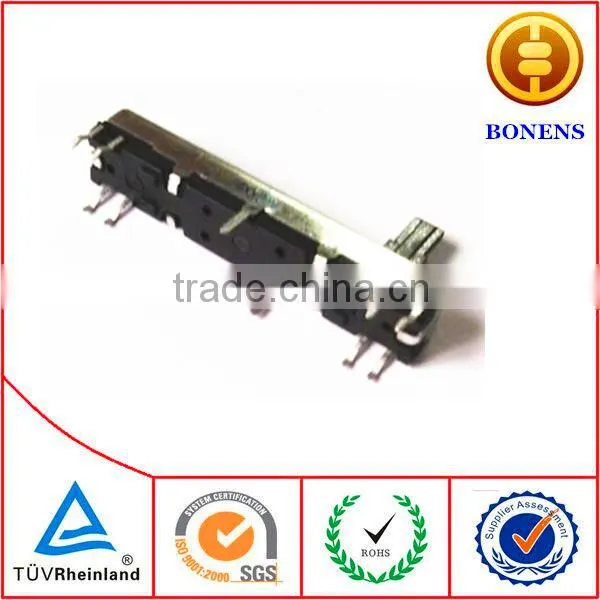

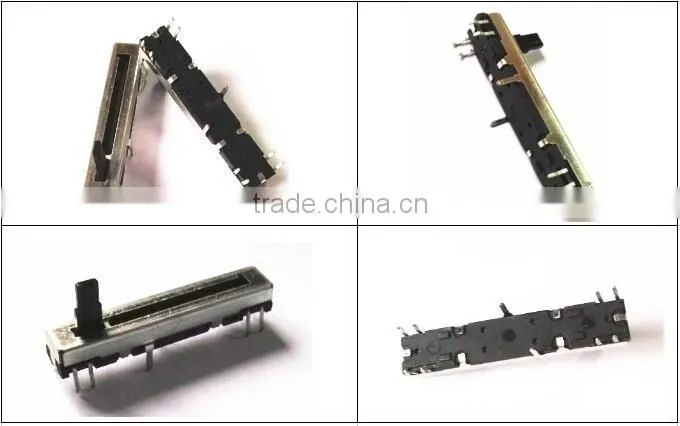

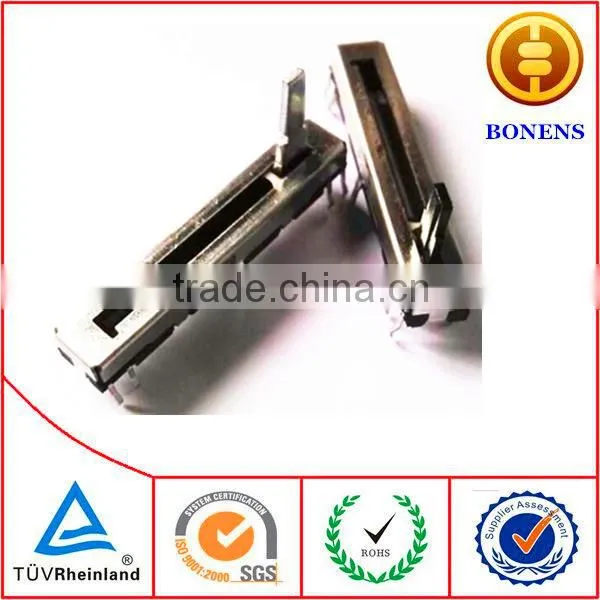

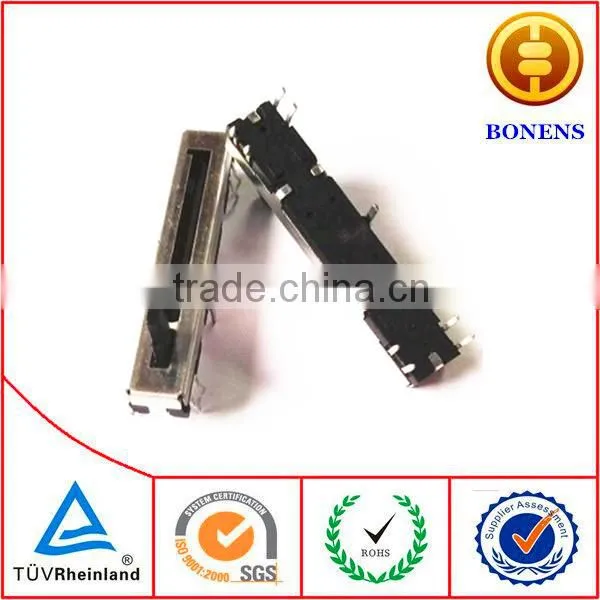

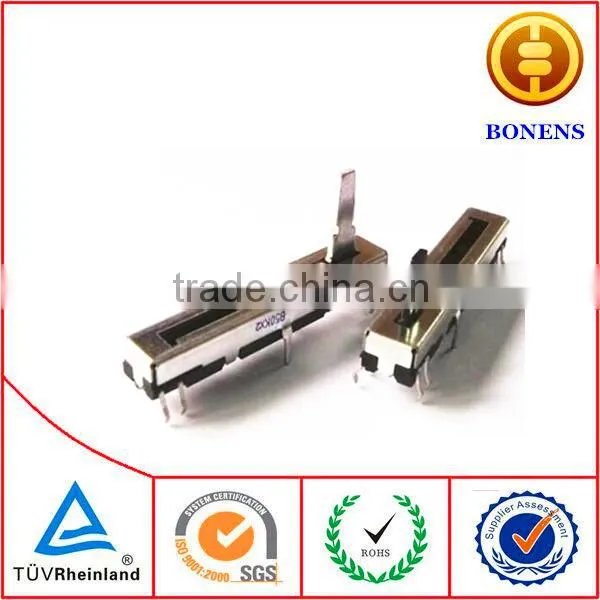

♦Product Picture details:

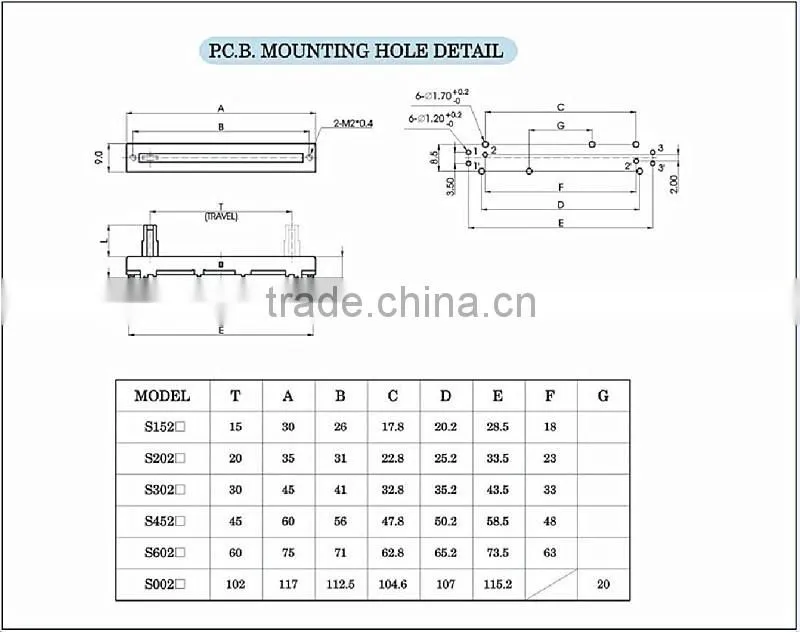

♦Product Dimentions:

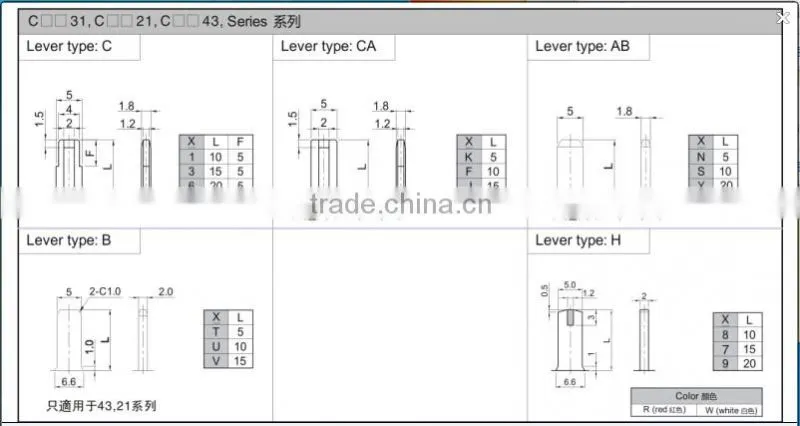

♦Product Lever type:
♦Product Data sheet:
Length-------------------- 45mm
Travel----------------------30mm
Specifications Resistance range---------------B1K~B1M
Tolerance of resistance:±10%
Resistance taper:A B C
Power Rating---------------------0.25W
Rated voltage--------------------200V
Insulation resistance-----------10MΩ Min AT 250V DC
Withstanding Voltage------------1 Min,AT 250 V AC
Operating force--------------------10~120gf.cm
Sliding life---------------------------10,000 cycles
Type---------------------------------- double Unit
Material----------------------------- Carbon
Resistance adjustment----------- Straight Slide
Resistance patterns of change-------------- linear
Nominal resistance:----------------------------10K
Power Rating------------------------------------ 0.05 (W)
Resistance tolerance-------------------------- ± 10 (%)
Sliding Noise-------------------------------------≤ 50m (V)
Zero resistance-------------------------------- 50 (Ω)
Contact resistance---------------------------- <20 (Ω)
Insulation resistance--------------------------> 100 MΩ
♦Our other products:
♦Delivery & Payment:
1).Send by DHL,FEDEX,UPS,TNT,EMS,Sea transportation.
2).Paypal,T/T,Western union........
♦Our factory information:
♦Our Some Certification:
♦For more details and any requirements,Please don't hesitate to contact me:
Att:Ms Lucy
Skype:aimee.jiang122
QQ:228156427
Pone/Whattsapp:+86-18030517459
Looking forward to your inquiry............................
