RVQ24YN03 21mm 30mm shaft 10k rotary potentiometer with switch
- 10000 Piece / Pieces per Month
- SHENZHEN
- T/T L/C D/P D/A Credit Card PayPal
- 8mm Potentiometer: Horizontal, 10K Ohm+/-10%, with Rotary Switch, Shaft Length 15mm, Used for Walkie Talkies, Radios and Other Instruments and Equipment
- 9mm horizontal single gang rotary potentiometer knob adjustable resistance with rotary switch
- 9mm horizontal single gang rotary potentiometer knob adjustable resistance with rotary switch
- 8mm metal shaft horizontal type dual gang Rotary Potentiometer with rotary switch, use for interpone and Small Audio Device, Small Radio
- 8mm metal shaft horizontal type dual gang Rotary Potentiometer use for interpone and Small Audio Device, Small Radio
- 8mm metal shaft horizontal type rotary potentiometer knob integrated push switch , 10KΩ,adjustable resistance VR
Product Details
Place of Origin: | Sichuan, China | Brand Name: | Bonens | Model Number: | RVQ24 |
Type: | Rotary Potentiometer | Technology: | Carbon Composition | Resistance: | 1K-5M |
Resistance Tolerance: | ± 10% ,± 20% | Rated Power: | 0.2w | Max. Operating Voltage: | 200v |
Operating Temperature: | 10℃ to 85℃ |
Product Description

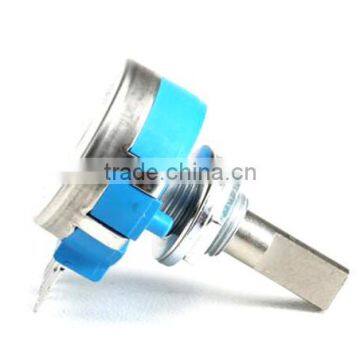

RVQ24YN03 21mm 30mm shaft 10k rotary potentiometer with switch
Products datasheet:
1.) Mechanical specifications:
a.) total rotational angle: 300±10°
b.) rotational torque: 20~200gf.cm
c.) click position is available
d.) rotation stop strength: 8kgf.cm Max
e.) residual resistance: Max 10 ohm
2.) Electrical specifications:
a.) total resistance range: 500 ohm <= R <= 1M ohm ± 10%
500 ohm >= R >= 1M ohm ± 30%
b.) resistance taper: A, B, C, D
c.) power rating: 0.2 w
d.) Max. operating voltage: AC 500 V
e.) rotational noise: less than 47 m
f.) insulation resistance: 50M ohm or more
g.) withstanding voltage: 500V AC for 1min
h.) rotation life: 15,000 Cycles Min
Products Name with link
Products Name with link
Products Name with link
Q1: How about your experience?
A1: We have our own professional factory and R&D department
Q2:What's your your advantage?
A2:(1) More than 12 Years Manufactuer Experience in potentiometer&resistor&EMI filter&knobs
(2) 8 years of Alibaba Gold Supplier.
(3) Factory Price and OEM Provide.
(4) Credit guarantee combination: US $17000
(5) TUV ROHS ISO9001 CE
(6) Low MOQ:1 Piece
Q3: How to ensure the quality of the product?
A2: The safety certification of UL/CE/CQC/ROHS is a guarantee of quality.
100% QC inspection Before Shippment.
Contact informations:
Atten:Gina
Skype:Gina.zhou12
Wechat:XMZ150312
Whats App:+86-18010662198
TongYueXin Commerical and Trading Co.,Ltd(Chengdu) is a technical factory of mainly manufacturing and develping
high power resistor,wirewound potentiometer,carbon film potentiometer,precision parts and AC power noise filter.EMI Filter.Feedthrough Capacitor.
The established maxim of our company is technical innovation, keeping improvement and meeting customer demands
Rich and varied goods is your selection guide. High quality is absolutely the credibility of the guarantee. Reasonable price is your final choice.
Our products is also used in the field of the military industry .Our factory are continuing to offer a great deal of qualified goods in the field of the military industry
