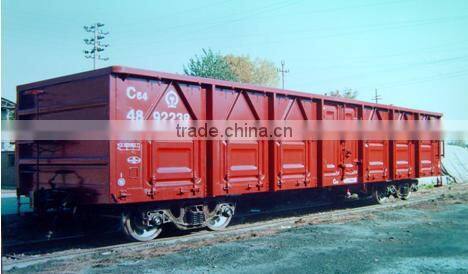

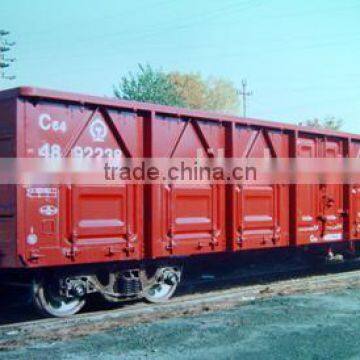

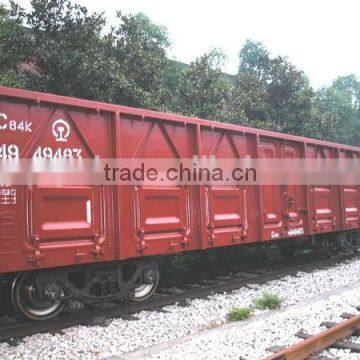

C64K freight wagon wagon supplier
Specifications
Type: C64K
Gauge: 1435mm standard
Bogie type: K2
Loading capacity: 61t
Volume size: 73.3 m3
Tare weight: 22.5t
Design speed: 120 km/h
Tare-to-load capacity: ≤ 0.377
Axle load: 21t
Max sizes: 13438mm*3242mm*3142mm
Bogie Type: K2
Description
Model C64K top open wagon is a finalized design approved by Ministry of Railways of China. It is suitable for running on the gauge of 1435mm railways for transportation of bulk or packaged goods such as coal, ore, building materials, machinery, timber, container etc. This wagon is manufactured not only suitable for manual loading/unloading, but also suitable for the dumper, as well as the requirement of de-freezing silo. The wagon is made in compliance with the requirement of technical specifications and key processes approved by MR by utilizing the material verified by the same. The wagon body is of all steel-welded structure. Excepting the welding structure of center sills being of Chinese 09V standard high strength low alloy steel, the welding structures of its other main sections and plates are all made of Chinese 09CuPTiRe high strength low alloy steel resistant to atmospheric corrosion. All steel profiles and plates of the wagon are preserved by means of shot blasting to get rid of the rust.
Top quality
we obtains the technology to manufacture many types of Meter-gauge and Wide-gauge railway the bogie of wagons, which can meet different requirements of all kinds of special purpuse railway and fittings wagons of the customers at home and abroad
Capability
we have great production capability of Railway products, steel fabrication, forging and casting steel, heat treatment and Mechanical Machining
Diversity
we also manufacture Engineering machinery parts, fittings for ships, fitings for Automobile and other products and wind power products
our company has a strong ability in self-development and has the competitive advantage in developing railway wagon fittings of which the types and quantities are relatively many, and has developed a variety of fittings product.
Main products:
Domestic
Bolster, Side Frame, Adapter, Side Bearer Brace, wagon coupler piece, impacting brace, center plate brace, pope lug, Draw hook, forged center plate, coupler yoke, bracket, draft gear component, front cover, rear gear used in the "three-piece" bogie
Abroad:
Draft sil, joint head, coupler, russia bolsters and side frames, cast&forge center plate, E steel, C steel, E steel castings, narrow-gauge, meter-gauge, wide-gauge bogies and parts
C70 open top freight wagon,railway wagon manufacturer quality guaranteed best price
C70 open top freight wagon,railway wagon manufacturer quality guaranteed best price
Strive for the best
Favorable Comment
We are bronze supplier for the CATERPILLAR, one of the best companies in the world

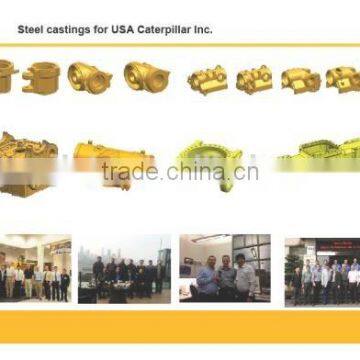

This is some of the steel castings for USA Caterpillar Inc.
The Caterpillar's visit at our factory
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
