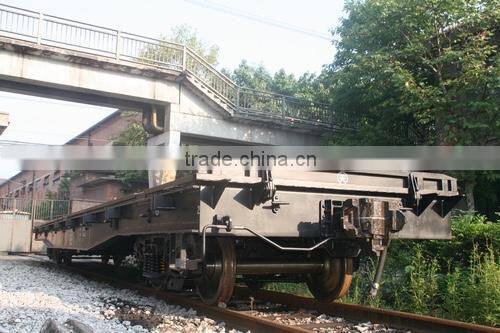

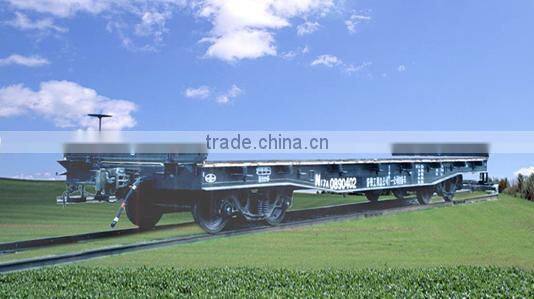

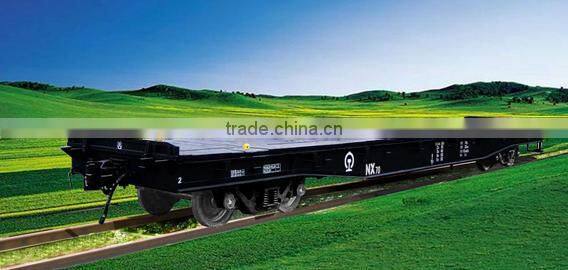

NX70 railway freight wagon, flat wagon, railway track, used wagon for sale
Specifications
Type: NX70
Gauge: 1435mm standard
Bogie Type: K5 or K6
Volume size: 77m3
Loading capacity: 70t
Tare weight: less than 23.8t
Axle load: 23t (+2% -1%)
Equivalent length: 1.5
High of center of gravity empty: 738mm
Tare-to-load ratio: 0.34
Load per meter of track: less than 5.73 t/m
Min radius of curvature negotiated: 145m
Design Speed: 120 km/h
Braking distance: less than 1400m (loaded & emergent)
Whole wagon braking leverage: 7.8
Braking ratio: empty 24.1% and loaded 17.9% (common braking level)
Clearance limit: in conformance with Chinese National Standard GB146.1-1983 《Moving Dimensions for Locomotives and Rolling Stocks on standard gauge》
Basic dimensions:
Length of wagon: 16366mm
Fixed distance of wagon: 10920mm,
Length of bottom frame: 15440mm
Max width of wagon: 3157mm
Max height of empty wagon: ? mm
Max width of bottom frame: 2960mm
Height from top of rail to floor top when empty: 1216mm
Height from top of rail to loading face of International container when empty: 1216mm
Height from top of rail to coupler center when empty: 880mm
Wheel diameter: 840mm
Max load on loading unit length: 1m-30t , 2m-35t, 3m-45t, 4m-50t, 5m-55t
Containers loading: 45/48/50 ft international container or 1AAA/1AA/1A/1AX/1CC/1C/1CX type container stated in ISO668 items.
Description
This type of wagon can be used as not only platform freight wagon to transport steel, auto, tractor, huge concrete bridge and military equipment, but also used to transport the types of international containers. It is composed of bottom frame, floor, container locking device, end door, coupling and drafting device, braking system and bogies.
Top quality
we obtains the technology to manufacture many types of Meter-gauge and Wide-gauge railway the bogie of wagons, which can meet different requirements of all kinds of special purpuse railway and fittings wagons of the customers at home and abroad
Capability

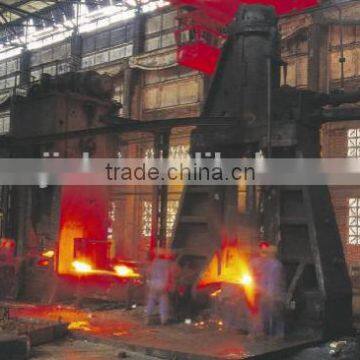

we have great production capability of Railway products, steel fabrication, forging and casting steel, heat treatment and Mechanical Machining
Diversity
we also manufacture Engineering machinery parts, fittings for ships, fitings for Automobile and other products and wind power products
our company has a strong ability in self-development and has the competitive advantage in developing railway wagon fittings of which the types and quantities are relatively many, and has developed a variety of fittings product.
Main products:
Domestic
Bolster, Side Frame, Adapter, Side Bearer Brace, wagon coupler piece, impacting brace, center plate brace, pope lug, Draw hook, forged center plate, coupler yoke, bracket, draft gear component, front cover, rear gear used in the "three-piece" bogie
Abroad:
Draft sil, joint head, coupler, russia bolsters and side frames, cast&forge center plate, E steel, C steel, E steel castings, narrow-gauge, meter-gauge, wide-gauge bogies and parts
C70 open top freight wagon,railway wagon manufacturer quality guaranteed best price
C70 open top freight wagon,railway wagon manufacturer quality guaranteed best price
Strive for the best
Favorable Comment
We are bronze supplier for the CATERPILLAR, one of the best companies in the world
This is some of the steel castings for USA Caterpillar Inc.
The Caterpillar's visit at our factory
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
