22mm Precision Conductive Plastic Potentiometer,ruwido Potentiometer

Name: 22mm Precision Conductive Plastic Potentiometer,ruwido Potentiometer
Brand: BONENS
SKU: 126963801
Availability: InStock

US$ 6 - 6.5 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

BONENS

Model Number:

WDJ22-D

Tong Yue Xin Commercial And Trading Co., Ltd. (Chengdu)

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzheng shanghai ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name BONENS

Model Number WDJ22-D

Type Rotary Potentiometer

Technology Other, conductive plastic potentiometer

Resistance 1kΩ~10kΩ

Resistance Tolerance ±10%

Rated Power 0.5W(70℃)0W(120℃)

Max. Operating Voltage 200V DC

Operating Temperature -60℃~+125℃

22mm Precision conductive plastic potentiometer,ruwido potentiometer

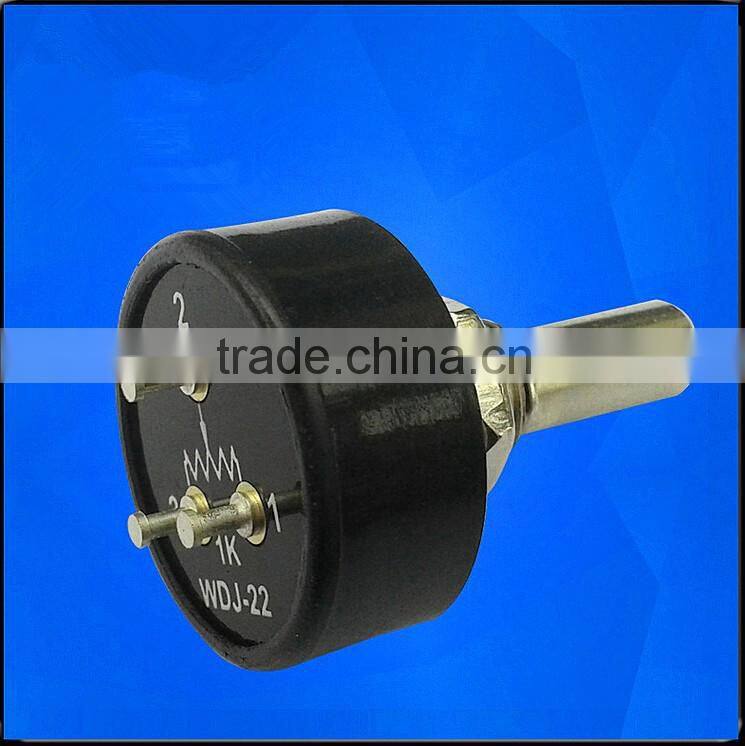

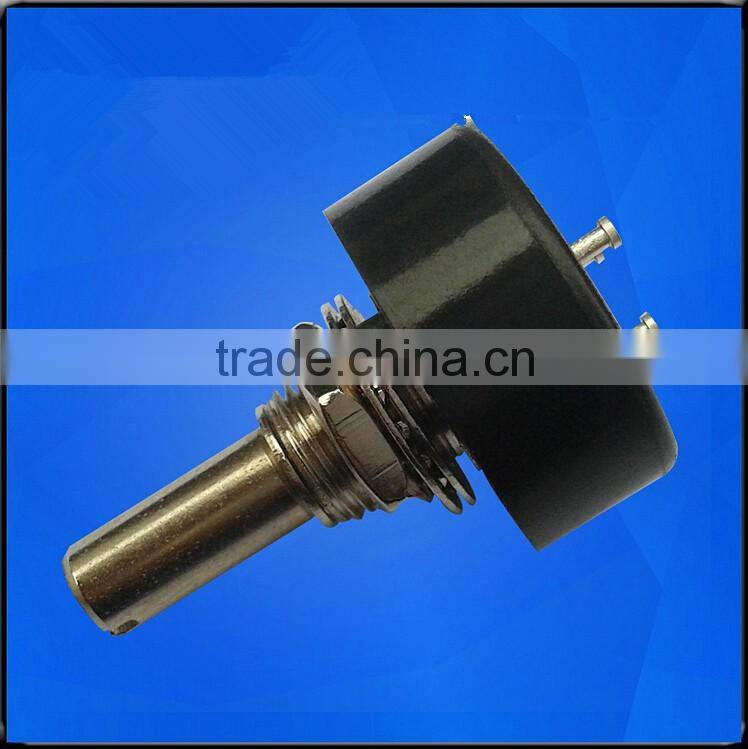

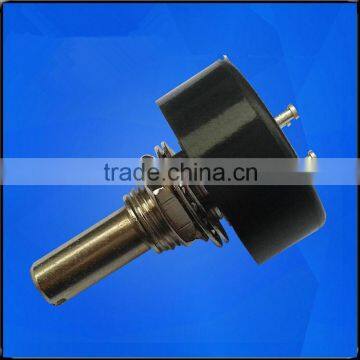

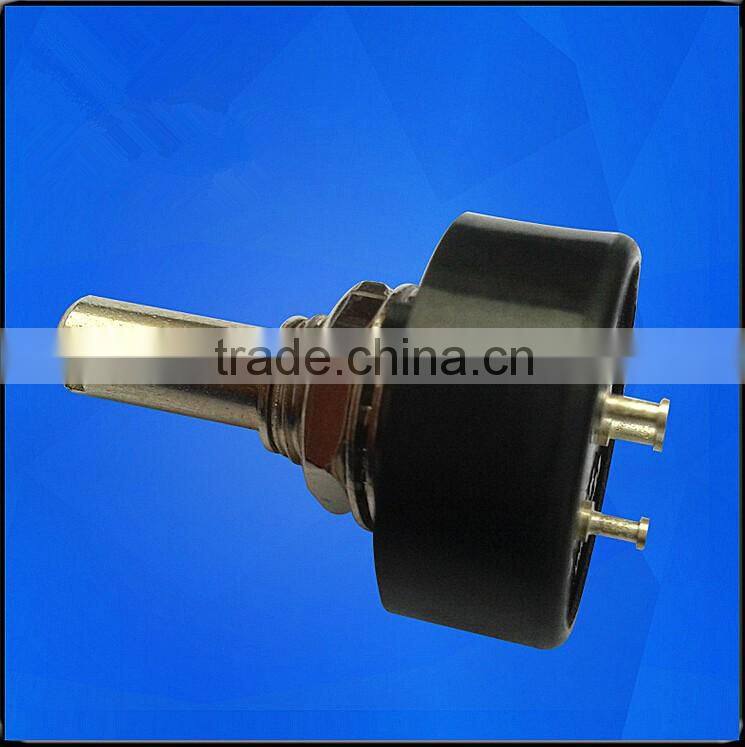

♦product Picture details:

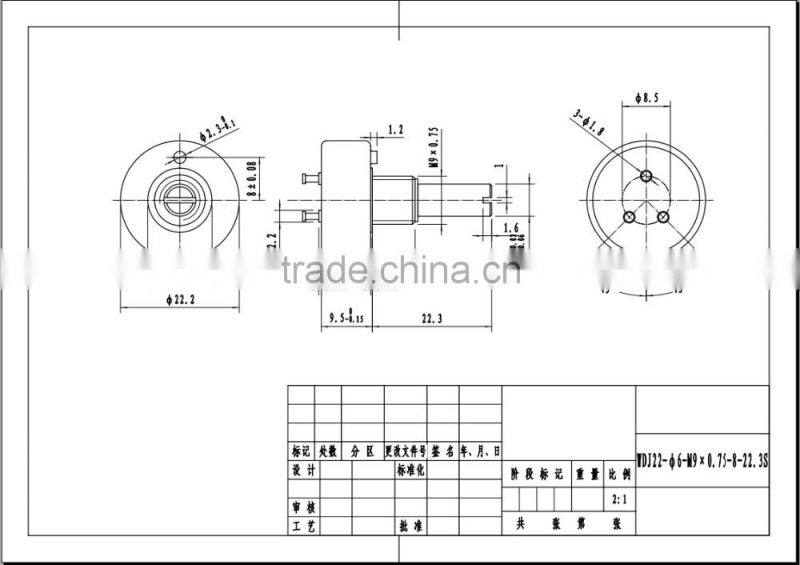

♦product Dimentions:

♦product Data Sheet:

Electrical:
Resistance Range		1KΩ-10KΩ
Resistance Tolerance		±10% Standard
End Resistance		<3Ω
Resistance Taper		B
Independent Linearity		±0.5%
Power Rating		0.5W(70℃)0W(120℃)
Peak Noise (C.R.V.)		<2%Rn
Dielectric Strength		1000V 1minute
Adjustment Travel		90°120°200° 240° 300° 340°
Insulation Resistance		10M
Resolution		Essentially infinite
Maximum Input Voltage		200VDC
Environmental:
Storage Temperature Range		-60℃~+125℃
Operating Temperature Range		-60℃~+125℃
Temperature coefficient		500ppm/℃
Load Life		70℃ 1,000h ΔR/R≤±10%
Rotational Life		1,000,000 times, ΔR/R≤±7%
IP Range		IP25
Soldering Heat Resistance		(350℃ 3S)ΔR/R≤±2%
Temperature Cycle		(-25℃,+85℃ 30min/each,5 cycles) ΔR/R≤±10%
Vibration		10-55Hz, 1.5mm amplitude, 3.directions ΔR/R≤±5%
Mechanical:
SIZE		SEE DRAWING
Mechanical Travel		220° 320° 360°
Shaft Torque		25~35gf·cm
Stop Strength		……
Mounting Nut Torque		15Kgf·cm
Shaft Runout		0.15mm
Shaft End Play		(shaft length 30 mm)0.15mm
Shaft Radial Play		0.15mm
Shaft Strength (push)		125 N (12.75 kgf ) min.
Shaft Strength (tensile)		125 N (12.75 kgf ) min.
Marking		……
Hardware.		Washer,Lockwasher, Nut
