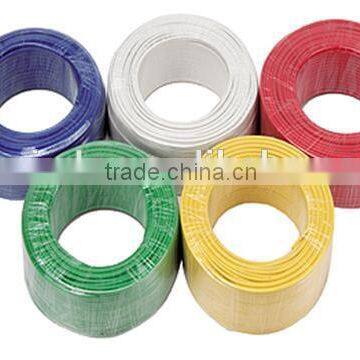

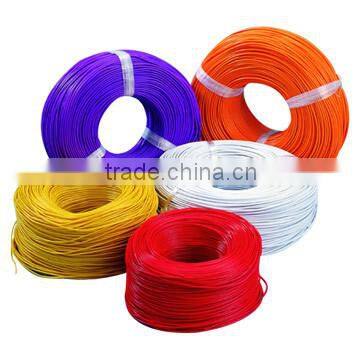

26AWG PVC Insulated Wire Leads Cable
Specification
1. UL&RoHS compliant
2. Conductor:32-16AWG
3. Use for Internal Wiring
4. Insulaion material : PVC
5. Conductor type: Tinned Copper
6.Normal voltage:300V Test Voltage:2000V
PVC Wire is used for lighting, electronic equipment, instument and communication equipment with rated voltage 450/750V or less
Specification:
1. The rated voltage of the wires should equal to or higher then the rated voltage of the system when wires are used at AC system. If the wires are used at DC system, the rated voltage of system should lower then 1.5 times as high as rated voltage of cable and wires. The working voltage of the system could be 1.1 times as high as the rated voltage of the cable.
2. The long term working temperature should lower then 70oC. The working temperature of BV-90 should lower then 90oC. And the laying temperature should higher then 0oC.
3. The curve diameter of the wire should longer than 8 times of the diameter of the outer diameter of cable and wires if their outer diameter is 25 mm or above. If the diameter of cable and wires is above 25 mm, the curve diameter should be at least 12 times of the outer diameter of the cable and wires.
Perfessional manufacturer of electric harness,silicon gel line,the power cord.Especially in the field of dynamic model and peripheral accessories has quiet a lot experiences .Looking forward to have further cooperation with you .If you have any question about products,pls feel free to contact us.
