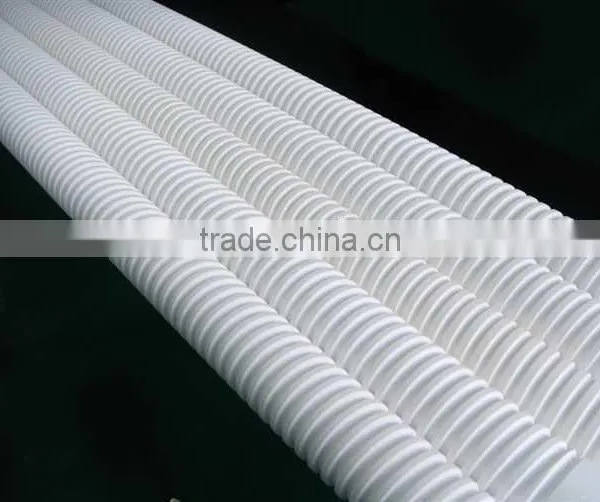

Ceramic roller

Specifications

We can supply all kind of Ceramic roller , ceramic fiber paper, ceramic fiber rope.

Ceramic roller  description:

Ceramic roller made from refractory ceramic fiber, attending inorganic and suitable organic binders, High temp. resistant



Ceramic roller technical data:( stardand type) :

1. Specification temp ( oC ): 1260

2. Continuous working temperature( oC ): 1000

3. Color: white

4. Density (kg/m3): 260-350

5. Rate of liner (%) (24h.128kg/m3): -3 (1000 oC )

6. Rate of thermal conductivity (W/m. K) (285kg/m3): 0.085(400 oC) 0.132(800 oC) 0.180(1000 oC)

7. Tensile strength (Mpa)(Strength 10%): 0.5

8. Chemical Composition: (%) AL2O3: 45-46 AL2O3+SiO2: 96-97 Fe2O3:

9 Na2O+K2O: ≤0.5

Standard Ceramic roller application:

1.Glass tank side, end wall and port neck

2.Glass tank wall and port neck insulation

3.Heat shields

4.High mechanical stress areas

Ceramic roller data sheet:



characteristics	Items		Types
			SS-C-1100	SS-C-1200S	SS-E-1250	SS-F-1300
Physical Properties	Bulk Density(g/cm3)		2.3~2.5	2.5~2.7	2.5~2.7	2.5~2.7
	Straightness		<0.07%*L	<0.07%*L	<0.07%*L	<0.07%*L
	Apparent Porosity(%)		20~25	17~22	17~22	15~20
	Water Absorption(%)		8~10	6~8	6~8	6~8
	Bending Strength (Mpa)	Room Temp.	40~50	45~55	45~55	60~67
		High Temp.(1300°C)	>20	>30	>40	>40
	Thermal Expansion Coefficient (×10-6/°C)(25-1000°C)		5.5~5.7	5.7~6.0	5.6~5.9	5.7~6.0
	Thermal Shock Resistance		Good	Excellent	Very good	Very good
	Max.Working Temp.(°C)		1100	1200	1250	1300
Chemical Composition	Al2O3(%)		65~68	74~76	74~76	70~72
	SiO2(%)		25~27	22~24	22~24	21~23
	ZrO2(%)		-	-	-	4~7
Application	Roller Kiln		×	×	×	×
	Glazed Wall Tile		×	×	×	×
	Glazed floor Tile		×	×	×	×
	Porcelain Tile		×	×	×	×
	Tableware				×	×
	Magnetic Ceramics					×
	Sanitary Ceramics					×
	Hi-tech Ceramics
Specification	Ø21-70mm,Length up to≤ 4500mm

2,

Dia.(mm)	Length(mm)	Dia.(mm)	Length(mm)
Φ65	4190-4380	Φ45	3790-3980
	3990-4180		3590-3780
	3790-3980		3290-3580
	3590-3780		2990-3280
	3390-3580		2690-2980
	3190-3380		2490-2680
	2690-3180		≤2480
	≤2680	Φ42	3290-3580
Φ60	4190-4380		2990-3280
	3990-4180		2690-2980
	3790-3980		2490-2680
	3590-3780		≤2480
	3390-3580	Φ40	2890-3180
	3190-3380		2590-2880
	2690-3180		2490-2580
	≤2680		≤2480
Φ55	4190-4380	Φ35 Φ33.7 Φ32	2890-3180
	3990-4180		2590-2880
	3790-3980		2490-2580
	3590-3780		≤2480
	3390-3580	Φ30 Φ27	3090-3380
	3190-3380		2790-3080
	2690-3180		2490-2780
	≤2680		≤2480
Φ50	4190-4380	Φ25 Φ21	2790-3080
	3990-4180		2490-2780
	3790-3980		2290-2480
	3590-3780		≤2280
	3390-3580	Other size according the request of customers'.
	3190-3380
	2690-3180
	≤2680



The package of the Ceramic roller .

 Our service of Ceramic roller :

We can guarantee  the quality of the Ceramic roller with the competitive price. We will try our best to satisfied the requirement of the customer about the Ceramic roller products. We do not want to do the one-shot business of the Ceramic roller . We also can provide some samples of the Ceramic roller products.
