Help CenterRefractory Ceramic Fiber Module for Insulation
Related Products
Specifications
Ceramic Fiber ModuleAlumina fiber module with matched mechanical anchor fixings,ceramic fibre products, ceramic fiber paper, c

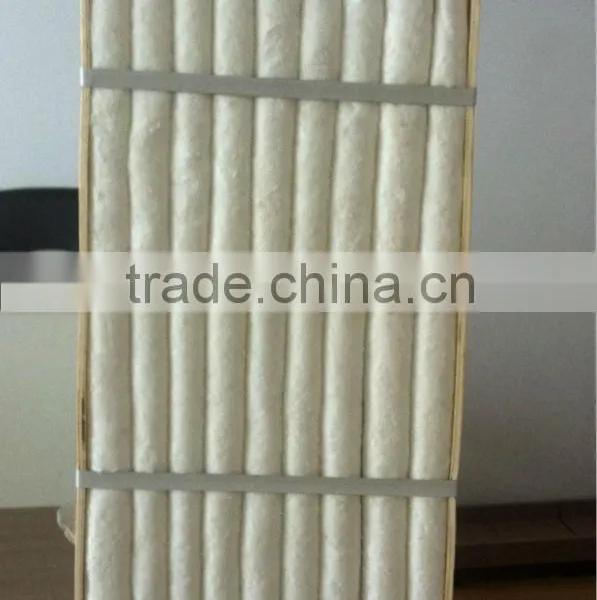

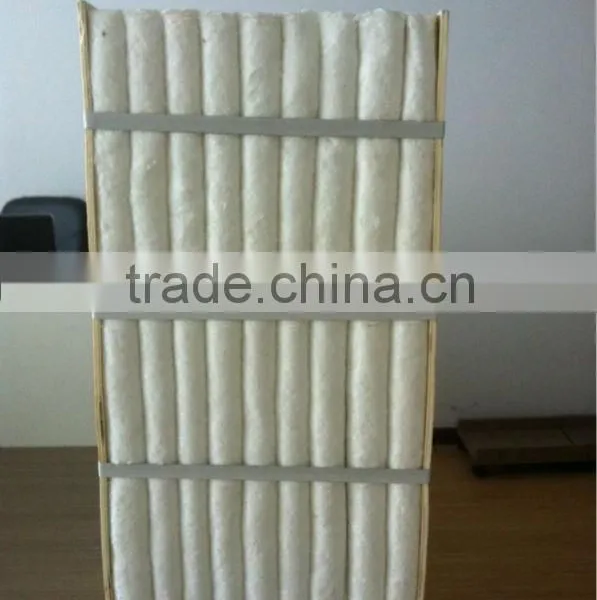

Ceramic Fiber Module Description:
Ceramic Fiber ModuleAlumina fiber modulewith matched mechanical anchor fixings, ceramic fibre products, ceramic fiber paper, cermic fiber board,Ceramic fiber modules specialized manufacturer in CHINAAlumina fiber moduleis a new refractory lining product in order for simplifying and speeding up the furnace construction and improving the lining integrity. The product, pure white, normal size, can be directly fixed on the anchor bolt of industrial furnace steel sheet, with a good fireproof and thermal insulation, which increase the furnace refractory insulation integrity and improve the furnace lining technology. Its classification temperature (From 1050°Cto 1600°C).Product Features of ceramic fiber module:
- Excellent chemical stability
- Excellent thermal stability
- Excellent flexibility, the module is in pre-compression state, after the lining masonry
- The Expansion of modules enable seamless lining,fiber lining can be compensated to improve
- Insulation performance of Fiber lining, and the overall performance is good
- Excellent thermal stability and thermal shock resistance
- Ceramic fiber modulecan be installed quickly, and anchors set in the wall lining , which can lower the requirements of anchor Material
Ceramic fiber module typical Applications :
- Furnace lining and insulation of furnace in Petrochemical industry
- Furnace lining and insulation of furnace in Metallurgical industry
- Furnace lining and insulation of furnace in Ceramics, glass and other building materials industry
- Furnace lining and insulation of heat treatment furnace in heat treatment circle
- other industrial furnace lining
Ceramic fiber module technical Data :
| Type | Common | Standard | Zirconium | |
| Classification temperature (°C) | 1260 | 1260 | 1400 | |
| Shrinkage on heating (%) | 950°C×24h≤-3 | 1000°C×24h≤-3 | 1350×24h≤-3 | |
| Thermal conductivity by mean tem.(W/m.k)(200kg/m3) | 200°C | 0.050~0.060 | ||
| 400°C | 0.095~0.120 | |||
| 600°C | 0.160~0.195 | |||
| Density (kg/m3) | 200 | |||
| Size (mm) | 300×300×250 | |||
| Package | carton | |||
| Certificate | ISO9001-2000; ISO14001-1996 | |||
