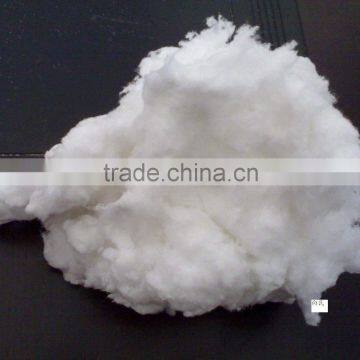

Ceramic fiber bulk

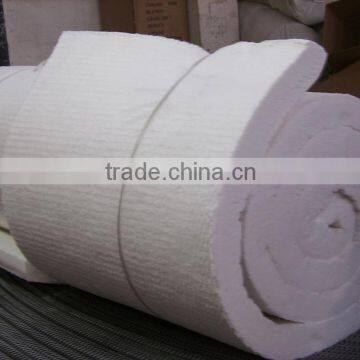

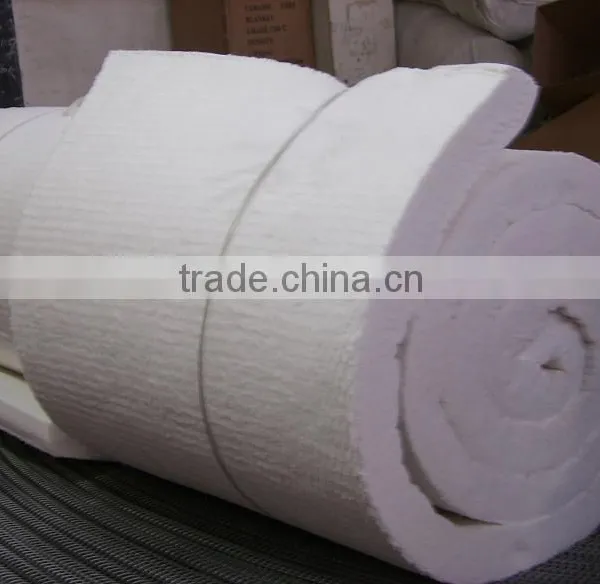

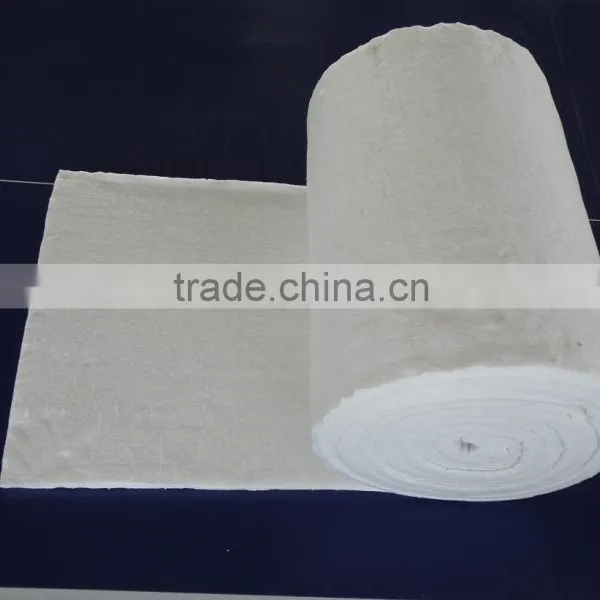

Refractory Ceramic Fiber Blanket for thermal Insulationblanket Excellent erosion resistance ISO9001:2000; ISO1400:1996
1 CERAMIC FIBER BULK for thermal Insulationblanket
Refractory Ceramic Fiber Blanket is made through intensive needle-punching processing . refractory ceramic fiber blanket does not contain any bond or other compositions,and also no slag inclusion content. The intensive needle-punching technics improved the fiber intertexture and the resistance performance against delamination as well as the tensile strength.It have a good high temperature shrinkage after the heat treatment of 750-950 during the producing. Beside the charicteriatics in common,it have better sound insulation performance and mechanism strength,is easy to machining and install.
2. CERAMIC FIBER BULK Product Features of ceramic fiber bla blanket:
Low thermal conductivity ,heat storage and heat capacity
Excellent heat insulation
Excellent chemical stability
Shock and chemical attack resistant
Low thermal conductivity and shrinkage
Resilience under working condition, Low shrinkage under high temperature
Excellent sound insulation and resistance of folding
3. CERAMIC FIBER BULK application
The material of wall lines and back lines of industrial furnace and the sealing and insulating material of expanded gaps of furnace wall, furnace door, furnace top lid, etc.
Insulating materials of high temperature tubes

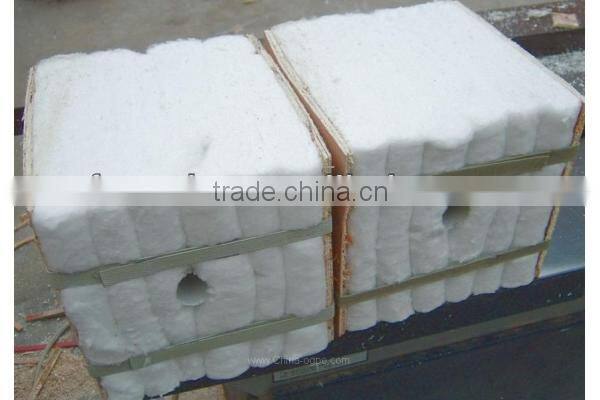

Excellent materials to produce module

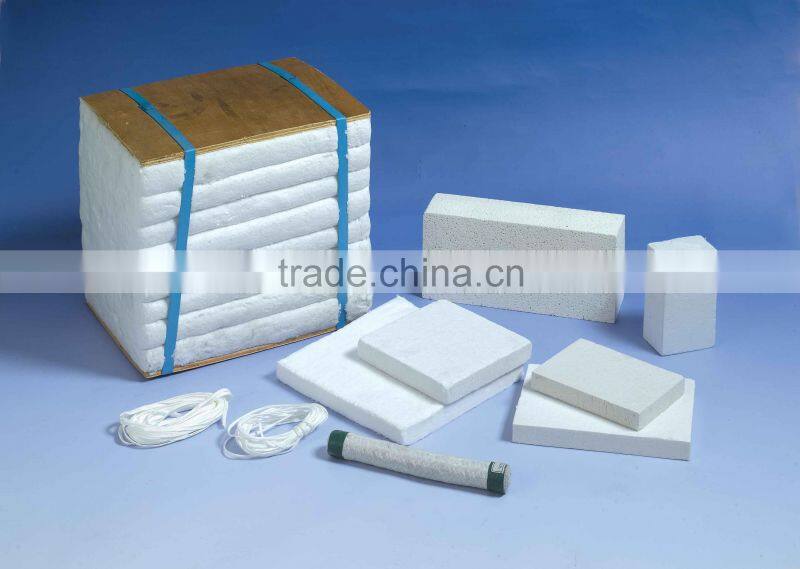

Ceramic fiber paper manufactuer

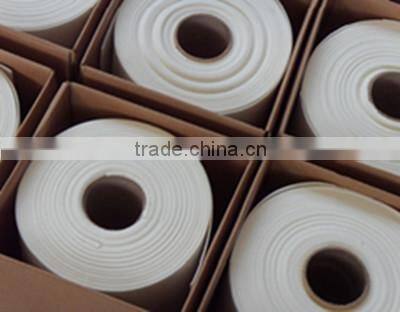

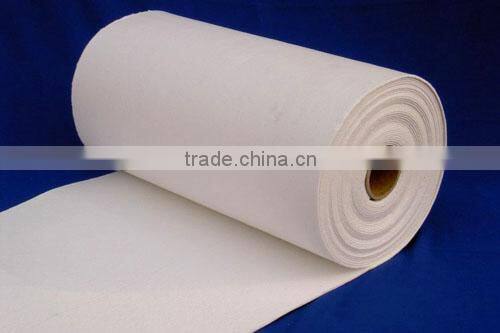

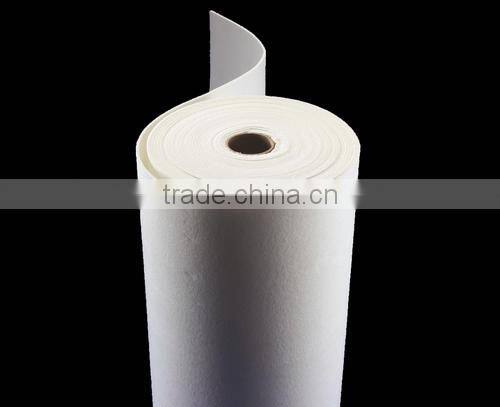

- ceramic fiber paper,
- ceramic fiber boards,

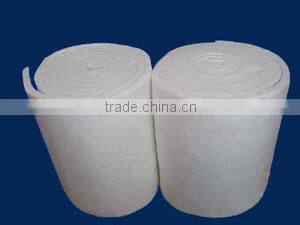

- ceramic fiber blankets and felts,
- ceramic fiber bulk,

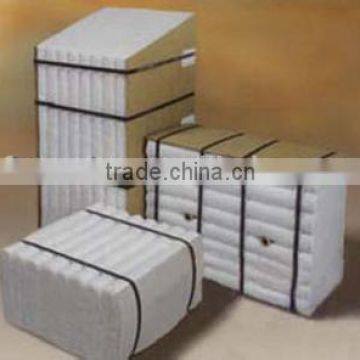

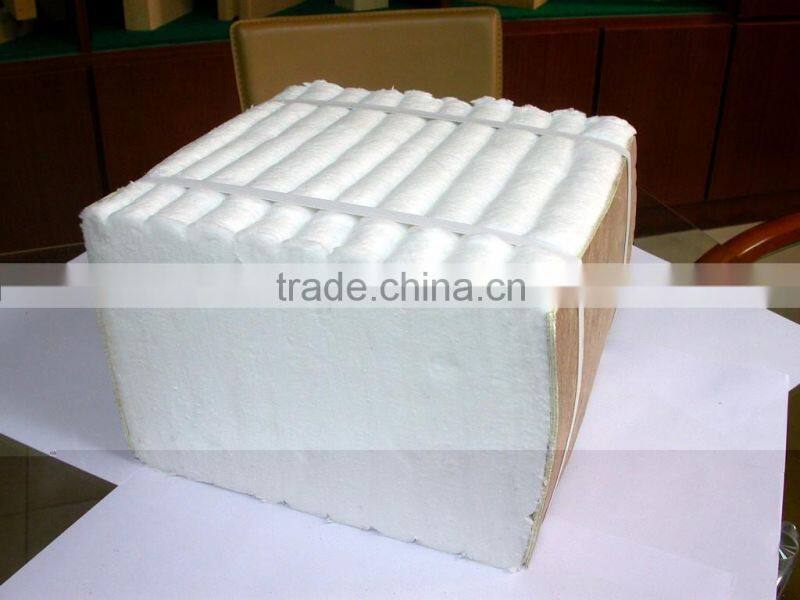

- ceramic fiber modules, with kinds of mechanical anchor fixings,

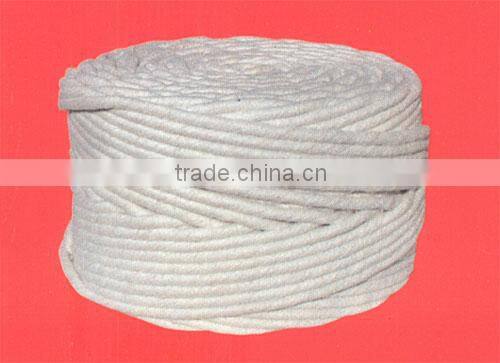

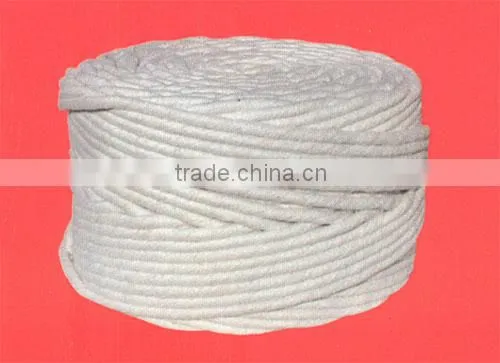

- ceramic fiber textiles(ceramic fiber yarn,cloth,tape,twisted rope & briaded rope)
- special shaped ceramic fiber products / vacuum formed ceramic fiber products
COM |
STD |
HP |
HA |
HZ |
||
Classification TemperatureºC |
1100 |
1260 |
1260 |
1360 |
1430 |
|
Working TemperatureºC |
<1000 |
1000 |
1100 |
1200 |
1350 |
|
Color |
white |
white |
white |
white |
white |
|
Densitykg/m3 |
96 128 |
96 128 |
96 128 |
128 160 |
128 160 |
|
Liner Shrinkage% After 24hours |
-4 |
-3 |
-3 |
-3 |
-3 |
|
1000ºC |
1000ºC |
(1100ºC) |
(1250ºC) |
(1350ºC) |
||
Thermal conductivityw/m.k density128Kg/m3) |
0.09 |
0.09 |
0.09 |
0.132 |
0.76 |
|
400ºC |
400ºC |
400ºC |
600ºC |
600ºC |
||
0.176 |
0.176 |
0.176 |
0.22 |
0.22 |
||
800ºC |
800ºC |
800ºC |
1000ºC |
1000ºC |
||
0.22 |
0.28 |
|||||
1000ºC |
1200ºC |
|||||
Tensile strengthMPa |
0.04 |
0.04 |
0.04 |
0.04 |
0.04 |
|
Chemical Composition % |
Al2O3 |
44 |
46 |
47-49 |
52-55 |
39-40 |
Al2O3+SiO2 |
96 |
97 |
99 |
99 |
- |
|
Al2O3+SiO2+ ZrO2 |
- |
- |
- |
- |
99 |
|
ZrO2 |
- |
- |
- |
- |
15-17 |
|
Fe2O3 |
<1.2 |
<1.0 |
0.2 |
0.2 |
0.2 |
|
Na2O3+K2O |
≤0.5 |
≤0.5 |
0.2 |
0.2 |
0.2 |
|
Size(mm) |
Specification:7200X610X10-50,other according to customer's requirement |
|||||
Our service of CERAMIC FIBER BULK :
We can guarantee the quality of the CERAMIC FIBER BULK with the competitive price. We will try our best to satisfied the requirement of the customer about CERAMIC FIBER BULK products. We do not want to do the one-shot business of the CERAMIC FIBER BULK . We also can provide some samples of the CERAMIC FIBER BULK products .
Ceramic fiber bulk Packaing & Shipping: Paper box
Ceramic fiber bulk /Tape is a woven fabric made from our high quality ceramic fiber woven yarn. The cloth is reinforced with fiberglass filament, or optional Inconel/alloy steel wire reinforcement. Ceramic fiber textiles (cloth, tape and rope) contain a certain amount of binder material which is normally burned at lower temperature and does not affect the insulation property. It is featured with heat insulation and high temperature protective materials in all kind of thermal installations and heat-conducting systems, widely used in welding, foundry works, aluminum and steel mills, boiler insulation and seal, shipyards, refineries, power plants and chemical plants.
Ceramic fiber bulk Product Advantages:
-Lightweight and low thermal conductivity.
-Excellent insulation at high temperature.
-Resists corrosive chemicals, commonly used acid and alkali.
-Strong and abrasive. It can be used in tough environment.
-Good substitute of asbestos products in many insulation and sealing applications.
-Reinforcing material: glass fiber wire, stainless steel wire, glass fiber and stainless steel wire
Ceramic fiber bulk Typical Application
-Heat insulation furnace curtain, large area thermal insulation.
-Radiant heat shielding, flexible fabric expansion joints for high temperature piping.
-Safety blankets, welding blankets, protective and insulating covers, gaskets, cable or pipe wrapping, etc.
Fame Rise Refractories Co., ltd is a professional manufacturer and supplier of refractory products in Zibo City, China's refractory base. As one of China's largest refractories manufacturers, Our company occupies an area of 38,000 square meters and holds an annual production capacity of 50,000 MT of refractory products. Our major products are refractory bricks, insulating bricks, refractory castable, refractory mortars, high alumina brick, high alumina castable, ceramic fiber blanket, ceramic fiber board, alumina ceramics and other industrial ceramics.
Our company passed ISO 9001 quality certificate in the year 2000. With the aid of stringent quality assurance systems, powerful technology & advanced equipments, our products enjoy good reputation both in China and abroad. Our foreign markets include USA, Germany, UK, Italy, Turkey, Russia, Japan, South Korea, India & South Africa.
Our company assures it's customers, the commitment for supply of undisputed quality products through it's modern facilities and experienced professionals through a philosophy of continual improvement. Reliable quality, competitive price and prompt delivery make our products popular both at home and abroad.
If you are interested in our products or have any question, please feel free to contact us for further information. We sincerely look forward to establishing a long-term mutually beneficial relations with all friends from around the world.
(1)Q: Are you a trader or a factory?
A: We are both. As a trader, we have our own ceramic fiber factory.
(2)Q: How many is your MOQ for Ceramic fiber bulk? What’s your payment term?
A: Generally speaking, we don’t have MOQ. Our price depends on the specific quantity. (The larger the quantity is, the better price will be.) Our common payment term is TT or L/C at sight, we could also discuss it accordingly.
(3)Q: How long is the production cycle?
A: In general, we spend 10-25 days in a 20-ft container order. If necessary, we could make it shorter.
(4)Q: Could you provide samples for Ceramic fiber bulk?
A: Sure. We could send you free samples, while the freight will be paid by the clients. Any needs, contact us freely.
(5)Q: What kind of certificates do you have?
A: We have ISO, SGS,BV etc.
