3V High Speed Toys Motor FK-130PH

3V High Speed Toys Motor FK-130PH thumbnail-1
3V High Speed Toys Motor FK-130PH photo-1
US$ 0.3 - 0.8 MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CF motor
Model Number:
FK-130PH
Contact Supplier Request Quote Chat Now
Shenzhen Chengfang Electric Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CF motor
Model Number FK-130PH
Usage Boat, Car, Fan
Certification CCC, CE, ROHS, UL
Type Micro Motor
Torque 40g*cm
Construction Permanent Magnet
Commutation Brush
Speed(RPM) 20000~30000rpm
Continuous Current(A) 0.76-0.11A
Output Power 7.11-7.98W
Voltage(V) 1.0~24V
Efficiency Other, 56.4%-64.1%

3V high speed toys motor FK-130PH



Side mirror actuator motor
Aeromodelling motor
Remote control plane motor
Weight: 24g Approx
ISO/TS16949 certified company



NOTE: The Models listed below are just an exhibition of our existing design. We offer specific motor design for every customer.



FK-130H

Model No. Main Performance
Rated Voltage No Load At Maximum Efficiency At Stall
Speed Current Speed Current Torque Output Eff. Current Torque
  V r/min A r/min A g.cm W % A g.cm
FK-130PH-2758 6.0 CONST 24,000 0.49 19,550 2.16 42 8.34 64.4 9.5 220
FK-130PH-4027 3.0 CONST 26,500 1.11 21,450 4.71 37 7.98 56.4 20 190
FK-130PH-2858 7.2 CONST 28,510 0.49 24,430 2.08 41 9.99 66.43 15.5 250
FK-130PH-3730 3.0 CONST 24,000 0.76 19,900 3.7 35 7.11 64.1 18 204
FK-130PH-3148 4.0 CONST 20,450 0.46 17,212 2.45 27 4.76 48.7 13 170
FK-130SH-17102 6.0 CONST 14,000 0.15 11,452 0.67 24 2.78 68.7 3.03 130
FK-130SH-10385 12.0 CONST 7,200 0.07 5,400 0.21 28 1.53 60.7 0.63 10



Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in   1mm=0.039in   1g=0.035oz



  3V high speed toys motor FK-130PH

3V high speed toys motor FK-130PH







  • Side mirror actuator motor
  • Aeromodelling motor
  • Remote control plane motor

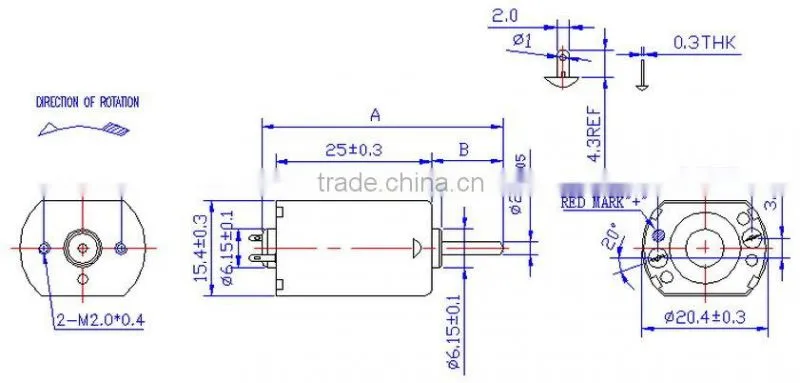

  • Dimension:dia. dia. 20.4 x 15.4 Thk. x 25 L. shaft O.D. 2.0 mm
  • Basic Structure: SECD housing / SECC end cap
  • Application:  Aeromodelling
  • Weight: Approx. 24g





Basic Structure of Chengfang Motors

Customized Options

·2-pole stator
·Sr ferrite permanent magnet
·3, 5, 7, 8, 9, 12,16 slots armature
·Silicon-steel lamination with epoxy coating
·High-carbon steel shaft
·Cu-Ag alloy commutator
·Copper-graphite brushes
·Be-Cu leaf-brush commutating system
·SECD round / flat type housing
·SECD end cap / glassfiber reinforced PA6/6 end cap
·Cylinder / self-aligning Cu-Fe alloy sintered bushes
·155oC (class F) magnet wire











·Leadwires with connector / pins
·EMI suppression components
·PTC or thermostate protection
·Built-in AC/DC rectifier
·Built-in cooling fan
·Multiple output shaft
·diamond knurls, straight knurls, D-cut, stepped shaft
·Shaft-mounted gears, eccentric gears, belt pulleys
·Stainless steel (SS304, SS420) shaft
·Ball bearing
·Cage-brush commutating system
·Precious metal brush / commutator
·Hall encoder
·Low-cogging torque design
·180oC (class H), 200oC (class C) magnet wire
·-40oC ~ 220oC bearing lubricant
·Neodymium magnets
