Help CenterSmall DC Motors Brushes FT-280A
Negotiable
MOQ: 20000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Chengfang Motor
Model Number:
FK-280SA-2585
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
dc Motor High Speed | RS-540ANegotiableMOQ: 10 Pieces -
3V High Speed Toys Motor FK-130PHUS$ 0.3 - 0.8MOQ: 5000 Pieces
-
Micro Permanent Magnet Electric Motor 24v 500w for Electric Model | RS-550HNegotiableMOQ: 10000 Pieces
-
High Torque dc Electric Motor for PumpsUS$ 0.5 - 0.8MOQ: 5000 Pieces
-
12V High Torque dc Electric Motor for Water PumpsUS$ 0.5 - 0.8MOQ: 5000 Pieces
Place of Origin
Guangdong, China
Brand Name
Chengfang Motor
Model Number
FK-280SA-2585
Certification
ROHS, Other, ROHS, ISO/TS 16949: 2009, ISO/TS 16949:2009
Type
Micro Motor
Torque
22.2mNm
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Other
Speed(RPM)
8060
Output Power
2.47
Voltage(V)
4.8
Efficiency
Other, 67.8

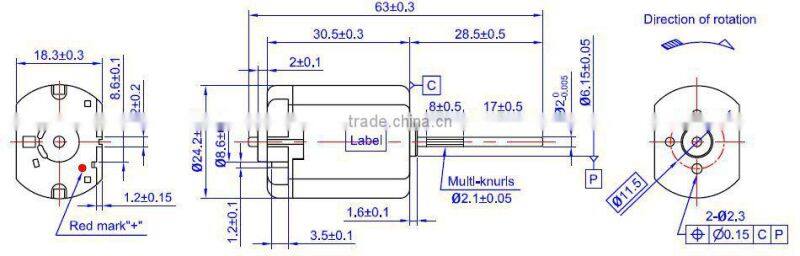

Detailed Dimension
Performance Data
| Model No. | Main Performance | |||||||||
| Rated Voltage | No Load | At Maximum Efficiency | At Stall | |||||||
| Speed | Current | Speed | Current | Torque | Output | Eff. | Current | Torque | ||
| V | r/min | A | r/min | A | g.cm | W | % | A | g.cm | |
| RS-280SA-2585 | 4.8 CONST | 8,060 | 0.14 | 6,804 | 0.76 | 3.46 | 2.47 | 67.8 | 4.1 | 22.2 |
Customized Options
| Item | Customized Options | |
| 1 | EMI suppression | chokes |
| capacitors | ||
| varistor | ||
| 2 | Built in components | PTC |
| thermostate protection | ||
| cooling fan | ||
| 3 | Shaft processing | knurling |
| d-cut | ||
| spline | ||
| step shaft | ||
| double output shaft | ||
| 4 | Shaft-mounted components | gear |
| eccentric wheel | ||
| belt pulleys | ||
| 5 | Multiple material choice | staninless steel |
| ball bearing | ||
| brush cage commutating system | ||
| precious metal brush | ||
| magnet wire | ||
| Neodymium magnets | ||
| any others | ||
Certifications

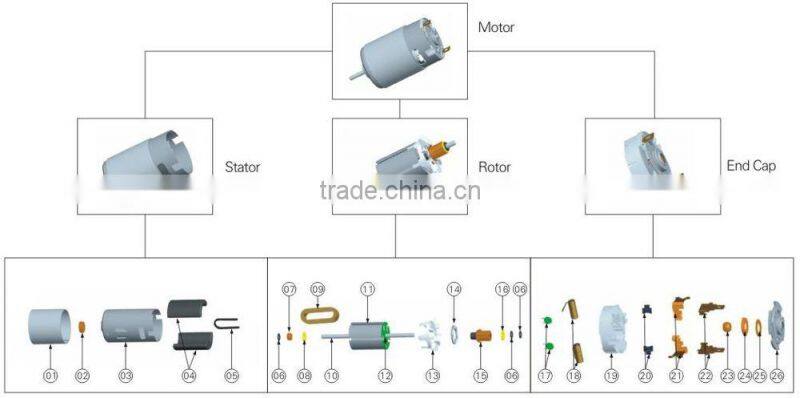

Basic Structure
| 1 | Flux Ring | 10 | Shaft | 19 | Terminal holder |
| 2 | Bearing | 11 | Rotor lamination | 20 | Brush |
| 3 | Housing | 12 | Insulation coating | 21 | Brush leaf |
| 4 | Magnet | 13 | Cooling fan | 22 | Terminal |
| 5 | Caliper | 14 | Varistor | 23 | Bearing |
| 6 | Adjusting spacer | 15 | Commutator | 24 | Bearing cover |
| 7 | Brass spacer | 16 | Oil stop spacer | 25 | Retaining spacer |
| 8 | Insulating spacer | 17 | Capacitor | 26 | Steel end cap |
| 9 | Coil | 18 | Choke |
