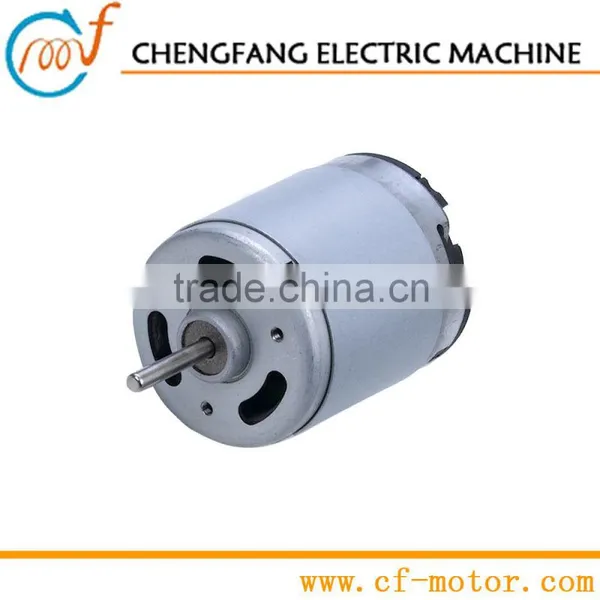

24v dc Motor Low Rpm Low Speed Rotating Motor | RS-850A
US$ 2.7 - 3.7
MOQ: 10000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CF Motor, Chengfang
Model Number:
RS-850SA, RS-850A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Motors,electric Tools Motor RS-850A, Fan MotorUS$ 2.7 - 4MOQ: 5000 Pieces -
dc Motor 48v 500w RS-997HUS$ 2.58 - 3.88MOQ: 3000 Pieces
-
2 hp Electric Motor Price RS-997HUS$ 2.58 - 3.88MOQ: 3000 Pieces
-
dc Motor Brushes 12v RS-997HUS$ 2.58 - 3.88MOQ: 3000 Pieces
-
dc 24v Cooling Fan Motor RS-997HUS$ 2.58 - 3.88MOQ: 3000 Pieces
Place of Origin
Guangdong, China
Brand Name
CF Motor, Chengfang
Model Number
RS-850SA, RS-850A
Overview Information
| Input voltage | 1.2VDC - 240VAC | |
| Products | 1 series | Φ20mm |
| 2 series | Φ24mm | |
| 3 series | Φ28mm | |
| 5 series | Φ36mm | |
| 7 series | Φ42mm | |
| 8 series | Φ45mm | |
| 9 series | Φ52mm | |

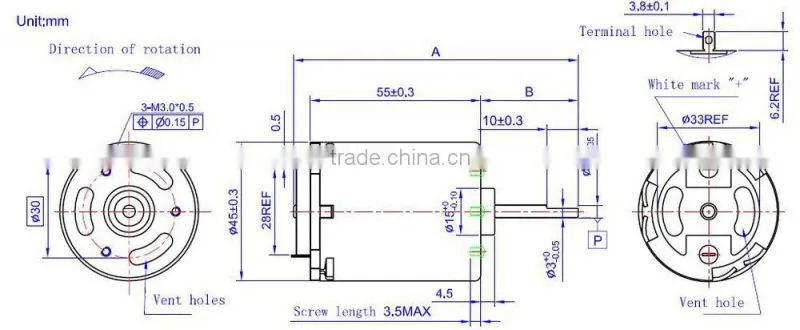

Detailed Dimension
Performance Data
| Model No. | Main Performance | |||||||||
| Rated Voltage | No Load | At Maximum Efficiency | At Stall | |||||||
| Speed | Current | Speed | Current | Torque | Output | Eff. | Current | Torque | ||
| V | r/min | A | r/min | A | g.cm | W | % | A | g.cm | |
| RS-850SA-23236 | 12.0 CONST | 2,000 | 0.09 | 1,714 | 0.49 | 163 | 2.71 | 46.6 | 2.7 | 1050 |
| RS-850SA-29154R | 24.0 CONST | 5,200 | 0.18 | 4,487 | 1.15 | 438 | 19.29 | 69.89 | 7.31 | 3200 |
Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in 1mm=0.039in 1g=0.035oz
Certifications
Basic Structure
| Basic Structure of Chengfang Motors | Customized Options |
| 2-pole stator * Ferrite permanent magnet * 3, 5, 7, 8, 9, 12,16 slots armature * Silicon-steel lamination with epoxy coating * High-carbon steel shaft * Cu-Ag alloy commutator * Copper-graphite brushes * Be-Cu leaf-brush commutating system * SECD round / flat type housing * SECD end cap / glassfiber reinforced PA6/6 end cap * Cylinder / self-aligning Cu-Fe alloy sintered bushes * 155℃ (class F) magnet wire |
* Leadwires with connector / pins * EMI suppression components * PTC or thermostate protection * Built-in AC/DC rectifier * Built-in cooling fan * Multiple output shaft * diamond knurls, straight knurls, D-cut, stepped shaft * Shaft-mounted gears, eccentric gears, belt pulleys * Stainless steel (SS304, SS420) shaft * Ball bearing * Cage-brush commutating system * Precious metal brush / commutator * Hall encoder * Low-cogging torque design * 180℃class H), 200℃ (class C) magnet wire * -40℃ ~ 220℃ bearing lubricant * Neodymium magnets |

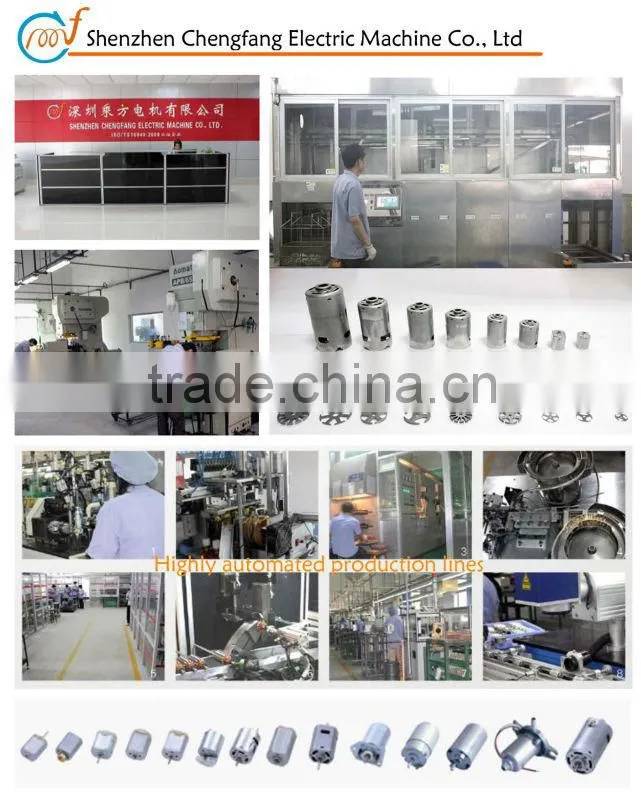

Factory Tour
Send Inquiry to This Supplier
Mr. Johnny Wang
Overseas Sales Engin
Shenzhen Chengfang Electric Machine Co., Ltd.
Shenzhen, Guangdong, China
Business Type
Manufacturer
Year Established
2003
Factory Size
10,000-30,000 square meters
Total Employees
501 - 1000 People
