Electric Motors,electric Tools Motor RS-850A, Fan Motor

Electric Motors,electric Tools Motor RS-850A, Fan Motor thumbnail-1
Electric Motors,electric Tools Motor RS-850A, Fan Motor photo-1
US$ 2.7 - 4 MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CF Motor
Model Number:
RS-850A
Contact Supplier Request Quote Chat Now
Shenzhen Chengfang Electric Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CF Motor
Model Number RS-850A
Usage Fan, Other, Fan, fitness apparatus
Certification CCC, CE, ROHS, UL
Type Micro Motor
Construction Permanent Magnet
Commutation Brush
Protect Feature Other
Speed(RPM) 3000~30000
Voltage(V) lower than 60V

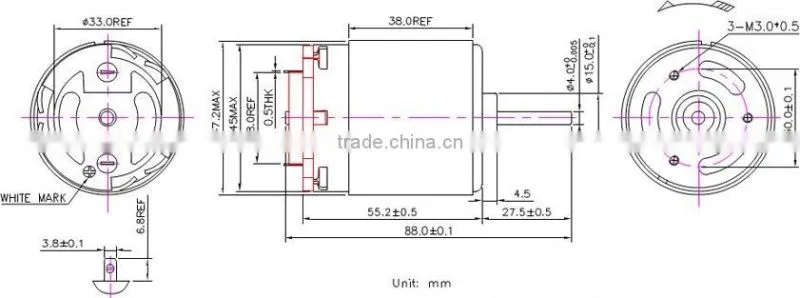

electric motors,electric tools motor RS-850A, fan motor

Model No. Main Performance
Rated Voltage No Load At Maximum Efficiency At Stall
Speed Current Speed Current Torque Output Eff. Current Torque
  V r/min A r/min A g.cm W % A g.cm
RS-850SA-23236 12.0 CONST 2,000 0.09 1,714 0.49 163 2.71 46.6 2.7 1050
RS-850SA-29154R 24.0 CONST 5,200 0.18 4,487 1.15 438 19.29 69.89 7.31 3200
RS-850SA-29146R 24.0 CONST 6,135 0.19 5,406 1.05 391 21.75 86.24 10.13 3300
RS-850SA-29134R 24.0 CONST 6,000 0.19 5,212 1.27 428 21.89 71.82 8.51 3260
RS-850SA-23245R 24.0 CONST 3,300 0.1 2,838 0.59 304 8.9 62.5 3.6 2170
RS-850SA-27190R 12.0 CONST 2,250 0.11 1,893 0.58 254 4.93 70.4 3.1 1600



Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in   1mm=0.039in   1g=0.035oz









  • Treadmills Motor
  • Dimension: φ 46.2 x 55.2 L. shaft O.D. 4.0 mm
  • Basic Structure: SECD housing / Plastic end cap
  • Application: Slimming product / Generator
  • Weight: Approx. 300g


Basic Structure of Chengfang Motors

Customized Options

·2-pole stator
·Sr ferrite permanent magnet
·3, 5, 7, 8, 9, 12,16 slots armature
·Silicon-steel lamination with epoxy coating
·High-carbon steel shaft
·Cu-Ag alloy commutator
·Copper-graphite brushes
·Be-Cu leaf-brush commutating system
·SECD round / flat type housing
·SECD end cap / glassfiber reinforced PA6/6 end cap
·Cylinder / self-aligning Cu-Fe alloy sintered bushes
·155oC (class F) magnet wire











·Leadwires with connector / pins
·EMI suppression components
·PTC or thermostate protection
·Built-in AC/DC rectifier
·Built-in cooling fan
·Multiple output shaft
·diamond knurls, straight knurls, D-cut, stepped shaft
·Shaft-mounted gears, eccentric gears, belt pulleys
·Stainless steel (SS304, SS420) shaft
·Ball bearing
·Cage-brush commutating system
·Precious metal brush / commutator
·Hall encoder
·Low-cogging torque design
·180oC (class H), 200oC (class C) magnet wire
·-40oC ~ 220oC bearing lubricant
·Neodymium magnets
