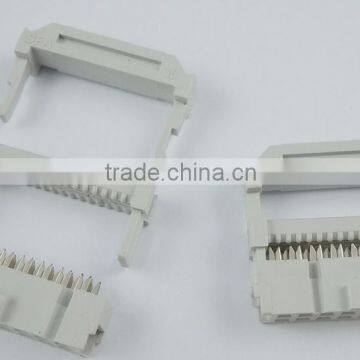

2.54mm Pitch 2x8 Pin 16 Pin IDC FC Female Header Socket Connector
- 165000 Set / Sets per Month
- Shenzhen
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | HXE | Model Number: | HXE-IDC-012 |
Type: | Other, IDC | Application: | Other, Internet Data | Gender: | Other, Female, Female |
Product Description
Pitch 2.54mm.
Gender: Female
Number of Pins: 2x8Pin
Connector type: IDC
Type of Row: Double-Row
Current Rating: 3AMP
Operation Temperature: -40°C to +105°C
Contact Resistance: 20mΩ Max.
Insulation Resistance: 1000MΩ Min.
Withstanding Voltage: AC 1000V
Insulator Material: Polyester(UL94V-0)
Standard: PBT
Contact Material: Brass
Contact Plating: Au or Sn over 50 u'' Ni
Dongguan Hexie Electronic Co., Ltd. has more than 10 years of experience in the R&D, production and sale of electromotive model connectors and various plugs. Our products are widely used for model planes, model cars, model ships and digital fields.
Characteristics of our products (with UL certificates):
1. Banana plugs
Two types: jointing and welding
The sizes includes2.0mm, 3.0mm, 3.5mm, 4.0mm, 5.0mm, 5.5mm, 6.0mm, and 8.0mm, 10.0mm
Surfaces are nickel plated or gold plated.
2. T-plugs
We have common, mini and special three specifications with black, red and green insulators.
Our conductor's surface is gold-plated or nickel-plated, which ensures the excellent conductivity, electric current: 70A-80A.
3. Other plugs: TRX, XT60, XT150, MPX, EC2, EC3 and EC5
4. Alligator clips
Mainly used to examination and detection or used as charging clamps;
Our model includes small, medium, large.
5. Switch series: JR switch, FUTABA switch, LED switch etc.
The sizes include small, medium and large
6. Balance adaptor: TP/FP, TP-FP-02, HP-PQ, EH, EH-02, JST-XH6S,
Paraboard XH, TP, HP (T plug, XT60, EC3, EC5,Bare Lead, HXT 4MM).
5. Silicone wires from 6AWG~30AWG Temperature range: -60 degrees to 200 degrees
Our conductor uses 0.05 to 0.08mm copper lines of 11-2000 pieces (namely model number from 8AWG to 34AWG).
This is an ideal power supply line with standing high temperature and heavy current power.
6. Connectors: all coupling lines of plane models, car models and ship models.
7. Plane model lines: servo lead, extension wires, ignition lines, switch wires, Y-type leads, charger leads, electrical source lines, switch box lines and electronic voltmeter lines
8. Terminal lines: JR lines, Futaba lines, JST lines, battery lines and balance charger plug lines
We keep the management policy of "Innovation and highly efficient" and follow the enterprising spirit to meet our customers' needs. At present, our products are sold well at home and abroad.
