Brife Introduction
The micro spraying hose is also called multi-hole tape,spraying tape,micro spraying irrigation tape.We make many small holes on the pressed flat tape mechanically or by laser.The tape with three ,five or more holes for each group is paved on the ground and the water will go up and down under the pressure.The tape with one or two hole is paved under the film is for irrigation.The micro spraying tape is also one of the water saving irrigation products.Due to different size and pressure,the spraying width range can be from 2m to 8m.
Application
It is widely used in lawn,trees,greenhouse,etc.

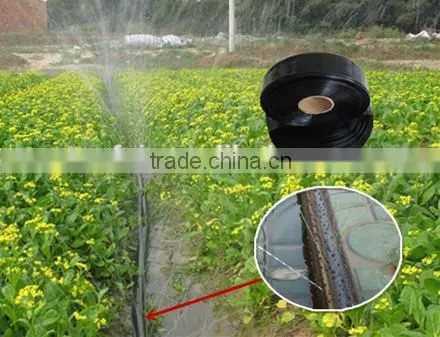

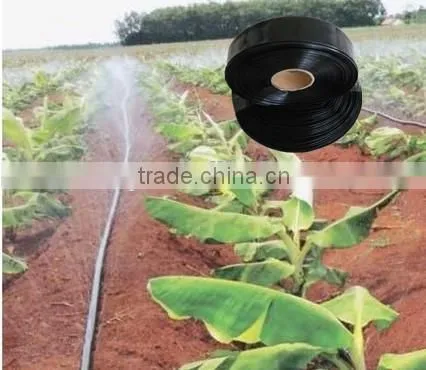

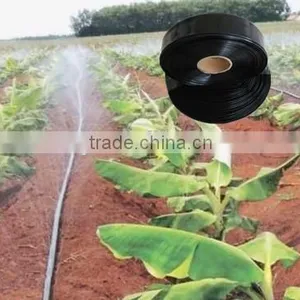

Application legend
Product Common Specification
Normal working pressure:0.1 MPa
|
Diameter (mm) |
Flod Diameter (mm) |
Wall Thickness (mm) |
Hole Spacing (mm) |
Hole Type |
Paving Length (m) |
Spray width (m) |
Roll Length (m) |
| φ25 | 39 | 0.2-0.4 | ≥150 | Two Holes | 50 | 2 | 200 |
| φ32 | 50 | 0.2-0.4 | ≥150 | Diagonal Three Holes | 50 | 3 | 200 |
| φ40 | 63 | 0.2-0.4 | ≥150 | Diagonal Three Holes | 80 | 3 | 200 |
| φ50 | 78.5 | 0.2-0.4 | ≥200 | Diagonal Five Holes | 100 | 4 | 150 |
| φ63 | 99 | 0.2-0.4 | ≥250 | Diagonal Five Holes | 100 | 4 | 150 |
| φ75 | 118 | 0.2-0.4 | ≥250 | Diagonal Five Holes | 100 | 6 | 150 |
| φ90 | 141 | 0.3-0.5 | ≥300 | Diagonal Seven Holes | 150 | 7 | 100 |
| φ110 | 173 | 0.3-0.5 | ≥300 | Diagonal Seven Holes | 150 | 8 | 100 |
Single hole is available .Special size can be customized.
Package
Packaging&Delivery:

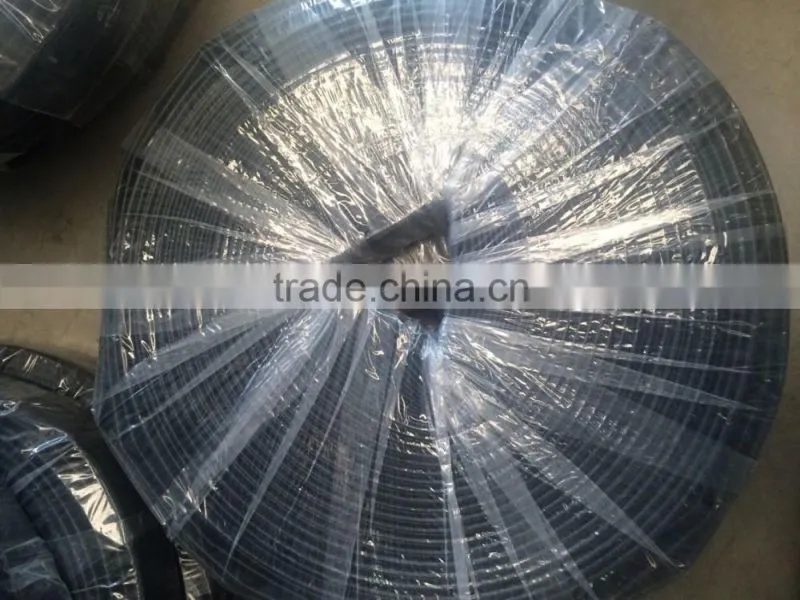

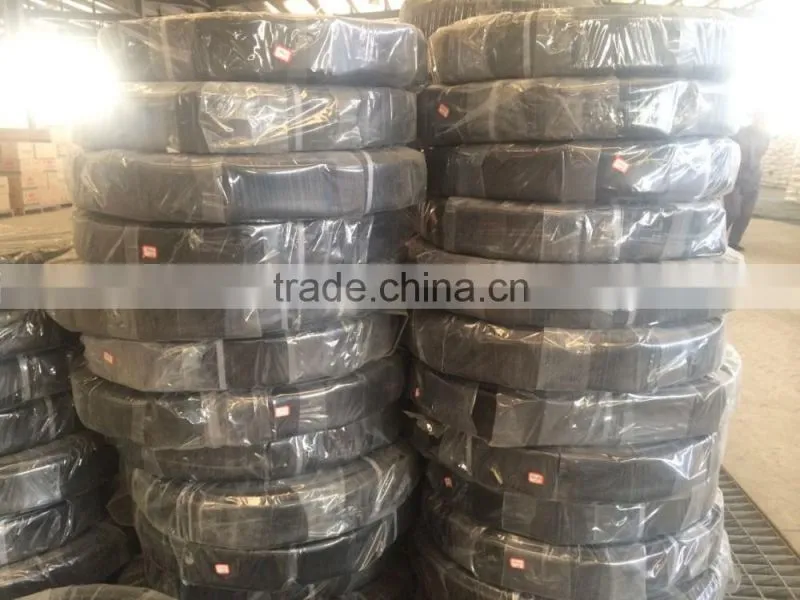

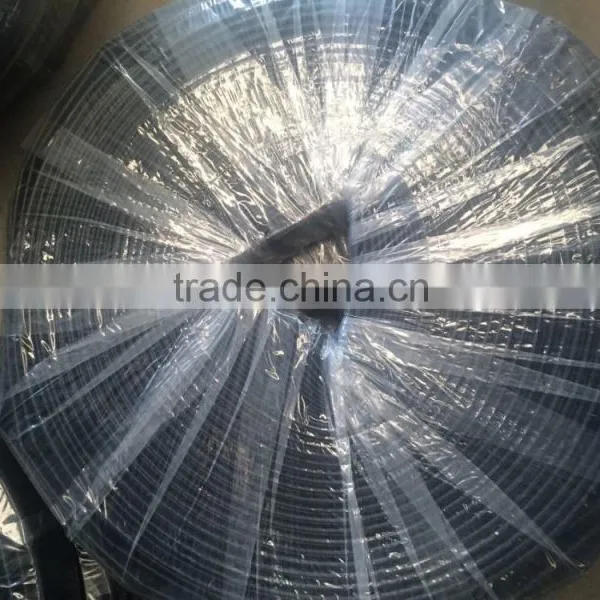

1). Packaging: inner plastic film, carton box outside.
2). Delivery period: 5-10 working days
3). By air: TNT, DHL, or delivery to guangzhou
4). Sea shipping port: TIANJIN, CHINA
Payment terms:
T/T, Western Union
Sales Manager: LYNDA SONG & LILY LEE
have been working in ZHIFU Plastic Machinery Co.,Ltd for more than 7 years.
give you the best service and the most professional products introduction.
any questions,please feel free to contact us.
looking forward to cooperate with you sencerely
