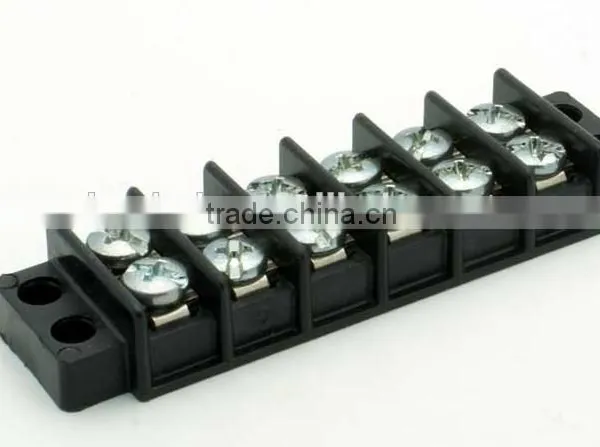

6Position Terminal Strip 30A
6 Position Dual Row Terminal Block. Chassis Mount Style mounts easily with 2 x #6 screws or double sided tape (not included). Accepts bare wire, spade or ring terminals
Current&Voltage Rating: 30A, 300V
Center Spacing: 9.5mm
Wire Range: 14AWG - 22AWG
Screw Size: #6-32 Phillips / Slot
Distance Between Barriers: 7.6mm
Breakdown Voltage: 3600V
Terminal Contacts: Tin over Brass, Zinc Plated Screws
Dongguan Hexie Electronic Co., Ltd. has more than 10 years of experience in the R&D, production and sale of electromotive model connectors and various plugs. Our products are widely used for model planes, model cars, model ships and digital fields.
Characteristics of our products (with UL certificates):
1. Banana plugs
Two types: jointing and welding
The sizes includes2.0mm, 3.0mm, 3.5mm, 4.0mm, 5.0mm, 5.5mm, 6.0mm, and 8.0mm, 10.0mm
Surfaces are nickel plated or gold plated.
2. T-plugs
We have common, mini and special three specifications with black, red and green insulators.
Our conductor's surface is gold-plated or nickel-plated, which ensures the excellent conductivity, electric current: 70A-80A.
3. Other plugs: TRX, XT60, XT150, MPX, EC2, EC3 and EC5
4. Alligator clips
Mainly used to examination and detection or used as charging clamps;
Our model includes small, medium, large.
5. Switch series: JR switch, FUTABA switch, LED switch etc.
The sizes include small, medium and large
6. Balance adaptor: TP/FP, TP-FP-02, HP-PQ, EH, EH-02, JST-XH6S,
Paraboard XH, TP, HP (T plug, XT60, EC3, EC5,Bare Lead, HXT 4MM).
5. Silicone wires from 6AWG~30AWG Temperature range: -60 degrees to 200 degrees
Our conductor uses 0.05 to 0.08mm copper lines of 11-2000 pieces (namely model number from 8AWG to 34AWG).
This is an ideal power supply line with standing high temperature and heavy current power.
6. Connectors: all coupling lines of plane models, car models and ship models.
7. Plane model lines: servo lead, extension wires, ignition lines, switch wires, Y-type leads, charger leads, electrical source lines, switch box lines and electronic voltmeter lines
8. Terminal lines: JR lines, Futaba lines, JST lines, battery lines and balance charger plug lines
We keep the management policy of "Innovation and highly efficient" and follow the enterprising spirit to meet our customers' needs. At present, our products are sold well at home and abroad.
