Micro Spraying Tape Making Machine
Features of the equipment:
1.extruder and tractor all adopt frequency conversion control system,which has the characteristics of easy operation,reliable running,stable working and low energy consumption.
2.screw and bolt of the extreder adopts special design,and it features excellent plasticationg capacity and stable production.
3.extruder and mold adopt sutomatic temperature control system so that the temperature-controlling is exact and also it can save energy effectively
4.unique vacuum control device,precise vacuum degree control,small micro-spraying tape diameter error.
control device adopts servo motor control, control accuracy is high.position error is small.
6.punch on the hole drilling machine is made of special steel and it has long service life.
7.holedrilling machine adopts advanced servo unit control,human-computer interface operation,punching accuracy is high,water outlet space error is small.high degree of automation.
8.double-station winder make changing roll is convenient and quick,and equip the meter-counting device,rolling length can be settled by self( ≤200m).after reaching setting length,it will be alarming.
Specifcation:
Modle |
SJWP-60 |
Screw Diameter |
Φ60mm |
Tape Diameter |
Φ25mm-Φ75mm |
Main driving power |
18.5kw |
Max.extruding capacity |
50kg/h |
Filter changing way |
Durable filter |
Driving power of tractor |
1.5kw |
Winding motor |
0.75kw*2 |
Installation power |
48kw |
Production speed |
≤35m/min |
Overall dimension(L*W*H) |
11m*2.25m*3.6m |
Application range and advantage :
Application rangeit's applicated in green house, plain and hillside for the growth of fruit trees, kaleyard, culture of seedling, flower, lawn, vegetables etc.
Advantage:
1. Anti-clogging function is strong and also it has low demand for the filtration of
water source.
2. Low working pressure and low expenditure for the parts of water source and artery of water transportation.
3. High utilization of water and obvious effectiveness of water-saving..
4. It could be used to fertilize and spray pesticide, the water dripping volume is even and wont harden the soil or washout the fertilizer.

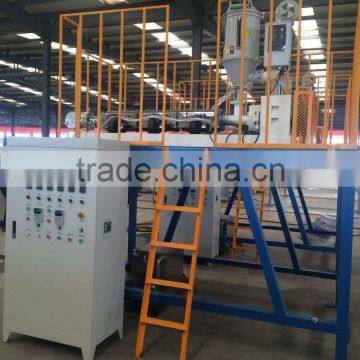

Pictures of machine and tape:

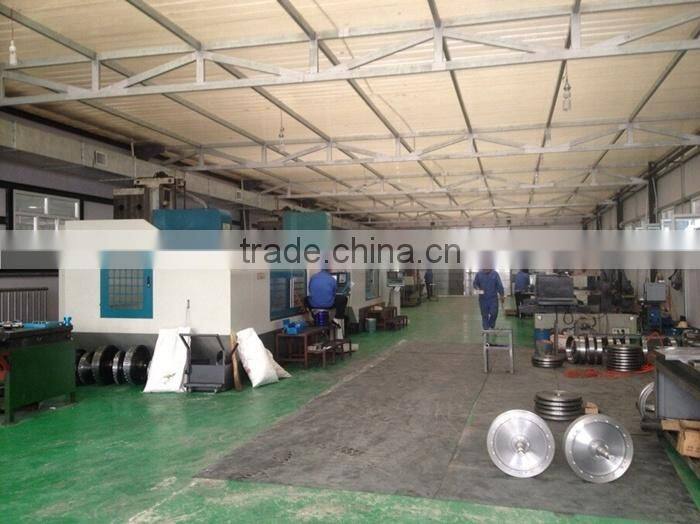

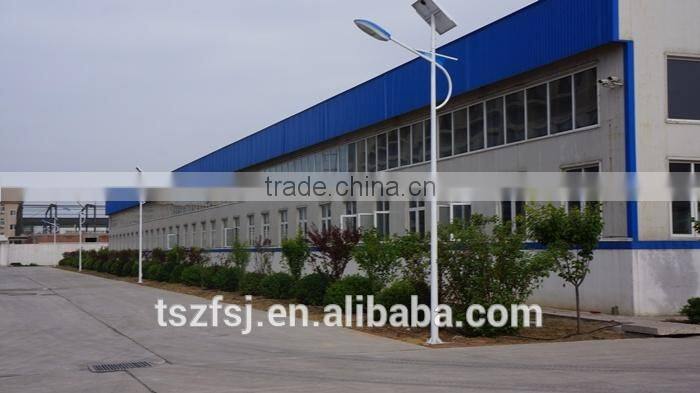

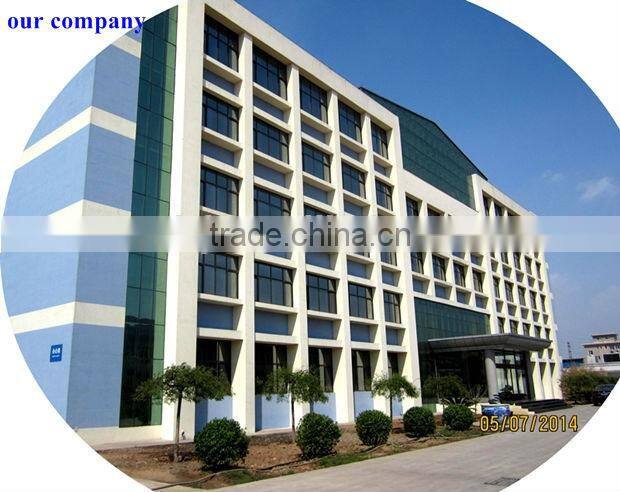

Company Show
