Toy Gun Motor RS-360SHV,micro Motor Carbon Brush, Child Toy Motors

Toy Gun Motor RS-360SHV,micro Motor Carbon Brush, Child Toy Motors thumbnail-1
Toy Gun Motor RS-360SHV,micro Motor Carbon Brush, Child Toy Motors photo-1
Negotiable MOQ: 10000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CF-Motor, CF-Motor
Model Number:
RS-360SHV, RS-360H/365H
Contact Supplier Request Quote Chat Now
Shenzhen Chengfang Electric Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CF-Motor, CF-Motor
Model Number RS-360SHV, RS-360H/365H
Usage Home Appliance
Certification CCC, CE, ROHS, UL
Type Gear Motor
Torque 54.9mNm
Construction Permanent Magnet
Commutation Brush
Efficiency Other

Toy gun motor RS-360SHV,micro motor carbon brush, child toy motors



Hand dryer motor
Weight: Approx.55g
Application:  Massager/Toys/Hair Dryer/Hand Dryer
dia. 27.7 x 32.6 L.



The models we list below are part of our existing designs.

We offer specific motor design for every customer.



RS-360H

Model No. RS-360SHV-3562
Rated voltage 6VDC
No Load Speed(r/min) 15500
Current(A) 0.73
At Max Efficiency Speed(r/min) 12661
Current(A) 3.43
Torque(mNm) 10.06
Output(W) 13.34
Eff.(%) 63.9
At stall Current(A) 15.5
Torque(mNm) 54.9

 Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in   1mm=0.039in   1g=0.035oz

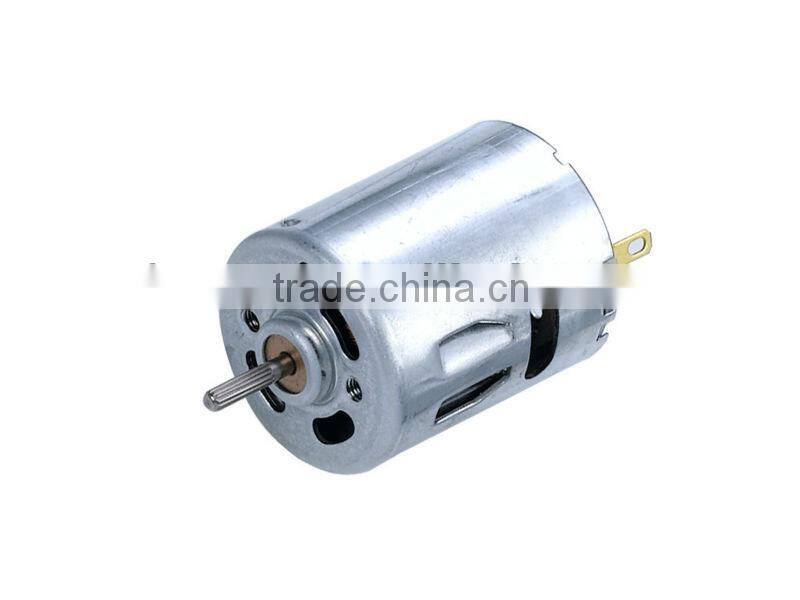

Toy gun motor RS-360SHV,micro motor carbon brush, child toy motors

Toy gun motor RS-360SHV,micro motor carbon brush, child toy motors







  • Hand dryer motor

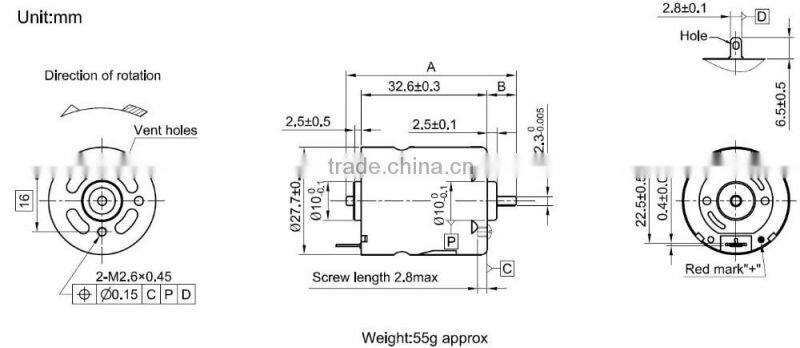

  • Dimension: φ 27.7 x 32.6 L. shaft O.D. 2.3 mm
  • Basic Structure: SECD housing / SECC end cap
  • Application: Massager/Toys/Hair Dryer/Hand Dryer
  • Weight: Approx. 55g


Basic Structure of Chengfang Motors

Customized Options

·2-pole stator
·Sr ferrite permanent magnet
·3, 5, 7, 8, 9, 12,16 slots armature
·Silicon-steel lamination with epoxy coating
·High-carbon steel shaft
·Cu-Ag alloy commutator
·Copper-graphite brushes
·Be-Cu leaf-brush commutating system
·SECD round / flat type housing
·SECD end cap / glassfiber reinforced PA6/6 end cap
·Cylinder / self-aligning Cu-Fe alloy sintered bushes
·155oC (class F) magnet wire











·Leadwires with connector / pins
·EMI suppression components
·PTC or thermostate protection
·Built-in AC/DC rectifier
·Built-in cooling fan
·Multiple output shaft
·diamond knurls, straight knurls, D-cut, stepped shaft
·Shaft-mounted gears, eccentric gears, belt pulleys
·Stainless steel (SS304, SS420) shaft
·Ball bearing
·Cage-brush commutating system
·Precious metal brush / commutator
·Hall encoder
·Low-cogging torque design
·180oC (class H), 200oC (class C) magnet wire
·-40oC ~ 220oC bearing lubricant
·Neodymium magnets
