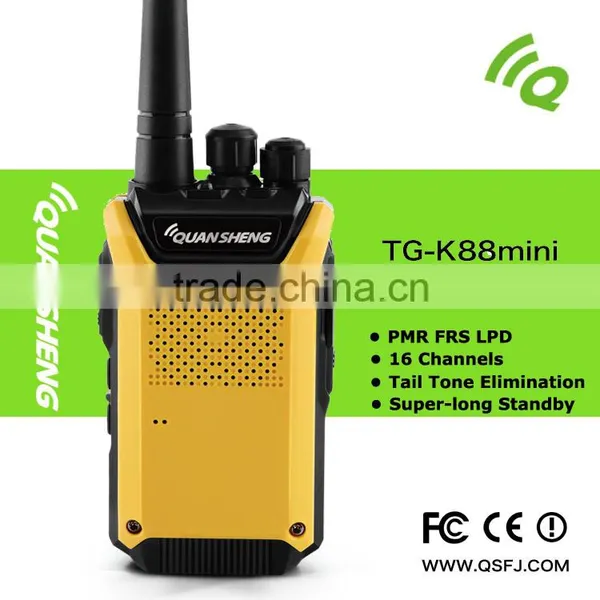

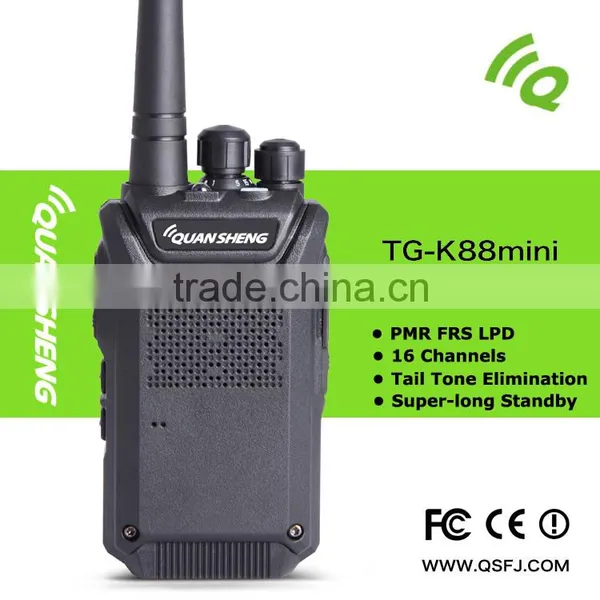

Mini 2W Output Power 350-390Mhz Two Way Radio

Mini 2W Output Power 350-390Mhz Two Way Radio thumbnail-1
Mini 2W Output Power 350-390Mhz Two Way Radio thumbnail-2
Mini 2W Output Power 350-390Mhz Two Way Radio thumbnail-3
Mini 2W Output Power 350-390Mhz Two Way Radio photo-1
Mini 2W Output Power 350-390Mhz Two Way Radio photo-2
Mini 2W Output Power 350-390Mhz Two Way Radio photo-3
Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
QuanSheng
Model Number:
TG-K88mini
Contact Supplier Request Quote Chat Now
Fujian Nanan Quansheng Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen / shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name QuanSheng
Model Number TG-K88mini
Type Handheld
Dimensions 101*52*30MM
Frequency Range 400-480/350-390/136-174Mhz
Storage Channel 16
Talk Range 1-3km

mini 2W output power 350-390Mhz two way radio - Quansheng TG-K88mini

01. 100 hours super long standby time

02. All colors can be made (we have Injection Department)

03. PC programmable

04. Channel scan

05. Time-out-timer (TOT)

06. Low power alarm

07. Wide/Narrow bandwidth

08. Squelch level adjustable

09. H/L output power selective

10. Voice prompt

11. CTCSS/DCS

12. Dual-watch operation

13. PTT-ID

14. DTMF function

15. 1750Hz call tone

16. Jacklight

17. Tail Tone Elimilation

18. OEM, ODM available





General:

Frequency range UHF: 400-480MHz

VHF: 136-174MHz

Channel 16

Battery 1500mAh(Li-ion)

Size(mm) 101 X 52 X 30mm

Channel Spacing 25 /12.5KHz

Operating Voltage 3.6V

Antenna Impedance 50Ω

Operating Temperature -25°C~+65°C

Frequency Stability ±2.5ppm

Weight(g) 145.5g

Packing(pcs) 20 or 40PCS/CTN



Transmitter:

Output Power 2W

Modulation 16KΦF3E/11KΦF3E

Maximum Deviation ≤5.0KHz(W)/ ≤2.5KHz(N)

Stray Power ≤7.5uW

Preemphasis Character 6dB/

CTCSS/DCS Frequency Deviation 0.75±50Hz(W)/ 0.37±30Hz(N)

Modulation Sensitivity 12mV

Emission Current ≤1.3A

Modulation distortion ≤5%





Receiver:

Sensitivity -122dBm(12dB SINAD)

Adjacent Channel Power 5KHz

Intermodulation ≥65dB(W) / ≥60dB(N)

Spurious Response Rejection ≥65dB

Blocking ≥85dB

Audio Power Output ≤0.5W

Audio Distortion ≤10%

Adjacent Channel Selectivity ≤5%







 mini 2W output power 350-390Mhz two way radiomini 2W output power 350-390Mhz two way radiomini 2W output power 350-390Mhz two way radiomini 2W output power 350-390Mhz two way radiomini 2W output power 350-390Mhz two way radio

  mini 2W output power 350-390Mhz two way radio





QuanSheng is one of the lead manufacturer of handheld radios

Design & manufacture 2 way radio for 20 years,

With ISO, CE, FCC and Rohs,

Taking 30,000 square meters,

with 500 people, 7 product line, and 9 SMT lines.

Export 1,000,000 pcs radios to 60 countries each year.



Welcome and thank you for visiting our website.

Please send us inquiry or SMS us on Trade Manager.

It is our honor to help you.

We promise to response in 24 hour.
