5W Power 350-390Mhz Two Way Radio

5W Power 350-390Mhz Two Way Radio thumbnail-1
5W Power 350-390Mhz Two Way Radio photo-1
Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
QuanSheng
Model Number:
TG-330
Contact Supplier Request Quote Chat Now
Fujian Nanan Quansheng Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen / shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name QuanSheng
Model Number TG-330
Type Handheld
Dimensions 121*57*37mm
Frequency Range 136-174/350-390/400-480MHz
Storage Channel 16
Talk Range 5-8km

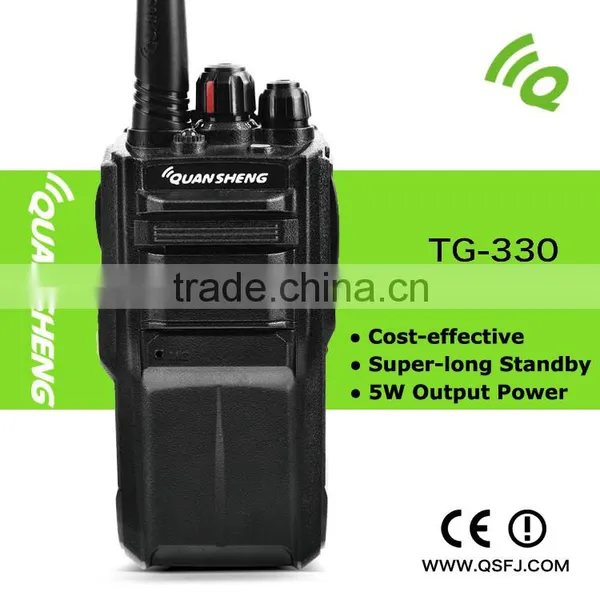

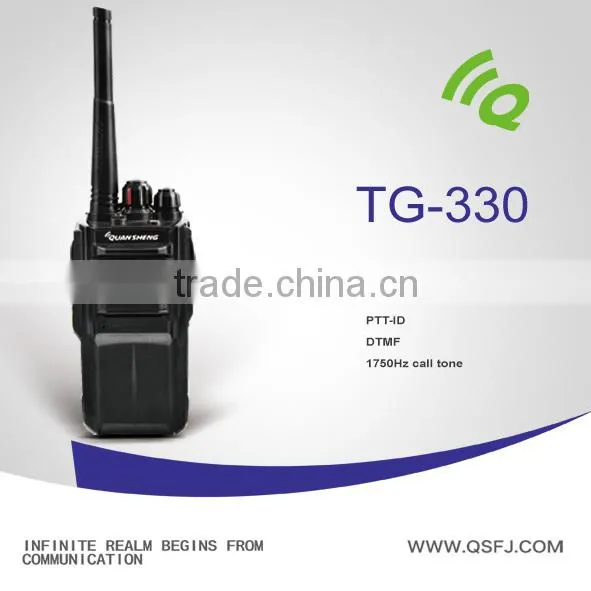

IP54 waterproof UHF VHF two way radio - QuanSheng TG-330

This QuanSheng TG-330 two way radio is a compact radio with PTT-ID, DTMF, 100hours standy by time,

pretty suitable for security, restaurant, construction,etc





1. 100 hours super-long standby time

2. Jacklight

3. PC programmable

4. Channel scan

5. TOT

6. Low power alarm

7. Wide/ Narrow bandwidth

8. Squelch level adjustable

9. H/L output power selective

10. Voice prompt

11. CTCSS/DCS

12. PTT-ID

13. DTMF

14. 1750Hz call tone





GENERAL

Frequency Range                                   VHF: 136-174MHz/350-390Mhz

                                                                UHF: 400-480MHz

Channel                                                  16

Channel Spacing                                     25 /12.5KHz

Operating Voltage                                   7.2V

Antenna Impedance                                50Ω

Operating Temperature                          -25°C~+65°C

Frequency Stability                                 ±2.5ppm

Battery                                                    1500mAh (Li-ion)

Dimensions (H*W*D)                               121 X 57X 37mm

Weight                                                     222g



Transmitter

Output Power                                            5W

Modulation                                                16KΦF3E/11KΦF3E

Maximum Deviation                                   ≤5.0KHz(W)

Spurious Emission                                    ≤65dB

Audio Distortion                                        ≤5%



Receiver

Sensitivity                                                  ≤0.25/0.28μV

Adjacent Channel Selectivity                     70/50dB

Intermodulation                                          60dB

Spurious Response Rejection                   70dB

S/N                                                            43/38dB

Rated Audio Power Output                        ≤0.5W

Rated Audio Distortion                               ≤5%









QuanSheng Electronics

 is one of the lead manufacturer of handheld radios

Top ten famous handheld radio brand in China

Design & manufacture 2 way radio for 20 years,

With ISO, CE, FCC and Rohs,

Taking 30,000 square meters,

with 500 people, 7 product line, and 9 SMT lines.

Export 1,000,000 pcs two way radios to 60 countries each year.
