flat dripper drip irrigation dripper mold.
Technical parameters of flat dripper injection mold
Cavity quantity |
Thirty-two cavities |
Sixty-four cavities |
Note |
Overall dimensions of the mold(mm) |
350*350*270 |
500*450*455 |
|
Gate forms |
Submarine gate/cold(hot)runner inlet |
Submarine gate/hot runner inlet |
Balance material feeding, automatically interrupted pouring |
Pushing-out mode |
Secondary pushing-out of ejector pin |
Secondary pushing-out of ejector pin |
Making sure that the final products will drop off automatically |
Cooling mode |
Water-cycle cooling |
Water-cycle cooling |
|
Working mode |
Automatic production |
Automatic production |
|
Service life |
1.5Million Times |
1.5Million Times |
|
Producing deviation |
≤5% |
≤5% |
Deviation of emitter flowing rate |
Model of injection molding machine for it |
ZF1600-A |
ZF2400-A |

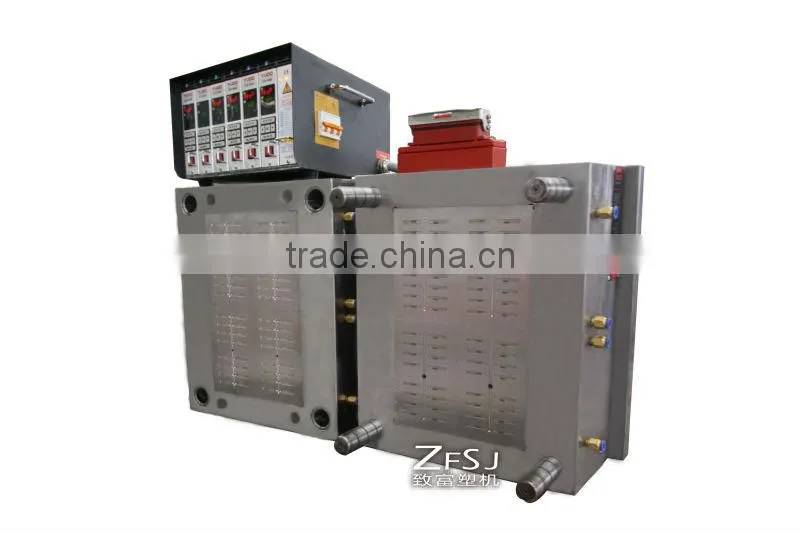

The mold picture :
16cavities cold runner
Flat dripper mold design :
The flat dripper mold is designed and manufactured by ourself .

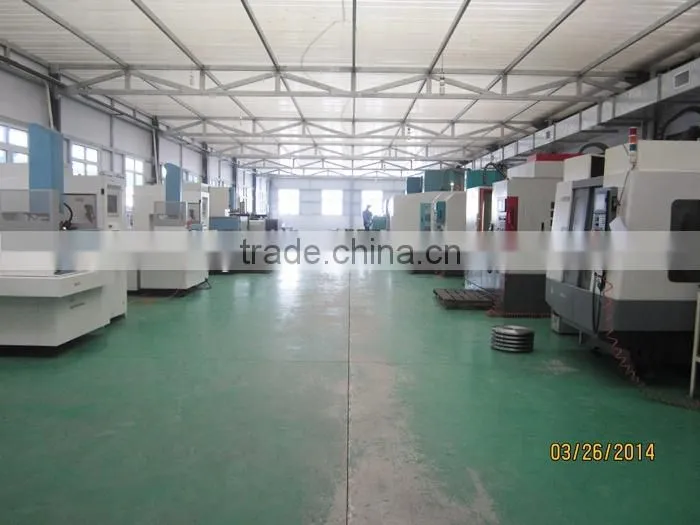

We have our own mold manufacturing workshop .
The mold processing machine we use is Switzerland AGIE Brand .
Mold material is Sweden steel .
The mold precision is hign . The mold flow rate is less than 3%
The flat dripper produced by ourselves :

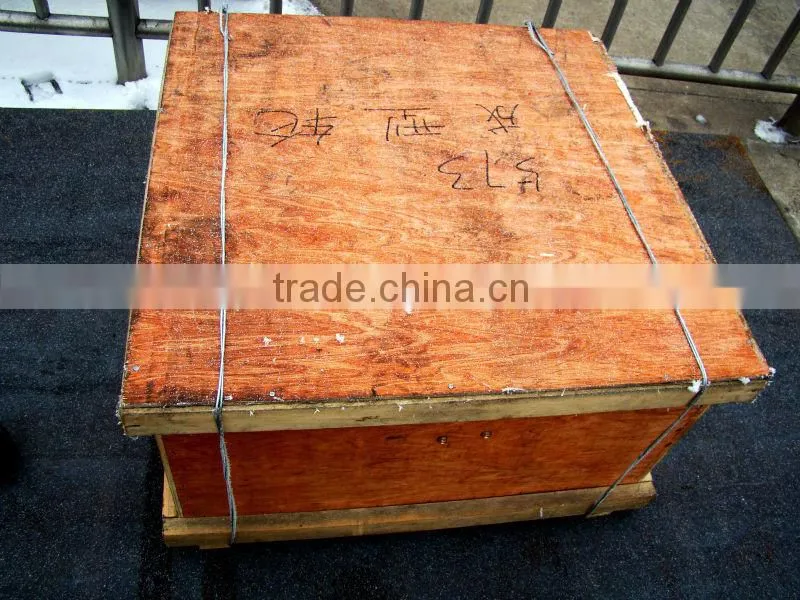

The flat dripper mold package :
wooden box
can be shipped by air or by sea .
it is accoding to customer's demands .
The usage of the flat dripper is usded for agricultral inline flatd dripper irrigation tape .
the flow rate of the flat dripper can be adjusted according to plant needed .

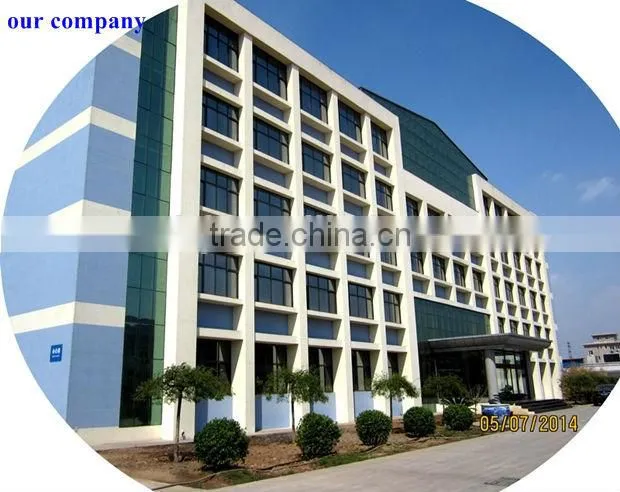

Our company and our Team
