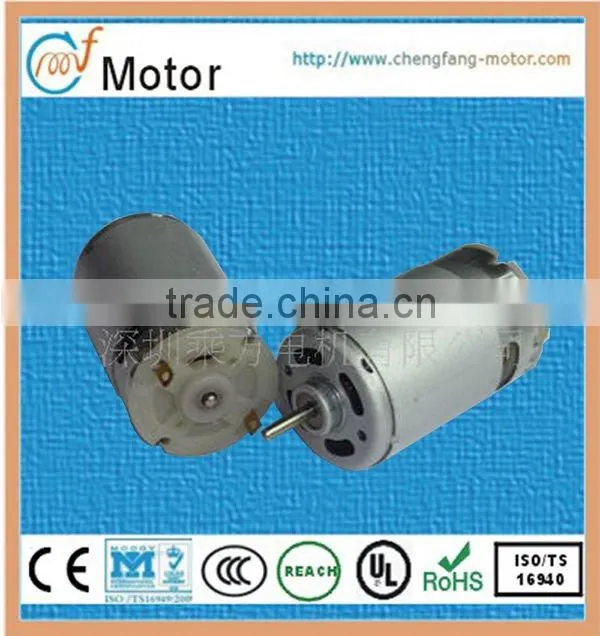

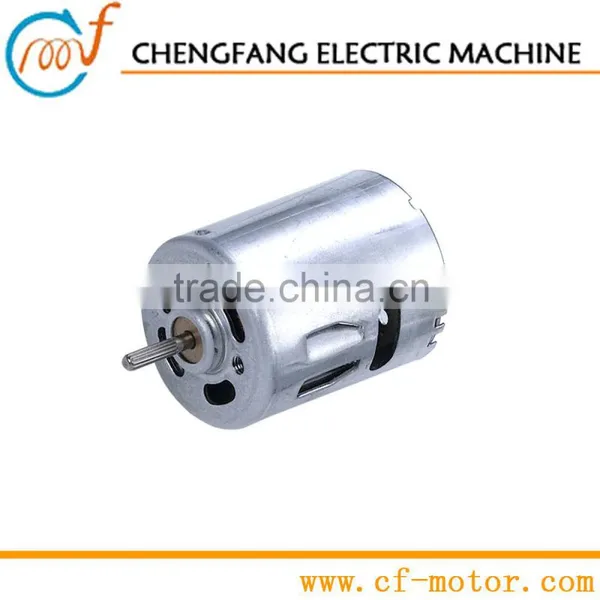

12v Watt Electric Motor RS-365H

Name: 12v Watt Electric Motor RS-365H
Brand: CF Motor, Chengfang
SKU: 126941873

12v Watt Electric Motor RS-365H thumbnail-1

US$ 0.5 - 0.8 MOQ: 5000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

CF Motor, Chengfang

Model Number:

RS-365PHVC-13136L, RS-365PHVC-13136L

Contact Supplier Request Quote Chat Now

Shenzhen Chengfang Electric Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name CF Motor, Chengfang

Model Number RS-365PHVC-13136L, RS-365PHVC-13136L

Type DC Motor

Motor Brush

Voltage 12V

Certification ROHS

12v dc motor with low noise motor,low rmp motor,used for copy machine and hair dryer motor

1.12V DC climate control motors.
2.High torque,long life,small dissipation.
3.Aprrox. 52g,24.4x30.8mm.
4.Fast delivery.

The models we list below are part of our existing designs.

we can customized them after evaluation if you can specify your own needs like voltage, speed, torque front shaft length and so on.

Model No.	Main Performance
	Rated Voltage	No Load		At Maximum Efficiency					At Stall
	Rated Voltage	Speed	Current	Speed	Current	Torque	Output	Eff.	Current	Torque
	V	r/min	A	r/min	A	g.cm	W	%	A	g.cm
RS-365PH-09270	12.0 CONST	2,930	0.036	2,192	0.095	28.4	0.63	54.91	0.28	105
RS-365PHVC-13136L	12.0 CONST	5500	0.12	4181	0.38	5.2	2.27	49.9	1.2	21.6

Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in 1mm=0.039in 1g=0.035oz

Damper actuator motor
Automotive air conditioner motor
370 motor
Dimension: dia. 24.4 x 30.8 L. shaft O.D. 2.0 mm
Basic Structure: SECD housing / SECC end cap / Rubber Magnet
Application: Damper actuator / Gear box
Weight:Approx. 50g

Basic Structure of Chengfang Motors

Customized Options

·2-pole stator
·Sr ferrite permanent magnet
·3, 5, 7, 8, 9, 12,16 slots armature
·Silicon-steel lamination with epoxy coating
·High-carbon steel shaft
·Cu-Ag alloy commutator
·Copper-graphite brushes
·Be-Cu leaf-brush commutating system
·SECD round / flat type housing
·SECD end cap / glassfiber reinforced PA6/6 end cap
·Cylinder / self-aligning Cu-Fe alloy sintered bushes
·155oC (class F) magnet wire

·Leadwires with connector / pins
·EMI suppression components
·PTC or thermostate protection
·Built-in AC/DC rectifier
·Built-in cooling fan
·Multiple output shaft
·diamond knurls, straight knurls, D-cut, stepped shaft
·Shaft-mounted gears, eccentric gears, belt pulleys
·Stainless steel (SS304, SS420) shaft
·Ball bearing
·Cage-brush commutating system
·Precious metal brush / commutator
·Hall encoder
·Low-cogging torque design
·180oC (class H), 200oC (class C) magnet wire
·-40oC ~ 220oC bearing lubricant
·Neodymium magnets
