Specifications
1 low energy consumption2 line work steadily
3 automatically
4 guarantee: one year
5 payment term: TT

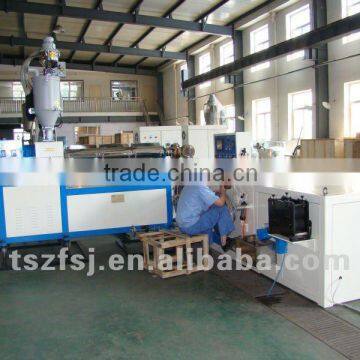

ZFSJ CE melt flow type drip irrigation water hose making machine
Main technical parameter
Model |
SJLY-65
|
Specification of final product |
φ16mm
|
Production speed |
70 m/min |
Main driving power |
30kw |
Max.extruding capacity |
60kg/h |
Heating power |
26kw
|
Filter changing way |
durable filter (patent) |
Driving power of shaping wheel |
7.5kw |
Driving power of tractor |
1.5kw
|
Winding motor |
torque motor 12N.m*2 |
Water consumption |
2.5m³/h |
Air consumption |
0.2m³/h |
Installation power |
68kw
|
Overall dimension(L*W*H) |
9M*5M*3.5M |
Weight |
3000kg
|
Features of melt-flow type drip irrigation tape making machine
1.The main motor, shaping wheel, knife wheel and tractor adopt frequency convention control, which has characteristics of easy adjustment, reliable running, steady work and low energy consumption.
2. Screw of extruder adopts special design which makes raw material plasticized well and the line works steadily.
3. The control of heating temperature of extruder and mold adopt temperature-automatic control system which has the characteristics of high accuracy of control and obvious effect of energy-saving.
4 .Winding machine adopts torque motor which overcomes tension-blemish effectively. And winding machine is also equipped with meter-counter and can alarm and stop automatically.
Application range of melt flow- type drip irrigation tape:

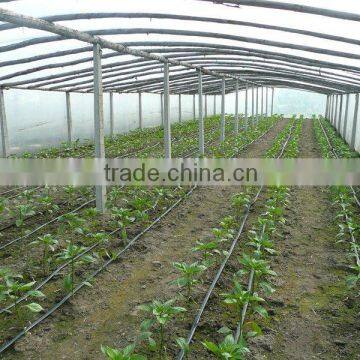

It can be widely used in farm crops and greenhouse, the dripping volume and space of water dripping outlet can be supplied according to actual needs.

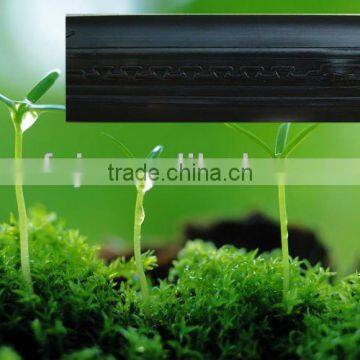

Features of the melt-flow type drip irrigation tape
1 .Thin wall type drip irrigation tape, the labyrinth flow passage can be formed once, which performance is good.
2. It has turbulent flow passage and pressure compensation.
3 .Aperture type water outlet can be opened to make water flows only when the pressure exists, it will be closed automatically when there is no pressure, therefore it can prevent root system of plant and soil etc. impurity from entering and avoid blocking water outlet.
4 .The flow rater has strong stability.
5. The flexibility of emitter flow passage is good.
6 .The paving length is long.
7 .It features high erosion resistance.
Features of melt-flow type drip irrigation tape making machine
1.The main motor, shaping wheel, knife wheel and tractor adopt frequency convention control, which has characteristics of easy adjustment, reliable running, steady work and low energy consumption.
2. Screw of extruder adopts special design which makes raw material plasticized well and the line works steadily.
3. The control of heating temperature of extruder and mold adopt temperature-automatic control system which has the characteristics of high accuracy of control and obvious effect of energy-saving.
4 .Winding machine adopts torque motor which overcomes tension-blemish effectively. And winding machine is also equipped with meter-counter and can alarm and stop automatically.
Application range of melt flow- type drip irrigation tape:
It can be widely used in farm crops and greenhouse, the dripping volume and space of water dripping outlet can be supplied according to actual needs.
Features of the melt-flow type drip irrigation tape
1 .Thin wall type drip irrigation tape, the labyrinth flow passage can be formed once, which performance is good.
2. It has turbulent flow passage and pressure compensation.
3 .Aperture type water outlet can be opened to make water flows only when the pressure exists, it will be closed automatically when there is no pressure, therefore it can prevent root system of plant and soil etc. impurity from entering and avoid blocking water outlet.
4 .The flow rater has strong stability.
5. The flexibility of emitter flow passage is good.
6 .The paving length is long.
7 .It features high erosion resistance.

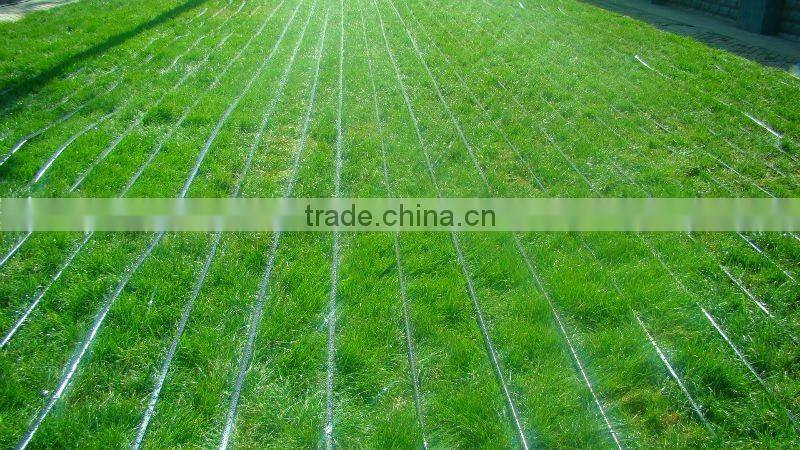

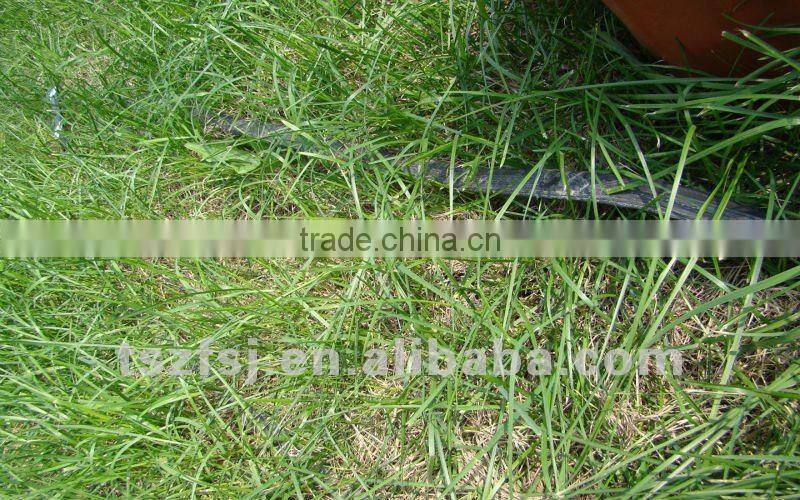

The application of this machine tape
