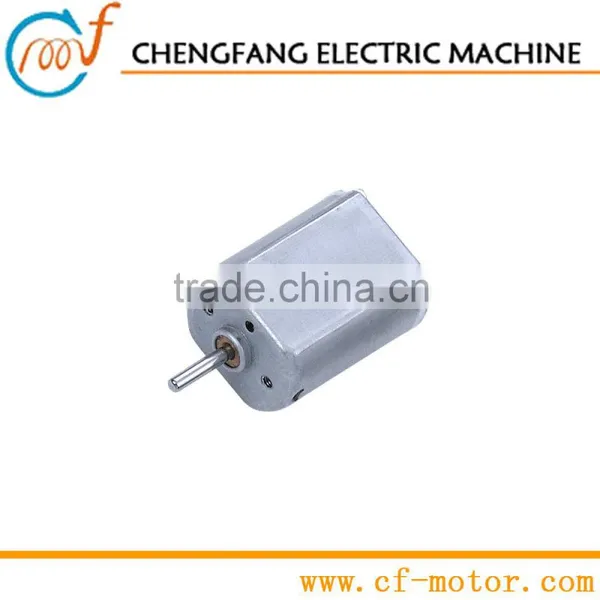

Small DC Motor Used for Vehicle Door Locks

Small DC Motor Used for Vehicle Door Locks thumbnail-1
Small DC Motor Used for Vehicle Door Locks photo-1
US$ 0.39 - 0.59 MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CF Motor, Chengfang
Model Number:
FK-130PH, FK-130PH
Contact Supplier Request Quote Chat Now
Shenzhen Chengfang Electric Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CF Motor, Chengfang
Model Number FK-130PH, FK-130PH
Usage Boat, Car, Fan, Home Appliance, Other
Certification CE, ROHS, UL
Type Micro Motor
Torque 40g*cm
Construction Permanent Magnet
Commutation Brush
Speed(RPM) 7200-30000
Continuous Current(A) 0.49-1.1A
Output Power 1-10W
Voltage(V) 3-12V
Efficiency Other, 60%

Small DC motor used for vehicle door locks



1.micro dc motor,small dc viration,side mirror actuator motor,aeromodelling motor
2.long life,light weight,small dissipation

3.Fast delivery

4.ROHS UL



NOTE: the models we list below are part of our existing designs. We offer specific motor design for every customer.



 FK-130H

Model No. Main Performance
Rated Voltage No Load At Maximum Efficiency At Stall
Speed Current Speed Current Torque Output Eff. Current Torque
  V r/min A r/min A g.cm W % A g.cm
FK-130PH-2758 6.0 CONST 24,000 0.49 19,550 2.16 42 8.34 64.4 9.5 220
FK-130PH-4027 3.0 CONST 26,500 1.11 21,450 4.71 37 7.98 56.4 20 190
FK-130PH-2858 7.2 CONST 28,510 0.49 24,430 2.08 41 9.99 66.43 15.5 250
FK-130PH-3730 3.0 CONST 24,000 0.76 19,900 3.7 35 7.11 64.1 18 204
FK-130PH-3148 4.0 CONST 20,450 0.46 17,212 2.45 27 4.76 48.7 13 170
FK-130SH-17102 6.0 CONST 14,000 0.15 11,452 0.67 24 2.78 68.7 3.03 130
FK-130SH-10385 12.0 CONST 7,200 0.07 5,400 0.21 28 1.53 60.7 0.63 110
FK-130SH-12220 12.0 CONST 13,200 0.1 10,496 0.39 24 2.54 54.7 1.5 115

 Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in   1mm=0.039in   1g=0.035oz



Small DC motor used for vehicle door locks

Small DC motor used for vehicle door locks





  • Side mirror actuator motor
  • Aeromodelling motor
  • Remote control plane motor

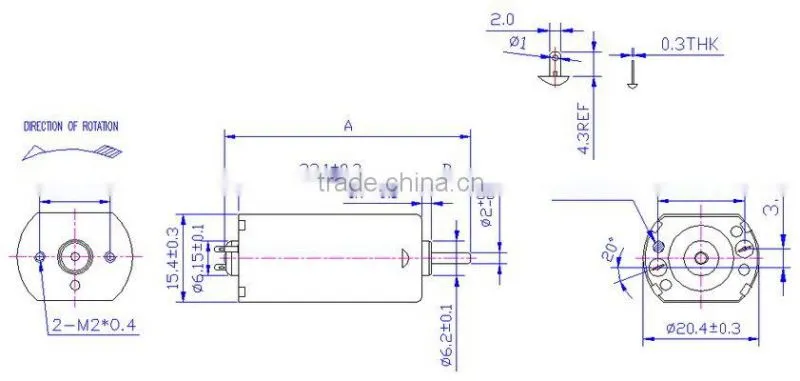

  • Dimension:dia. dia. 20.4 x 15.4 Thk. x 25 L. shaft O.D. 2.0 mm
  • Basic Structure: SECD housing / SECC end cap
  • Application:  Aeromodelling
  • Weight: Approx. 24g


Basic Structure of Chengfang Motors

Customized Options

·2-pole stator
·Sr ferrite permanent magnet
·3, 5, 7, 8, 9, 12,16 slots armature
·Silicon-steel lamination with epoxy coating
·High-carbon steel shaft
·Cu-Ag alloy commutator
·Copper-graphite brushes
·Be-Cu leaf-brush commutating system
·SECD round / flat type housing
·SECD end cap / glassfiber reinforced PA6/6 end cap
·Cylinder / self-aligning Cu-Fe alloy sintered bushes
·155oC (class F) magnet wire











·Leadwires with connector / pins
·EMI suppression components
·PTC or thermostate protection
·Built-in AC/DC rectifier
·Built-in cooling fan
·Multiple output shaft
·diamond knurls, straight knurls, D-cut, stepped shaft
·Shaft-mounted gears, eccentric gears, belt pulleys
·Stainless steel (SS304, SS420) shaft
·Ball bearing
·Cage-brush commutating system
·Precious metal brush / commutator
·Hall encoder
·Low-cogging torque design
·180oC (class H), 200oC (class C) magnet wire
·-40oC ~ 220oC bearing lubricant
·Neodymium magnets
