12v dc Motor FC-140SA Used for Headlamp Adjusters

Name: 12v dc Motor FC-140SA Used for Headlamp Adjusters
Brand: CF motor, Chengfang
SKU: 126941399

12v dc Motor FC-140SA Used for Headlamp Adjusters thumbnail-1

12v dc Motor FC-140SA Used for Headlamp Adjusters photo-1

US$ 0.35 - 0.55 MOQ: 5000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

CF motor, Chengfang

Model Number:

FC-140SA, FC-140SA

Contact Supplier Request Quote Chat Now

Shenzhen Chengfang Electric Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name CF motor, Chengfang

Model Number FC-140SA, FC-140SA

12v dc motor FC-140SA used for headlamp adjusters

1.Used for vehicle door locks,mirror adjusters and headlamp adjusters.
2.High torque,long life,light weight,small dissipation.

The models we list below are part of our existing designs. We offer specific motor design for every customer.

FC-140A

Model No.	Main Performance
	Rated Voltage	No Load		At Maximum Efficiency					At Stall
	Rated Voltage	Speed	Current	Speed	Current	Torque	Output	Eff.	Current	Torque
	V	r/min	A	r/min	A	g.cm	W	%	A	g.cm
FC-140SA-12220	12.0 CONST	13,000	0.09	10,184	0.33	23.5	2.49	62.5	1.2	110
FC-140SAV-09330	12.0 CONST	9,300	0.046	7,160	0.16	16.1	1.19	63.7	0.52	70
FC-140SA-07720	12.0 CONST	3,600	0.023	2,600	0.06	11.1	0.3	40.6	0.16	40
FC-140SAV-07700	13.5 CONST	4,250	0.027	3,076	0.07	15.2	0.48	49.4	0.19	55

Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in 1mm=0.039in 1g=0.035oz

Side mirror actuator motor
Toy vehicle motor

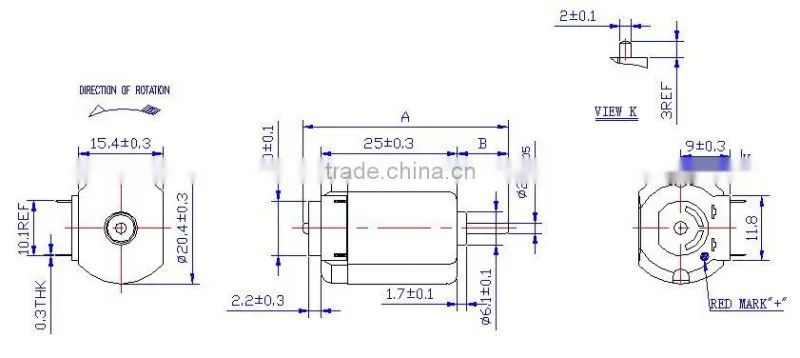

Dimension:dia. 20.4 x 15.4 Thk. x 25 L. shaft O.D. 2.0 mm
Basic Structure: SECD housing / Plastic end cap / Side terminal
Application: Side mirror / Toy vehicle
Weight: Approx. 22g

Basic Structure of Chengfang Motors

Customized Options

·2-pole stator
·Sr ferrite permanent magnet
·3, 5, 7, 8, 9, 12,16 slots armature
·Silicon-steel lamination with epoxy coating
·High-carbon steel shaft
·Cu-Ag alloy commutator
·Copper-graphite brushes
·Be-Cu leaf-brush commutating system
·SECD round / flat type housing
·SECD end cap / glassfiber reinforced PA6/6 end cap
·Cylinder / self-aligning Cu-Fe alloy sintered bushes
·155oC (class F) magnet wire

·Leadwires with connector / pins
·EMI suppression components
·PTC or thermostate protection
·Built-in AC/DC rectifier
·Built-in cooling fan
·Multiple output shaft
·diamond knurls, straight knurls, D-cut, stepped shaft
·Shaft-mounted gears, eccentric gears, belt pulleys
·Stainless steel (SS304, SS420) shaft
·Ball bearing
·Cage-brush commutating system
·Precious metal brush / commutator
·Hall encoder
·Low-cogging torque design
·180oC (class H), 200oC (class C) magnet wire
·-40oC ~ 220oC bearing lubricant
·Neodymium magnets

Company Introduction

Shenzhen Chengfang Electric Machine Co., Ltd. is a professional permanent magnet dc motor manufacturer, which is established in 2003 with about 500 employees. There are seven series motors with about 30 varities. Each year, Chengfang produces about 15 million sets motors and its turnover reached about 100 million RMB.

1. Full Motor Manufacturing in House

Chengfang has full motor manufacturing processes in house including design of tool fabrication. Its tooling and measuring equipment contain many world's famous brands like Sodick, Hexagon, Mitutoyo, EMA and etc.

2. Highly Automatic Production Line

The Company has several automatic production lines for motor housing and rotors, which could greatly endures its consistency of its performance and appearance. All motors could be traced by serial number, from which dates, workers, and inspectors could be traced.

3. R & D Capability

Chengfang pays much attention to all motors performance tets and reliability tests. Several test rooms has been set up to serve for load test, noise test, life test, vibration test and etc.

4. Packaging and shipping

a. Mass production packaging:

Quantity: the quantity in one carton will be determined by the motor size and shape. It could be varies from 10PCS to 400PCS.

Size: Chengfang standard / european standard / international standard.

Motors will be generally shipped with pallet.

b. Shipping

Motors will be ready in 15-30 days once we get your payment.

We do only support TNT and UPS express for samples.

5. Motor Applications

Motors are widely applied to automotive, electric model, home appliance, power tool, fitness apparatus, office automation and etc.
