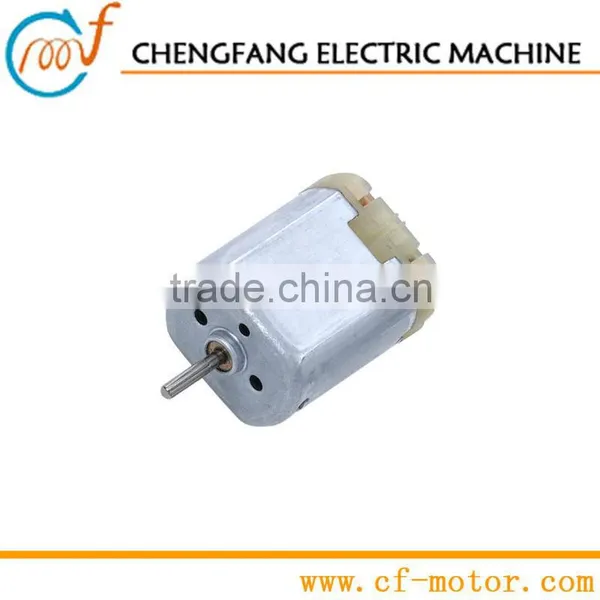

12V DC Motor FT-280SA forheadlamp adjusters

FOB Price

USD $0.44 - $0.66 / Piece

5000 Pieces(Min.Order)

Supply Ability 5000000 Piece / Pieces per Month
Port Shenzhen
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	CF motor, Chengfang
Model Number	FT-280SA, FT-280SA	Type	DC Motor
Use	Fan	Motor	Brush
Voltage	12V	Certification	ROHS

Product Description

12V DC Motor FT-280SA forheadlamp adjusters

1.12V DC brushed motor
2.For headlamp adjusters /fax machine/Power scissor3.large lorque long life
4.Motor dia. 24*18*30.5MM

The models we list below are part of our existing designs.

We offer specific motor design for every customer.

FT-280A

Model No.	Main Performance
	Rated Voltage	No Load		At Maximum Efficiency					At Stall
	Rated Voltage	Speed	Current	Speed	Current	Torque	Output	Eff.	Current	Torque
	V	r/min	A	r/min	A	g.cm	W	%	A	g.cm
FT-280SA-3340	1.9 CONST	7,850	0.35	6,349	1.39	31.1	1.9	71.9	6.6	163
FT-280SA-4523	1.25 CONST	9,100	0.6	7,300	2.5	27	2.02	64.6	10.2	140
FT-280SA-18170	12.0 CONST	11,700	0.07	10,082	0.44	35.6	3.85	72.9	2.7	255
FT-280SAT-20156	12.0 CONST	12,000	0.135	10,244	0.615	47	4.99	67.5	4.2	336
FT-280SAT-18140	12.0 CONST	13,500	0.11	11,348	0.58	43	5.02	72.2	3.05	270
FT-280SAT-3739	2.3 CONST	13,500	0.36	7,746	1.51	30.9	2.46	71	6.3	160
FT-280SAT-21145	12.0 CONST	12,500	0.11	10,774	0.69	51.1	5.65	68.5	4.3	370
FT-280SAT-09445	12.0 CONST	4,000	0.046	2,984	0.14	25.4	0.78	47.7	0.4	100

Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in 1mm=0.039in 1g=0.035oz

Door lock actuator motor
Fax machine motor

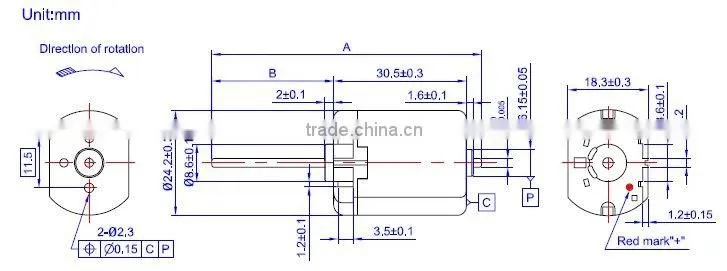

Dimension: dia. 24 x 18.3 Thk. x 30.5 L. shaft O.D. 2.0 mm
Basic Structure: SECD housing / Plastic end cap / Female terminal
Application: Fax Machine / Door Lock Actuator / Power Scissors
Weight: Approx. 30g

Basic Structure of Chengfang Motors

Customized Options

·2-pole stator
·Sr ferrite permanent magnet
·3, 5, 7, 8, 9, 12,16 slots armature
·Silicon-steel lamination with epoxy coating
·High-carbon steel shaft
·Cu-Ag alloy commutator
·Copper-graphite brushes
·Be-Cu leaf-brush commutating system
·SECD round / flat type housing
·SECD end cap / glassfiber reinforced PA6/6 end cap
·Cylinder / self-aligning Cu-Fe alloy sintered bushes
·155oC (class F) magnet wire

·Leadwires with connector / pins
·EMI suppression components
·PTC or thermostate protection
·Built-in AC/DC rectifier
·Built-in cooling fan
·Multiple output shaft
·diamond knurls, straight knurls, D-cut, stepped shaft
·Shaft-mounted gears, eccentric gears, belt pulleys
·Stainless steel (SS304, SS420) shaft
·Ball bearing
·Cage-brush commutating system
·Precious metal brush / commutator
·Hall encoder
·Low-cogging torque design
·180oC (class H), 200oC (class C) magnet wire
·-40oC ~ 220oC bearing lubricant
·Neodymium magnets
