Specifications
Computer Control Material Torsion Testing Machine1. Max force: 200/500/1000/2000/3000/5000N/m
2. Computer control
3. CE

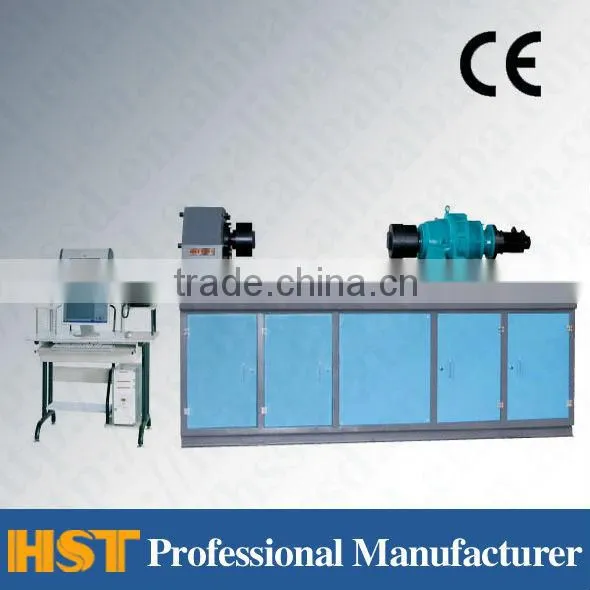

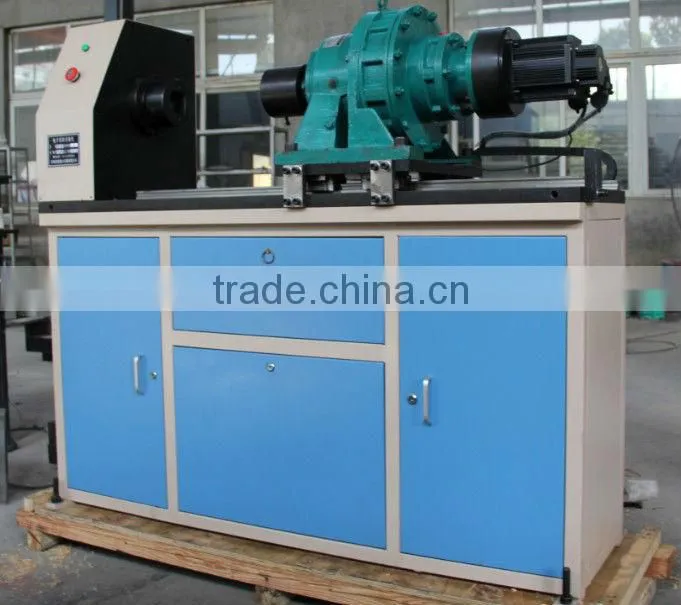

NDW Series Computer Control Material Torsion Testing Machine
Application:
It is mainly used for the torsion test of metal and nonmetal materials, as well as the torsion test for parts and components. It is an essential instrument to measure torsion properties of materials for mechanics laboratories of aviation industry, construction industry, scientific research dept, universities and industrial enterprises etc.
Technical parameter:
Model |
NDW- 500 |
NDW- 1000 |
NDW- 2000 |
NDW- 3000 |
NDW- 5000 |
Max test force N/m |
500 |
1000 |
2000 |
3000 |
5000 |
Machine level |
1 class |
||||
Test range |
2%-100%FS |
||||
Torque force value relative error |
≤±1% |
||||
Force resolution |
1/200000 |
||||
Torque Angle measuring relative errors |
≤±1% |
||||
Torque angle resolution(°) |
0.05-999.9°/min |
||||
Torque speed relative error |
≤±1% |
||||
Two chuck max distance (mm) |
300 |
550 |
550 |
600 |
650 |

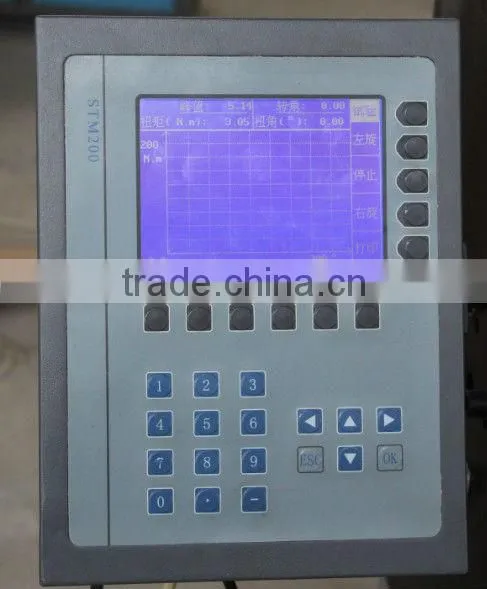

Digital display model picture as below:
