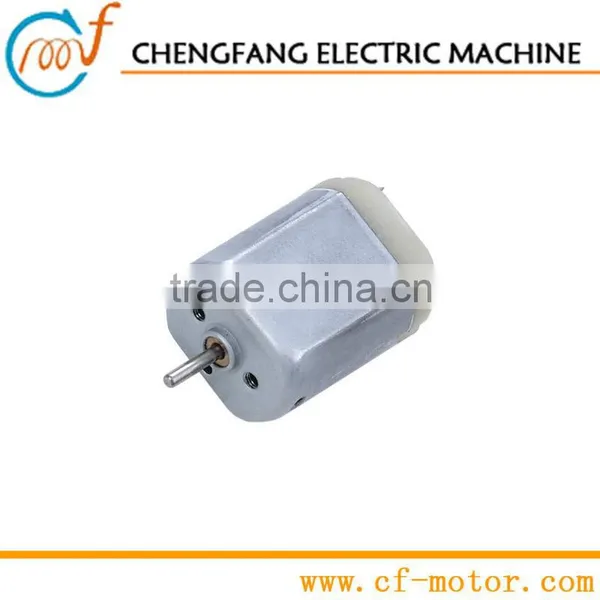

FK-280SAV, Flat Electric Motor for Foam Maker ,foam Generator Motor | Chengfang
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ChengFang, Chengfang
Model Number:
FK-280PA, FK-280PA
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Milk Grinding Machine FK-280PA, Flat Mimi dc Motor, 6v Motor for MilkNegotiableMOQ: 10000 Pieces -
24v Small dc Motor for Automotive MotorUS$ 0.53 - 0.8MOQ: 5000 Pieces
-
1.5v Mini dc Flat Motor | FT-280AUS$ 0.43 - 0.83MOQ: 20000 Pieces
-
Side Mirror Actuator DC Motor FC-140A FC-140ANegotiableMOQ: 40000 Pieces
-
Trunk Lock Actuator Motor FK-280ANegotiableMOQ: 10000 Pieces
Place of Origin
Guangdong, China
Brand Name
ChengFang, Chengfang
Model Number
FK-280PA, FK-280PA

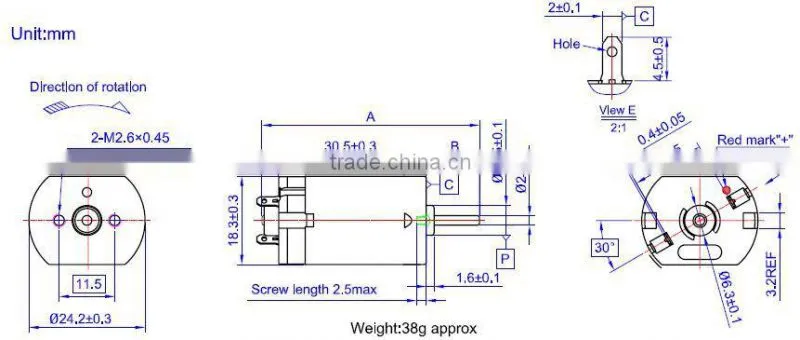

Detailed Dimension
Performance Data
| Model No. | FK-280SAV-11400 | |
| Rated voltage | 12VDC | |
| No Load | Speed(r/min) | 4500 |
| Current(A) | 0.04 | |
| At Max Efficiency | Speed(r/min) | 3579 |
| Current(A) | 0.14 | |
| Torque(mNm) | 3.01 | |
| Output(W) | 1.13 | |
| Eff.(%) | 66.7 | |
| At stall | Current(A) | 0.55 |
| Torque(mNm) | 14.7 | |

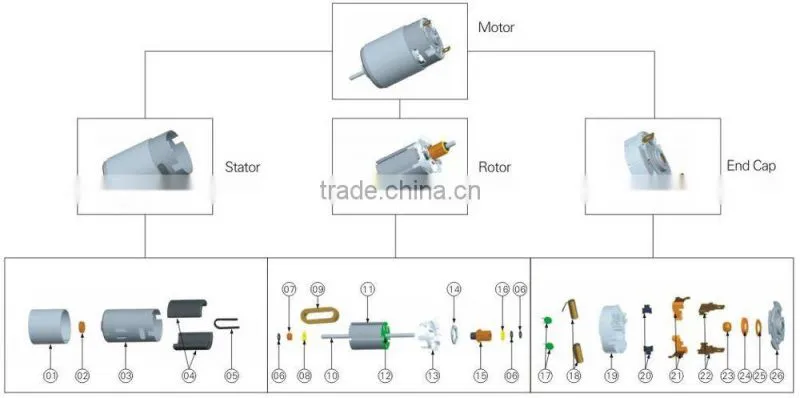

Basic Structure
| 1 | Flux Ring | 10 | Shaft | 19 | Terminal holder |
| 2 | Bearing | 11 | Rotor lamination | 20 | Brush |
| 3 | Housing | 12 | Insulation coating | 21 | Brush leaf |
| 4 | Magnet | 13 | Cooling fan | 22 | Terminal |
| 5 | Caliper | 14 | Varistor | 23 | Bearing |
| 6 | Adjusting spacer | 15 | Commutator | 24 | Bearing cover |
| 7 | Brass spacer | 16 | Oil stop spacer | 25 | Retaining spacer |
| 8 | Insulating spacer | 17 | Capacitor | 26 | Steel end cap |
| 9 | Coil | 18 | Choke |
Customized Options
| Item | Customized Options | |
| 1 | EMI suppression | chokes |
| capacitors | ||
| varistor | ||
| 2 | Built in components | PTC |
| thermostate protection | ||
| cooling fan | ||
| 3 | Shaft processing | knurling |
| d-cut | ||
| spline | ||
| step shaft | ||
| double output shaft | ||
| 4 | Shaft-mounted components | gear |
| eccentric wheel | ||
| belt pulleys | ||
| 5 | Multiple material choice | staninless steel |
| ball bearing | ||
| brush cage commutating system | ||
| precious metal brush | ||
| magnet wire | ||
| Neodymium magnets | ||
| any others | ||
Certifications
Company Tour
Product List
| Series | Model | Power (w) | Housing Length(mm) | Dia.(mm) | Shaft Dia.(mm) |
| LVDC Motor | 1.2VDC-70VDC | ||||
| 2 | FT-280A | 3.8-6 | 30.5 | 24 | 2 |
| FK-280A | 3-15 | 30.5 | 18.3 | 2 | |
| FC-280A | 6.5-8.5 | 30.5 | 18.3 | 2 | |
| 3 | RS-360A/365A | 0.5-7.5 | 32.6 | 27.7 | 2.3 |
| RS-360H/365H | 3.0-15.0 | 32.6 | 27.7 | 2.3 | |
| RF-370H | 0.8-2.2 | 30.8 | 24.4 | 2 | |
| RC-370H | 1.2-4 | 30.8 | 24.4 | 2 | |
| RS-380A/385A | 2-40 | 37.8 | 27.7 | 2.3 | |
| RS-380H/385H | 2-40 | 37.8 | 27.7 | 2.3 | |
| RS-390A/395A | 4-22 | 46.5 | 27.7 | 2.3 | |
| RS-390H/395H | 1-40 | 46.5 | 27.7 | 2.3 | |
| 5 | RS-540A/545A | 2-90 | 50 | 35.8 | 3.18 |
| RS-545H/545H | 5-80 | 50 | 35.8 | 3.18 | |
| FS-545H | 4-11 | 53 | 35.8 | 4 | |
| RS-550A/555A | 5-80 | 57 | 35.8 | 3.175 | |
| RS-550H/555H | 5-80 | 57 | 35.8 | 3.175 | |
| FS-555H | 15-160 | 63 | 35.8 | 3.175 | |
| RS-558H | 57 | 35.8 | 4 | ||
| RS-568H | 60 | 35.8 | 4 | ||
| RS-560A | 5-80 | 62.5 | 35.8 | 3.175 | |
| RS-560H/565H | 5-80 | 60 | 35.8 | 3.175 | |
| RS-590H/595H | 8-130 | 67 | 35.8 | 3.175 | |
| 7 | RS-750H/755H | 8-90 | 59 | 41.8 | 5 |
| RS-770H/775H | 8-100 | 66 | 41.8 | 5 | |
| RS-790H/795H | 20-200 | 75 | 41.8 | 5 | |
| 9 | RS-987H | 5-200 | 69 | 51.8 | 6.35 |
| RS-997H | 15-130 | 85 | 51.8 | 6.35 | |
| Series | Model | Power (w) | Housing Length(mm) | Dia.(mm) | Shaft Dia.(mm) |
| HVDC motor | 70VAC-240VAC | ||||
| 5 | RS-5412A | 5-50 | 50 | 35.8 | 3.175 |
| RS-5512A | 8-75 | 57 | 35.8 | 3.175 | |
| RS-5512H | 57 | 35.8 | 3.175 | ||
| FS-5512A | 2-50 | 65.5 | 35.8 | 4 | |
| FS-5512H | 20-100 | 63 | 35.8 | 4 | |
| RS-5516A | 70 | 57 | 35.8 | 3.175 | |
| RS-5912A | 10-40 | 67 | 35.8 | 3.175 | |
| 7 | RS-7512A | 15-80 | 59 | 41.8 | 5 |
| RS-7712H | 10-200 | 66 | 41.8 | 5 | |
| RS-7912H | 10-100 | 75 | 41.8 | 5 | |
| 9 | RS-9812H | 20-200 | 69 | 51.8 | 6.35 |
| RS-9912H | 20-300 | 85 | 51.8 | 6.35 | |
