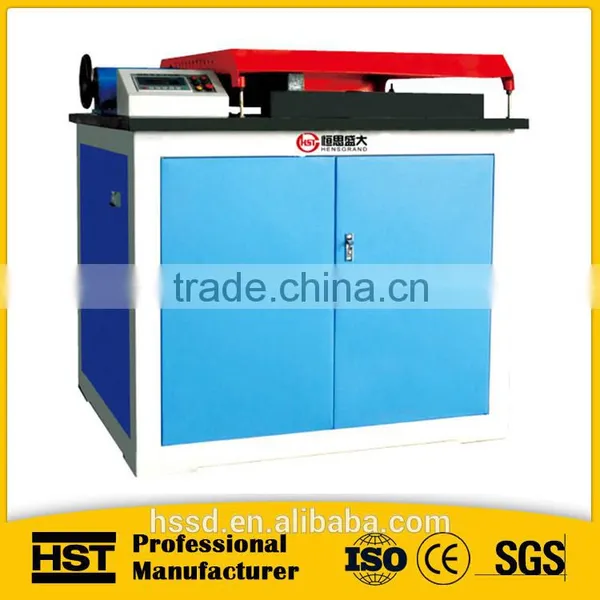

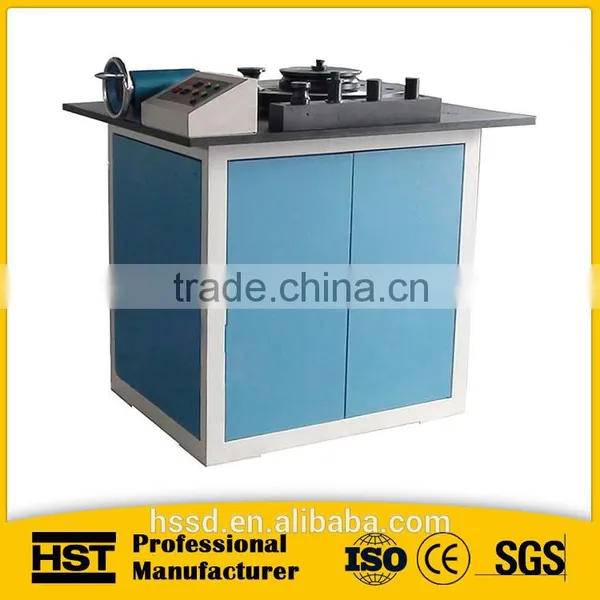

GW-B steel rebar bending testing machine
Application:
This testing machine can be used to do cold bend and rebend test on plane. The main technical parameters accord with GB1499.2-2007 <The second part of Steel tube for the reinforcement of concrete: hot rolled ribbed steel bars>, YB/T5126-2003 <Program of steel bars plane rebend tests> .This machine is suitable for bend test of the metallic material - rods and bars, the plate, spiral steel, and widely applies in the building materials, the metallurgy, the Scientific research Unit, the universities, colleges and institutes, the quality detection center and the commodity inspection department. It is indispensable ideal testing machines to test the recurvature character and cold bending property of screw thread steel bar.
Technical Parameters:
Mode |
GW-40B |
GW-50B |
Max of bending diam of Steel Bar |
40mm |
50mm |

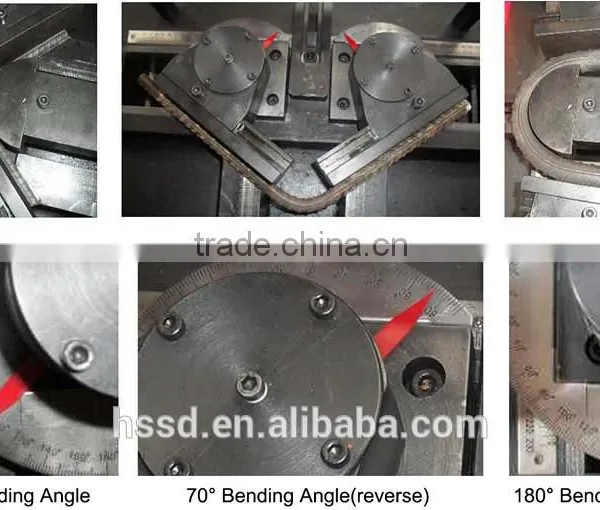

Forward bending angle |
0° to 180° |
|
Reverse bending angle |
0° to 180° |
|
Rotating speed of working table |
≤2.0r/min |
|
Distance between the center of two rolls |
165mm |
165mm |
Diameter of the working table |
Φ580mm |
Φ760mm |
Motor power |
1.5kw |
2.2KW |

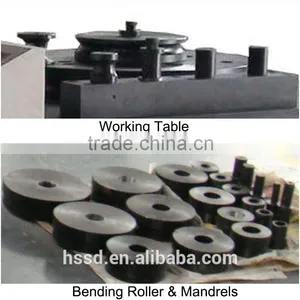

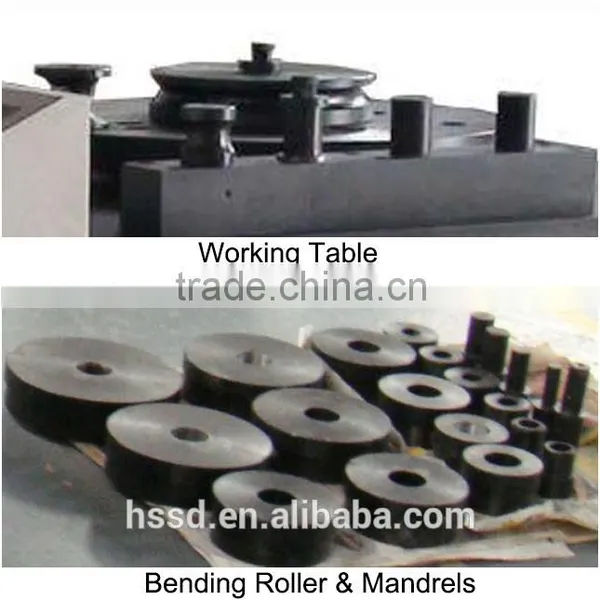

Standard bending accessory |
HRB-335/φ6-φ40/or other configuration option |
HRB-335/φ6-φ50/or other configuration option |
Weight |
1500kg |
2500kg |

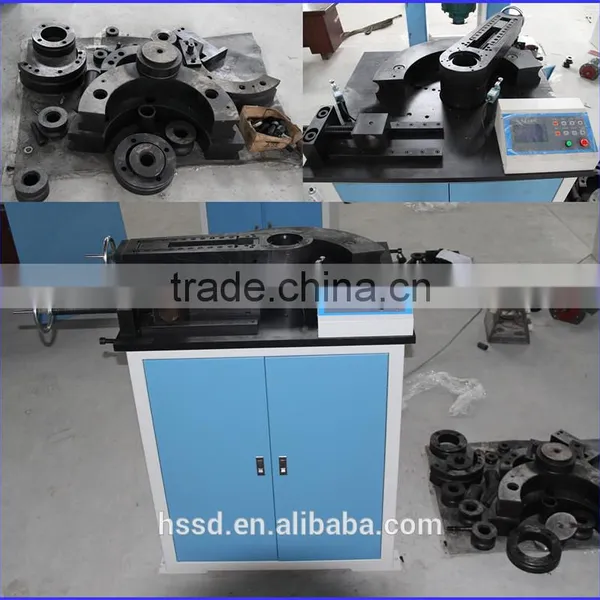

At below is our bending or torsion testing machines photos, if you are interested, please send me "inquiry" directly !

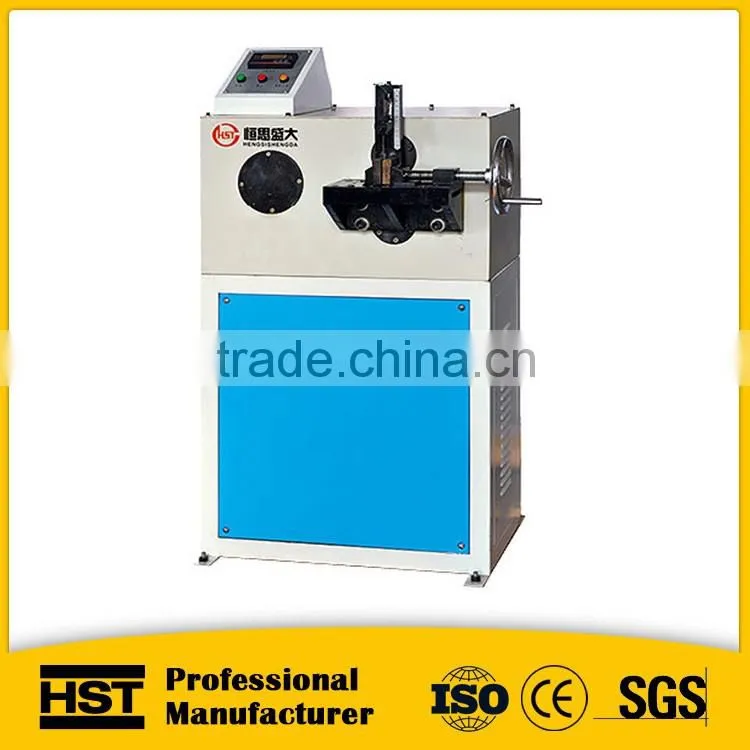

Material Torsion testing machine JWJ-10 wire repeated bending tester

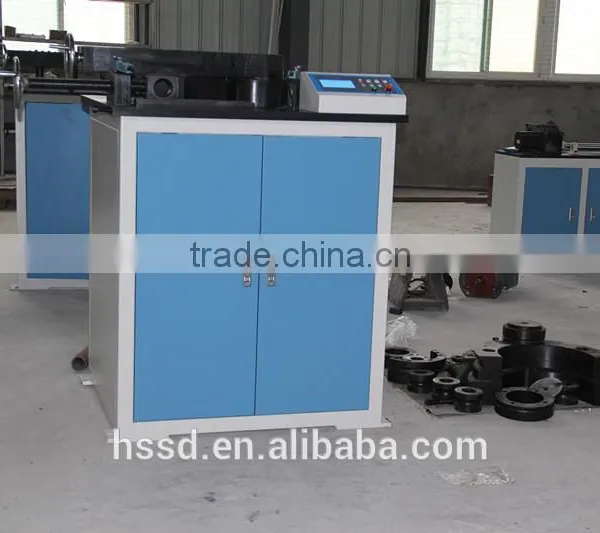

Factory Photo:
Customers come to visit our company :
CE certificate:
Package and delivery time:
1. Delivery date: 7 working days after receiving payment
2. Payment terms: T/T, 100%before shipment
3. Packages: Plywood Cases
1) Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
2) Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
3) Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
4) Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need. Products are widely recognized and trusted by users.
Dear customer, if you need our testing machines, please contact with us without any hesitate ! We will supply our best service for you ! Best Wishes !
-------------
