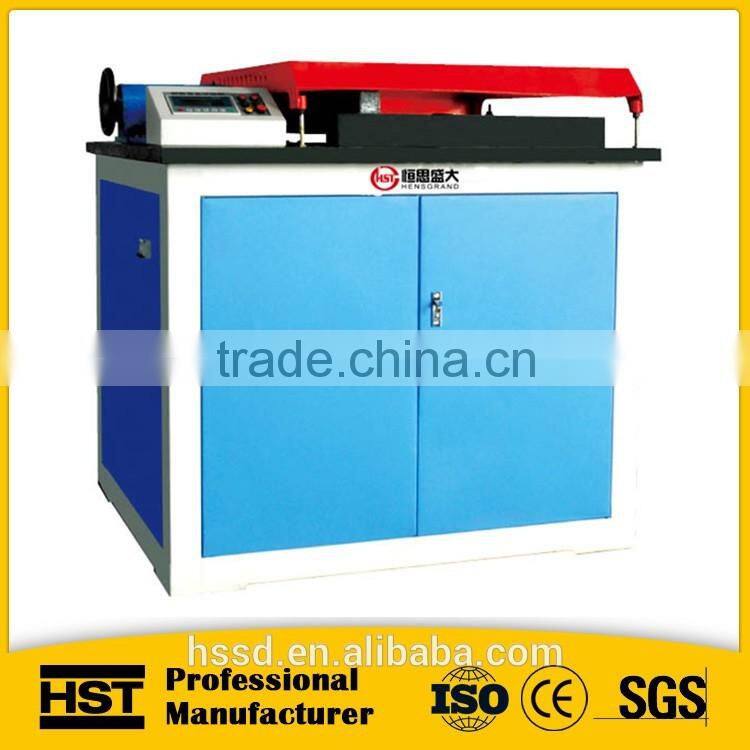

GW SERIES Electronic steel bending Test Equipment
Sunny Tel: +86-15589960023 skype: jessica-hssd
Application:
This testing machine can be used to do cold bend and rebend test on plane. The main technical parameters accord with GB1499.2-2007 <The second part of Steel tube for the reinforcement of concrete: hot rolled ribbed steel bars>, YB/T5126-2003 <Program of steel bars plane rebend tests> .This machine is suitable for bend test of the metallic material - rods and bars, the plate, spiral steel, and widely applies in the building materials, the metallurgy, the Scientific research Unit, the universities, colleges and institutes, the quality detection center and the commodity inspection department. It is indispensable ideal testing machines to test the recurvature character and cold bending property of screw thread steel bar.
Technical Parameters:
Mode |
GW-40B |
GW-50B |
Max of bending diam of Steel Bar |
40mm |
50mm |

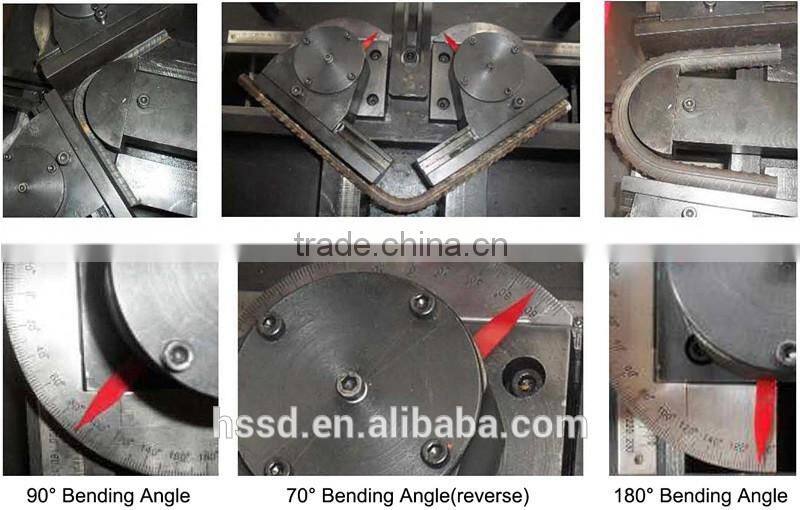

Forward bending angle |
0° to 180° |
|
Reverse bending angle |
0° to 180° |
|
Rotating speed of working table |
≤2.0r/min |
|
Distance between the center of two rolls |
165mm |
165mm |

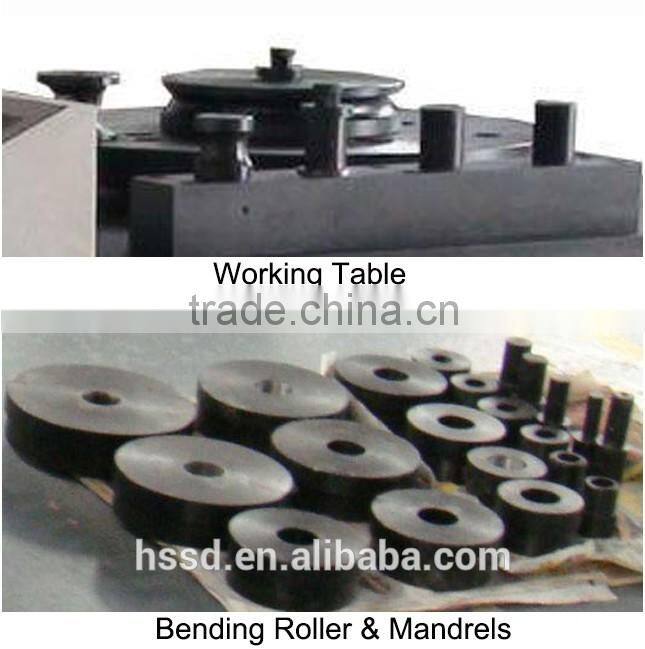

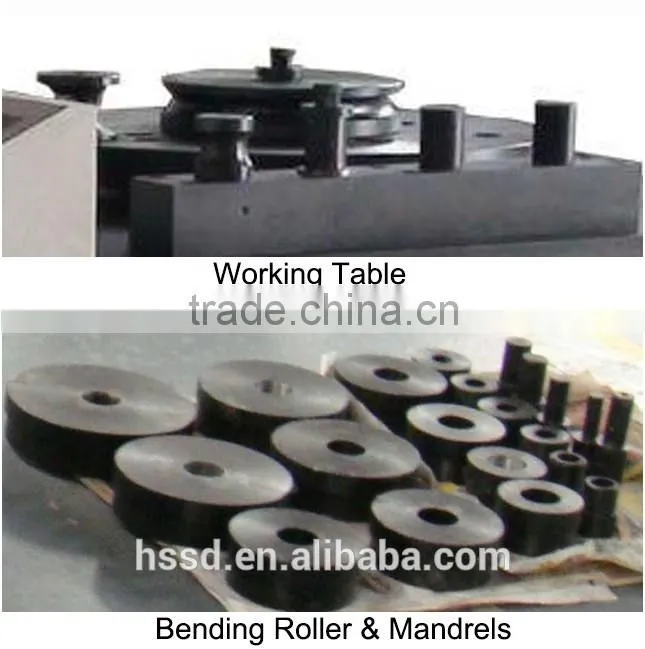

Diameter of the working table |
Φ580mm |
Φ760mm |
Motor power |
1.5kw |
2.2KW |
Standard bending accessory |
HRB-335/φ6-φ40/or other configuration option |
HRB-335/φ6-φ50/or other configuration option |
Weight |
1500kg |
2500kg |

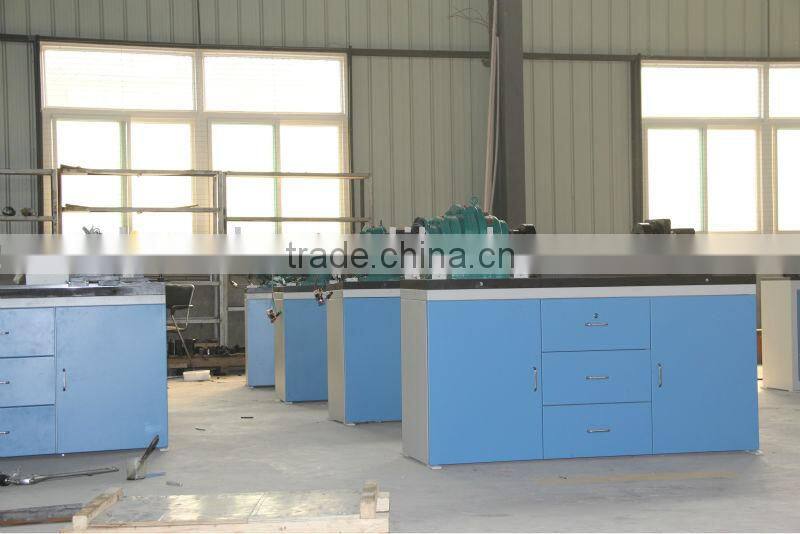

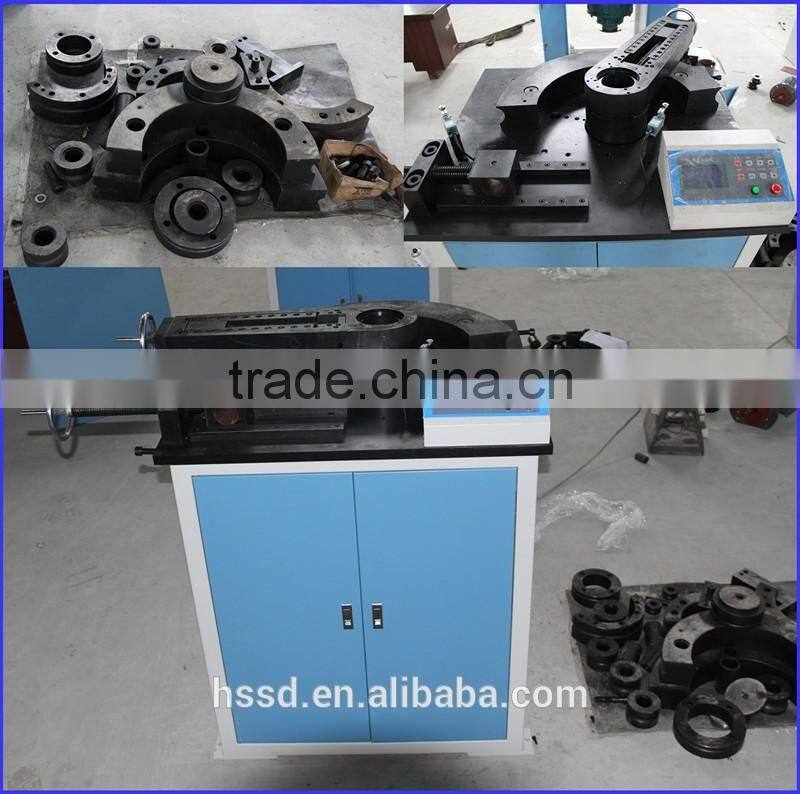

Factory Show
Lifelong after-sales service & maintenance;
24 hours’ consult pre-sale on line or by Phone
Overseas training, installation is available.
CE Certifacate
About Us:
One of the leaders which manufacturing kinds of Universal Testing Machines .
Profesional technology and high quality !
The most comprehensive technical guidance and after-sales service !
The biggest manufacturer is in China, the top quality is in China, the best service is also in China !
Please believe Hengsgrand, believe China Power !
We sincerely look forward to cooperation with you !
Look forward to your email!
Don't hesitate :
Contacts: Sunny
whatsapp: +8615589960023
Skype:jessica-hssd
