Specifications
1.usage:spring torsion test3.manual control
4.digital display
5.with CE

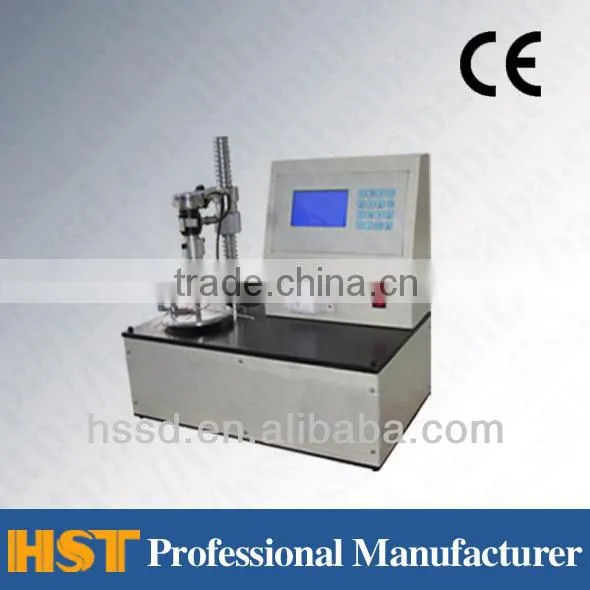

TNS digital display torsion spring testing machine
Main Application
TNS series vertical manual torsion spring testing machine applies to twist spring, spring, elastic elements of rotor rolls and friction of the torsional horn, the test of torsional moment. It is the ideal testing equipment of industrial and mining enterprises, the technical supervision, inspection arbitration, scientific research institutes, universities and quality inspection unit and other departments.
Main Specs:
Model |
TNS-50 |
TNS-100 |
TNS-200 |
TNS-500 |
TNS-1000 |
TNS-2000 |
TNS-5000 |
Max Test force |
50 Nmm |
100 Nmm |
200 Nmm |
500 Nmm |
1000 Nmm |
2000 Nmm |
5000 Nmm |
Test range |
2%-100% |
||||||
Test machine class |
1 class |
||||||
Test force Min reading value |
0.001 Nmm |
0.01 Nmm |
0.1 Nmm |
||||
Angle min reading value |
0.1° |
||||||
Torque indicate relative error |
≤ ±1% |
||||||
Spring test length |
0-70mm/ 0-160mm /0-260mm |
||||||
Test angle range |
0-±9999.9 |
||||||
Torque dish diam |
100mm |
180mm |
|||||
Loading method |
Manual Loading |
||||||
Power supply |
AC 220V/50Hz |
||||||
Spring Tester:
CE Certificate:
