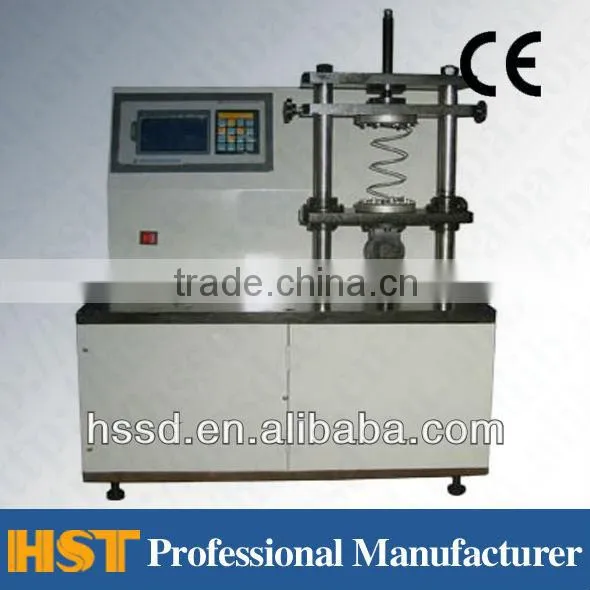

1kn, 2kn, 3kn Spring Fatigue Test Machine/ Spring Fatigue Tester

Name: 1kn, 2kn, 3kn Spring Fatigue Test Machine/ Spring Fatigue Tester
Brand: hensgrand
SKU: 126940119

US$ 1,999 - 3,999 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

hensgrand

Model Number:

TPJ

Jinan Hensgrand Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name hensgrand

Model Number TPJ

Power Electronic

Usage Other, Spring fatigue testing

Specifications

1. Spring fatigue life testing machine
2. Max test force: 1kn, 2kn, 3kn
3. Test spring numbers can customize
4. CE certificat

1kn, 2kn, 3kn Spring Fatigue Testing Machine

1. Usage

Spring Fatigue Testing Machine is mainly used to test the fatigue performance of various torsion springs.

2. Features

1) the torsion angle and frequency are adjustable;

2) the machine will stop automatically when reaching the preset testing times;

3) full digital display of the times, frequency;

4) easy operation, smooth running, safe and reliable.

3. Main technical parameters

Model	TPL-A
Max. testing force	1kN/2kN/3kN
Max. length of samples	200mm
Max. external diameter of samples	Dia 100mm
Testing frequency	0-5Hz
Amplitude	Max.:50mm or 100mm
Counter capacity	999999999
Testing station	Depending on the size and force of spring
Power supply	220VAC 50Hz
Motor output torque	12Nm, 40Nm
Count-stop accuracy	1
Dimension	800 x 500 x 450mm
Weight	150kg
Protect function	Double protection of mechanical, procedure
