Specifications
spring fatigue test machine1.spring fatigue test machine
2.digital display
3.high quality ,hot-selling

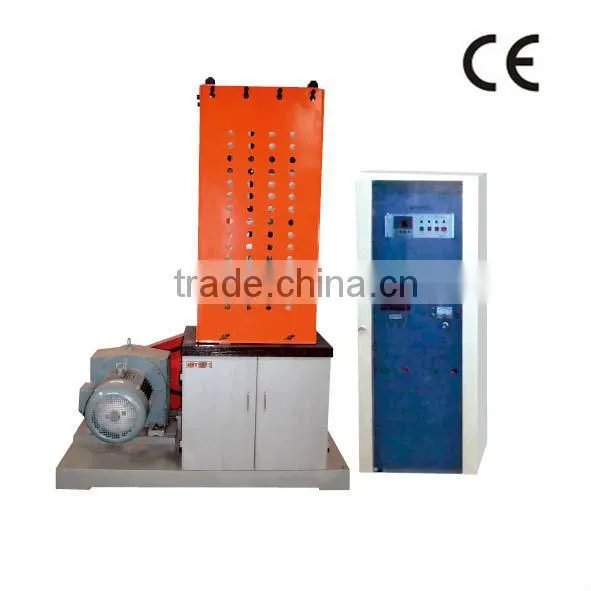

TPJ series Large-scale spring fatigue testing machine
Application:
This machine is mainly used for various spiral spring, disc springs and shock absorbers, seal springs, and the fatigue life of test. Widely used in spring, shock absorber production, application, etc.
Main features:
1.According to the technical requirements of the spring, adjust the amplitude and frequency of spring
2.LCD,testing time and frequency according to requirements can be input program,finished testing automatically.
3.Preset testing time ,automatic stop
4.easy operation,working stability.
Technical parameters:
Model |
TPJ-5,TPJ-10,TPJ-20 |
Max testing force |
5 KN,10KN,20KN |
Max sample length |
400mm |
Mas sample diam |
Φ300mm |
Testing frequency |
0~5Hz |
Amplitude |
Max:100mm |
Counter capacity |
999999999 |
Working voltage |
220VAC/50Hz |
Power |
10kW |
