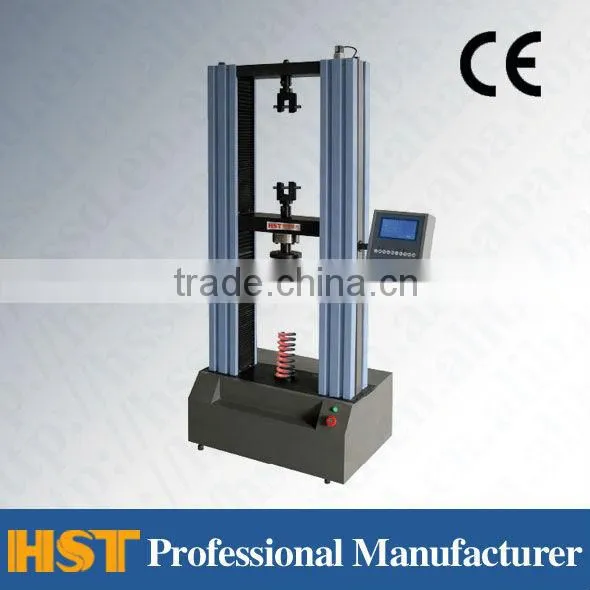

TLS digital display spring testing machine
Application:
spring tension and compression testing machine, which is a special device for spring test and it is manufactured in terms of technical requirements stipulated in JB/T7796-2005 <Technical Conditions for Spring Tension and Compression Testing Machine>. It is mainly used for testing spring test force and strength of elastic element, namely in a certain deformation (or remaining highness) testing the spring force or testing spring remaining highness or deformation under certain test force. With test force showed, speed setting, batch test set and other functions. Meanwhile, it also has limit protection and overload protection and other functions.
Main specification:
Model |
TLS |
Max testng force |
10KN,20KN,50 KN |
Testing force range |
2%-100% |
accuracy |
±1% |
Displacement resolution |
0.01mm |
Displacement mesure accuracy |
± 1% |
Tesnsile space |
700mm or more |
Compression space |
700mm or more |
Testing space |
700mm |
Add load speed |
0.05mm~500mm |
Displacement speed control accuracy |
± 1% |
Tester level |
1 calss |
Deformation indicating error |
≤±( 50+0.15L) |
Power supply |
220V/50HZ |
