Specifications
1.usage:spring tensile,compression,deformation test2. computer auto control testing process
3. computer data analysis
4. CE

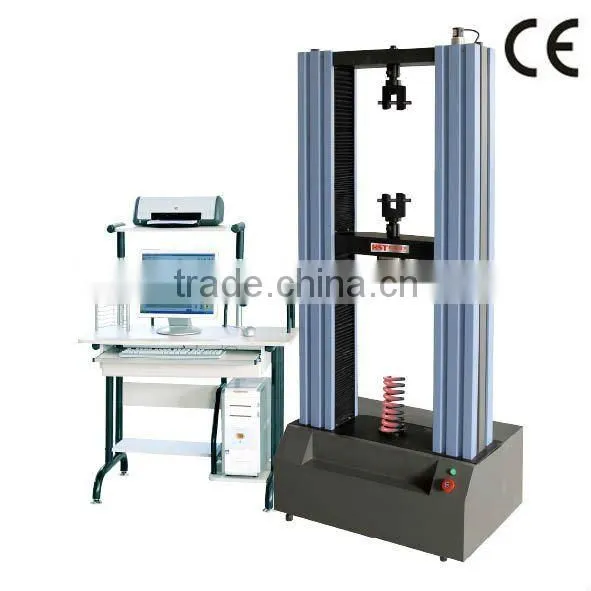

TLW computer control spring testing machine
Application:
This machine mainly used for tension spring,compression spring, saucer reed,tower spring,leaf spring,clip spring,flat spring,composite spring,gas spring,mould spring,deformed spring and other precision spring tensile,compression,displacement and rigidity test and analysis.
Main specification:
Model |
TLW-II-2 |
TLW-II-10 |
TLW-II-50 |
|
Max testing force |
2KN |
10KN |
50KN |
|
Display Range |
0-2KN |
0-10KN |
0-50KN |
|
Test force resoluation |
0.1N |
0.5N |
1N |
|
Accurate measurement range |
2%-100%FS |
|||
Test force accuracy |
±1% |
|||
Displacement resolution |
0.01mm |
|||
Loadind speed(mm/min) |
0.05~500 |
|||
Displacement speed accuray |
± 1%; |
|||
Deformation indicating error |
50±0.01 mm |
|||
Effective tensile space |
>650(mm) |
|||
Effective compression space |
>650(mm) |
|||
Compression plate diameter |
200mm |
|||
Max travel distance |
750mm |
|||
Power supply |
220V/50HZ |
|||
Machine size(L*W*H)(mm) |
700×370×1780 |
750×540×1820 |
||
Weight (kg) |
330 |
480 |
||
Main features:
1.Adopt LSI circuit,improving the testing accuray.
2.Spring testing special program,designed according to the national standard,high efficiency
full function,easy operation.
3.Optimize from both mechanical design and program software,increase the measurement scope.
4.Suitable for spring batch testing, sorting lines, also suitable for precision sampling of
laboratory samples
5.Data and curves dynamic display with experimental process
6.Can re-analysis of curves, can enlarge, shrink and click to see the corresponding data on the datacurve
7.You can print the curve and other data of force value, deformation and stiffness like standard test
report.
8.With mechnical and program control Two level limit protect function
