Home > Instruments & Meters > Test Instrument > Test Machine > TLS Series Test Force 200kN Digital Display Electronic Spring Tension Testing Machine

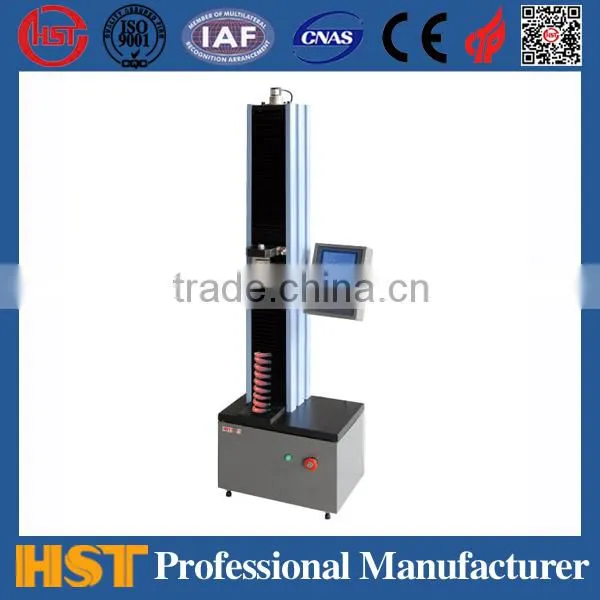

TLS Series Test Force 200kN Digital Display Electronic Spring Tension Testing Machine

TLS Series Test Force 200kN Digital Display Electronic Spring Tension Testing Machine photo-1

TLS Series Test Force 200kN Digital Display Electronic Spring Tension Testing Machine photo-2

US$ 3,000 - 4,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

HST

Model Number:

TLS-02

Contact Supplier Request Quote Chat Now

Jinan Hensgrand Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao or other port you request

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name HST

Model Number TLS-02

Power Electronic

Usage Leather Testing Instrument

TLS Digital Display Spring Testing Machine

Contact: jessica Skype: jessica-hssd

Application:

Adopting electric load reduction system after deceleration to driven precision ball screw assembly loading to achieve a fully digital adjustment data acquisition and control process It is made based on the national spring tensile and compression tester standards of technical requirement, professional design of automatic control and data acquisition system, realized the data acquisition and control process full digital adjustment. Mainly used to tension spring,compression spring, saucer reed, tower spring,leaf spring,clip spring,flat spring,composite spring,gas spring, mold spring, deformed spring and other precision spring tensile, compression, displacement and rigidity test and analysis.

Main specification:

Model

TLS-

005

TLS-

Max test force(N)	50	100	200	500	1000	2000	3000	5000
Structure	Single column, double spaces(lower tensile,upper compression)
Control method	Single chip control
Test accuracy	1 class
Test force test arrange (F·S)	2%~100%F·S
Test force value relative error	≤±1%
Displacement value relative error	≤±1%
Displacement resolution	0.01mm
Deformation value relative error	≤±(50+0.15L)um
Speed adjust range	0.05-500mm/min(stepless speed regulating)
Speed relative error	≤±1%
Effective tensile space	Standard: 600mm Heighten: 850mm
Effective compression space	Standard: 600mm Heighten:850mm
Pressure plate size	110mm
Upper and lower platen parallelism	≤0.05mm
Power supply	AC220V±10%,50Hz
Dimension	550×400×1600mm
Weight	About 100kg

Main Features:

1. Automatic calibration: system can automatically realize the accuracy of the calibration value

2. Automatic stop: After the sample broken, the moving beam automatic stop.

3. Automatic display: Real-time display two kinds curves: spring testing force and height, test force and deformation

4. One point or multi-point test: can preset standard values, upper and lower deviation, automatically determine whether spring qualified, lower or higher than the standard value of the standard value;

5. Measurements can be segmented, and can be calculated each segment stiffness (elastic coefficient) K, and the average stiffness;

6. Automatic return: beam automatic return to initial position when testing finished.

7. Breakage judgment: sample after fracture,beam automatic stop moving

8. Limiting protection: Program control and Mechanical limiting protection.

9. Overload protection: When more than 3 ~ 5% of the rated load device automatically stop working

Configuration:

1.Single column double space high strength main unit	1set
1.1 Precision arc synchronized deceleration system	1set
1.2.Taiwan ABBA high precision ball screw assembly	1set
1.3.Special Tensile grip	1set
1.4.Special compression grip	1set
2. Test and control system	1set
2.1 High precision optical encoder	1 pc
2.2 Digital speed control system	1 pc
2.3 A full digital speed regulating motor	1 set
2.4 High precision load sensor	1 pc
2.5 Special test control system	1 set
2.6 Mini printer (optional)	1 pc
3 . Instruction book	1 pc
4.Certification	1 pc
5.Packaging list	1 pc
